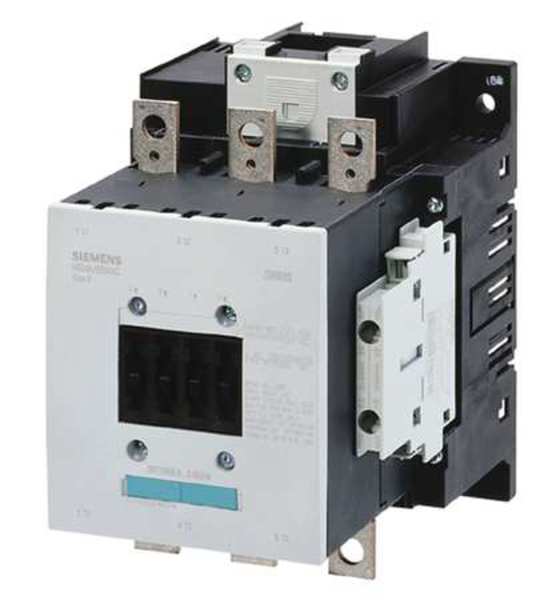

IEC Magnetic Contactor, 3 Poles, 23 to 26 V AC/DC, 150 A, Reversing: No

SKU
Brand Siemens
Categories
Description IEC Magnetic Contactor, Auxiliary Contact Form 2NO/2NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 23-26V AC/DC, Number of Poles 3, Full Load Current - Inductive 150 A, Full Load Current - Resistive 185 A, Reversing Capability Non-Reversing, Overall Height 6.77 in, Overall Width 0.47 in, Terminal Connection Type Screw Terminals, Frame Size S6, Mounting Style Surface, Series SIRIUS 3RT Safety Contactors, Number of Auxillary Contacts 4, Contactor Style IEC
graingerSKU: 13Y645, mscSKU: , zoro_no: G4319533, mongo_id: 65bbea4122d7a989a99a2fa1

Web Price

$1,212.49 / each

Product Details

Action Non-Reversing

Aux. Contact Configuration 2NO/2NC

Auxiliary Contact Form 2NO/2NC

Coil Voltage 23-26V AC/DC

Coil Volts 23 to 26 V AC/DC

Contactor Style IEC

Country of Origin (subject to change) Germany

Depth 6.69 in

Electrical Connection Connecting Rail

Embedded Surge Suppressor No

Enclosure NEMA Rating No Enclosure

Frame / Series / Class / Code S6

Frame Size S6

Full Load Amps-Inductive 150 A

Full Load Amps-Resistive 185 A

Full Load Current - Inductive 150 A

Full Load Current - Resistive 185 A

Height 4.72 in

Horsepower @ Single Phase - 240V AC 30 hp

Horsepower @ Three Phase - 208V AC 50 hp

Horsepower @ Three Phase - 240V AC 60 hp

Horsepower @ Three Phase - 480V AC 125 hp

Horsepower @ Three Phase - 600V AC 150 hp

HP @ 1 Phase - 230V 30

HP @ 1 Phase - 240V 30 hp

HP @ 3 Phase - 208V 50 hp

HP @ 3 Phase - 240V 60 hp

HP @ 3 Phase - 480V 125 hp

HP @ 3 Phase - 575V 150 hp

Hz_ 50/60

Includes Permanent Mounted Aux Contact

Includes Auxiliary Contacts Yes

IP Rating Not Applicable

Max. Operating Watts 75 kW (at 400V, AC-4), 75 kW (at 400V, AC-3), 105 kW (at 400V, AC-1)

Maximum Voltage Rating 1000V AC

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -13 Degrees F

Mounting Hole Diameter 0.36 in

Mounting Hole Distance - Height 5.12 in

Mounting Hole Distance - Width 3.94 in

Mounting Postion Vertical

Mounting Style Surface

NEMA Enclosure Material Not Applicable

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Number of Auxillary Contacts 4

Number of Normally Open Main Contacts 3

Number of Poles 3

Overall Depth 6.69 in

Overall Height 6.77 in

Overall Width 0.47 in

Package Quantity 1

Phase Three

Response Time 100 to 120 msec (Closing Time - at Us min ... Us Max), 80 to 90 msec (Opening Time - at 0.8 ÃÂ Us min ... 1.1 ÃÂ Us Max), 80 to 90 msec (Opening Time - at Us min ... Us Max), 95 to 135 msec (Closing Time - at 0.8 ÃÂ Us min ... 1.1 ÃÂ Us Max)

Reversing No

Reversing Capability Non-Reversing

Series SIRIUS 3RT Safety Contactors

Standards REACH Art 33, WEEE (2012/19/EU)

Terminal Connection Type Screw Terminals

Watts Loss 9W (Current Dependent); 5.2W (Current Independent)

Width 4.72 in
