Home / IEC Magnetic Contactor, 3 Poles, 23 to 26 V AC/DC, 185 A, Reversing: No

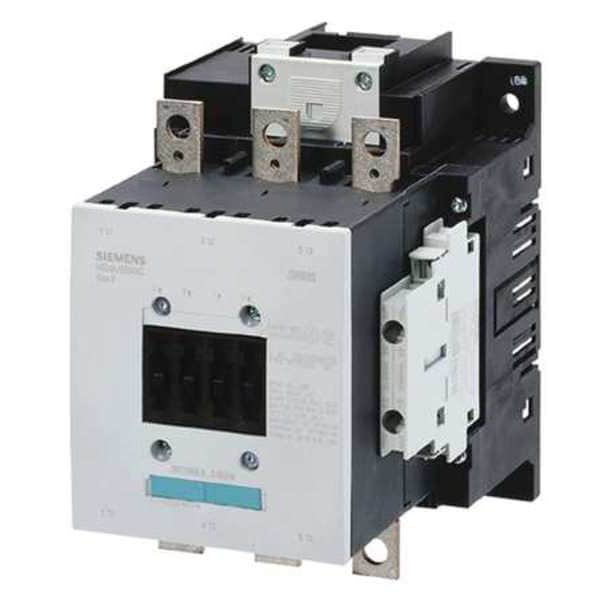

IEC Magnetic Contactor, 3 Poles, 23 to 26 V AC/DC, 185 A, Reversing: No

SKU
Brand Siemens
Categories
Description IEC Magnetic Contactor, Auxiliary Contact Form 2NO/2NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 23-26V AC/DC, Number of Poles 3, Full Load Current - Inductive 185 A, Full Load Current - Resistive 215 A, Reversing Capability Non-Reversing, Overall Height 6.77 in, Overall Width 0.47 in, Terminal Connection Type Screw Terminals, Frame Size S6, Mounting Style Surface, Series SIRIUS 3RT10, Number of Auxillary Contacts 4, Contactor Style IEC
graingerSKU: 13Y647, mscSKU: , zoro_no: G4319551, mongo_id: 65bbe6ac3aaddbd5a9046784

Web Price

$1,557.49 / each

Product Details

Action Non-Reversing

Aux. Contact Configuration 2NO/2NC

Auxiliary Contact Form 2NO/2NC

Coil Voltage 23-26V AC/DC

Coil Volts 23 to 26 V AC/DC

Contactor Style IEC

Country of Origin (subject to change) Germany

Depth 6.69 in

Electrical Connection Connecting Rail

Embedded Surge Suppressor No

Enclosure NEMA Rating No Enclosure

Frame / Series / Class / Code S6

Frame Size S6

Full Load Amps-Inductive 185 A

Full Load Amps-Resistive 215 A

Full Load Current - Inductive 185 A

Full Load Current - Resistive 215 A

Height 4.72 in

Horsepower @ Single Phase - 240V AC 30 hp

Horsepower @ Three Phase - 208V AC 60 hp

Horsepower @ Three Phase - 240V AC 75 hp

Horsepower @ Three Phase - 480V AC 150 hp

Horsepower @ Three Phase - 600V AC 200 hp

HP @ 1 Phase - 230V 30

HP @ 1 Phase - 240V 30 hp

HP @ 3 Phase - 208V 60 hp

HP @ 3 Phase - 240V 75 hp

HP @ 3 Phase - 480V 150 hp

HP @ 3 Phase - 575V 200 hp

Hz_ 50/60

Includes Auxiliary Contacts Yes

IP Rating Not Applicable

Max. Operating Watts 90 kW (at 400V, AC-4), 90 kW (at 400V, AC-3), 121 kW (at 400V, AC-1)

Maximum Voltage Rating 1000V AC

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -13 Degrees F

Mounting Hole Diameter 0.36 in

Mounting Hole Distance - Height 5.12 in

Mounting Hole Distance - Width 3.94 in

Mounting Postion Vertical

Mounting Style Surface

NEMA Enclosure Material Not Applicable

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Number of Auxillary Contacts 4

Number of Normally Open Main Contacts 3

Number of Poles 3

Overall Depth 6.69 in

Overall Height 6.77 in

Overall Width 0.47 in

Package Quantity 1

Phase Three

Response Time 35 to 75 msec (Closing Time - at 0.8 ÃÂ Us min ... 1.1 ÃÂ Us Max), 40 to 60 msec (Closing Time - at Us min ... Us Max), 80 to 90 msec (Opening Time - at 0.8 ÃÂ Us min ... 1.1 ÃÂ Us Max), 80 to 90 msec (Opening Time - at Us min ... Us Max)

Reversing No

Reversing Capability Non-Reversing

Series SIRIUS 3RT10

Standards REACH Art 33, WEEE (2012/19/EU)

Terminal Connection Type Screw Terminals

Watts Loss 13W (Current Dependent); 5.2W (Current Independent)

Width 4.72 in
