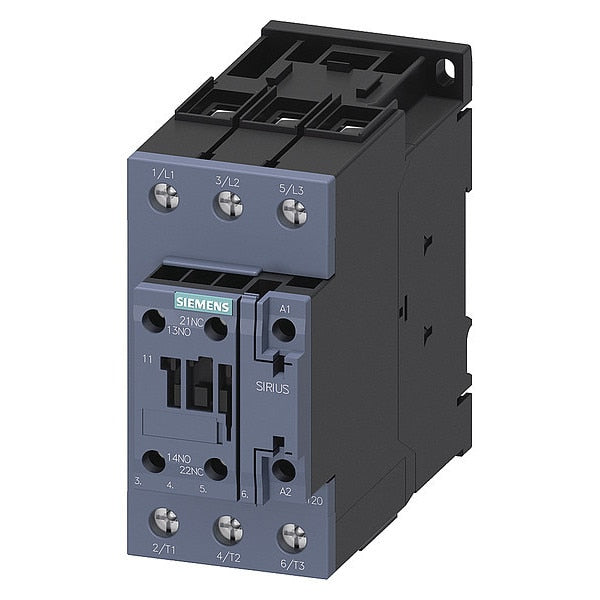

IEC Magnetic Contactor, 3 Poles, 24 V AC, 52 A, Reversing: No

SKU
Brand Siemens
Categories
Description IEC Magnetic Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V AC, Number of Poles 3, Full Load Current - Inductive 51 A, Full Load Current - Resistive 70 A, Reversing Capability Non-Reversing, Overall Height 5.59 in, Overall Width 2.44 in, Terminal Connection Type Screw Terminals, Frame Size S2, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT20, Number of Auxillary Contacts 2, Contactor Style IEC
graingerSKU: 499J79, mscSKU: , zoro_no: G4376987, mongo_id: 65bbea6522d7a989a99b153d

Web Price

$299.99 / each

Qty

Product Details

Aux. Contact Configuration 1NO/1NC

Auxiliary Contact Form 1NO/1NC

Coil Voltage 24V AC

Coil Volts 24 V AC

Contactor Style IEC

Country of Origin (subject to change) Germany

Depth 5.12 in

Electrical Connection Screws

Embedded Surge Suppressor No

Enclosure NEMA Rating No Enclosure

Frame / Series / Class / Code S2

Frame Size S2

Frequency 50/60 Hz

Full Load Amps-Inductive 52 A

Full Load Amps-Resistive 70 A

Full Load Current - Inductive 51 A

Full Load Current - Resistive 70 A

Height 4.49 in

Horsepower @ Single Phase - 120V AC 3 hp

Horsepower @ Single Phase - 240V AC 10 hp

Horsepower @ Three Phase - 208V AC 15 hp

Horsepower @ Three Phase - 240V AC 15 hp

Horsepower @ Three Phase - 480V AC 40 hp

Horsepower @ Three Phase - 600V AC 50 hp

HP @ 1 Phase - 120V 3 hp

HP @ 1 Phase - 240V 10 hp

HP @ 3 Phase - 208V 15 hp

HP @ 3 Phase - 240V 15 hp

HP @ 3 Phase - 480V 40 hp

HP @ 3 Phase - 575V 50 hp

Hz_ 50/60

Includes Auxiliary Contacts Yes

IP Rating IP20

Max. Operating Watts 22 kW (at 400V, AC-3), 46 kW (at 400V, AC-1)

Maximum Operating Temperature 140 Degrees F

Maximum Voltage Rating 690V AC

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -13 Degrees F

Mounting Hole Diameter 0.2 in

Mounting Hole Distance - Height 3.84 in

Mounting Hole Distance - Width 1.77 in

Mounting Postion Vertical

Mounting Style DIN Rail, Surface

NEMA Enclosure Material Not Applicable

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Number of Auxillary Contacts 2

Number of Normally Open Main Contacts 3

Number of Poles 3

Overall Depth 4.82 in

Overall Height 5.59 in

Overall Width 2.44 in

Package Quantity 1

Phase Three

Response Time 10 to 18 msec (AC Operation Opening Delay Operating Times for 0.8 ... 1.1 x Us1), 10 to 18 msec (AC Operation Opening Delay Operating Times for 1.0 x Us1), 10 to 80 msec (AC Operation Closing Delay Operating Times for 0.8 ... 1.1 x Us1), 12 to 22 msec (AC Operation Closing Delay Operating Times for 1.0 x Us1)

Reversing No

Reversing Capability Non-Reversing

Series SIRIUS 3RT20

Standards REACH Art 33, WEEE (2012/19/EU)

Terminal Connection Type Screw Terminals

Watts Loss 4W (Current Dependent); 17.2W (Current Independent)

Width 2.17 in
