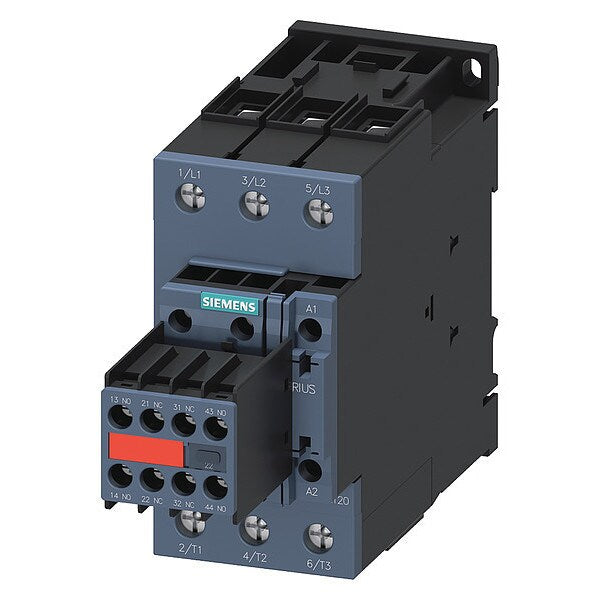

IEC Magnetic Contactor, 3 Poles, 24 V DC, 40 A, Reversing: No

SKU
Brand Siemens
Categories
Description IEC Magnetic Contactor, Auxiliary Contact Form 2NO/2NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V DC, Number of Poles 3, Full Load Current - Inductive 41 A, Full Load Current - Resistive 60 A, Reversing Capability Non-Reversing, Overall Height 7.85 in, Overall Width 5 in, Terminal Connection Type Screw Terminals, Frame Size S2, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT Safety Contactors, Number of Auxillary Contacts 4, Contactor Style IEC
graingerSKU: 499J78, mscSKU: , zoro_no: G2132665, mongo_id: 65bbe8c222d7a989a99136be

Web Price

$417.49 / each

Qty

Product Details

Aux. Contact Configuration 2NO/2NC

Auxiliary Contact Form 2NO/2NC

Coil Voltage 24V DC

Coil Volts 24 V DC

Contactor Style IEC

Country of Origin (subject to change) Germany

Depth 6.85 in

Electrical Connection Screws

Embedded Surge Suppressor Yes

Enclosure NEMA Rating No Enclosure

Frame / Series / Class / Code S2

Frame Size S2

Full Load Amps-Inductive 40 A

Full Load Amps-Resistive 60 A

Full Load Current - Inductive 41 A

Full Load Current - Resistive 60 A

Height 4.49 in

Horsepower @ Single Phase - 120V AC 3 hp

Horsepower @ Single Phase - 240V AC 7 1/2 hp

Horsepower @ Three Phase - 208V AC 10 hp

Horsepower @ Three Phase - 240V AC 15 hp

Horsepower @ Three Phase - 480V AC 30 hp

Horsepower @ Three Phase - 600V AC 40 hp

HP @ 1 Phase - 120V 3 hp

HP @ 1 Phase - 240V 7 1/2 hp

HP @ 3 Phase - 208V 10 hp

HP @ 3 Phase - 240V 15 hp

HP @ 3 Phase - 480V 30 hp

HP @ 3 Phase - 575V 40 hp

Includes Auxiliary Contacts Yes

IP Rating IP20

Max. Operating Watts 19 kW (at 400V, AC-3), 39 kW (at 400V, AC-1)

Maximum Operating Temperature 140 Degrees F

Maximum Voltage Rating 690V AC

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -13 Degrees F

Mounting Hole Diameter 0.2 in

Mounting Hole Distance - Height 3.84 in

Mounting Hole Distance - Width 1.77 in

Mounting Postion Vertical

Mounting Style DIN Rail, Surface

NEMA Enclosure Material Not Applicable

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Number of Auxillary Contacts 4

Number of Normally Open Main Contacts 3

Number of Poles 3

Overall Depth 6.5 in

Overall Height 7.85 in

Overall Width 5 in

Package Quantity 1

Phase Three

Response Time 10 to 18 msec (AC Operation Opening Delay Operating Times for 0.8 ... 1.1 x Us1), 10 to 18 msec (AC Operation Opening Delay Operating Times for 1.0 x Us1), 10 to 80 msec (AC Operation Closing Delay Operating Times for 0.8 ... 1.1 x Us1), 12 to 22 msec (AC Operation Closing Delay Operating Times for 1.0 x Us1)

Reversing No

Reversing Capability Non-Reversing

Series SIRIUS 3RT Safety Contactors

Special Features Varistor Surge Suppression

Standards REACH Art 33, WEEE (2012/19/EU)

Terminal Connection Type Screw Terminals

Watts Loss 2.2W (Current Dependent); 1W (Current Independent)

Width 2.17 in
