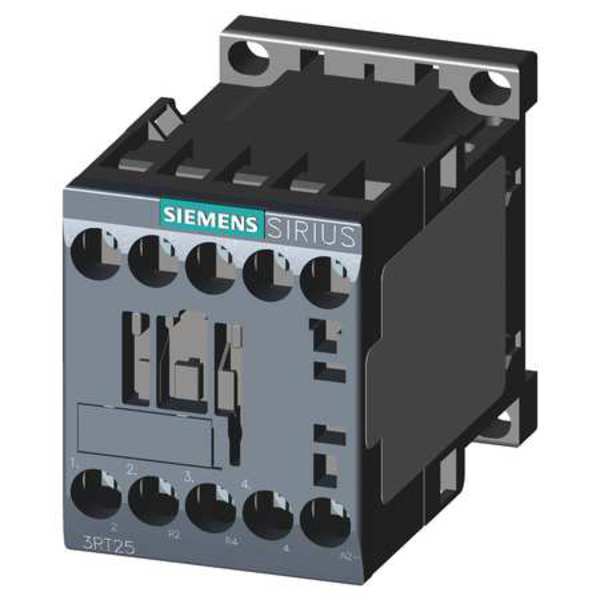

IEC Magnetic Contactor, 4 Poles, 24 V DC, 9 A, Reversing: No

SKU
Brand Siemens
Categories
Description IEC Magnetic Contactor, Auxiliary Contact Form Auxiliary Contacts Not Included, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V DC, Number of Poles 4, Full Load Current - Inductive 9 A, Full Load Current - Resistive 18 A, Reversing Capability Non-Reversing, Overall Height 1.95 in, Overall Width 3.5 in, Terminal Connection Type Screw Terminals, Frame Size S00, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT25, Number of Auxillary Contacts 0, Contactor Style IEC
graingerSKU: 13A102, mscSKU: , zoro_no: G4322552, mongo_id: 65bbe5983aaddbd5a9fd3ab6

Web Price

$121.99 / each

Product Details

Action Non-Reversing

Auxiliary Contact Form Auxiliary Contacts Not Included

Coil Voltage 24V DC

Coil Volts 24 V DC

Contactor Style IEC

Country of Origin (subject to change) Germany

Depth 2.87 in

Electrical Connection Screws

Embedded Surge Suppressor No

Enclosure NEMA Rating No Enclosure

Frame / Series / Class / Code S00

Frame Size S00

Full Load Amps-Inductive 9 A

Full Load Amps-Resistive 16 A

Full Load Current - Inductive 9 A

Full Load Current - Resistive 18 A

Height 1.77 in

Horsepower @ Single Phase - 120V AC 1/3 hp

Horsepower @ Single Phase - 240V AC 1 hp

Horsepower @ Three Phase - 240V AC 3 hp

Horsepower @ Three Phase - 480V AC 5 hp

HP @ 1 Phase - 120V 1/3 hp

HP @ 1 Phase - 230V 1

HP @ 1 Phase - 240V 1 hp

HP @ 3 Phase - 240V 3 hp

HP @ 3 Phase - 480V 5 hp

Includes S00 Frame

Includes Auxiliary Contacts No

IP Rating IP20

Max. Operating Watts 11 kW (at 400V, AC-4), 4 kW (at 400V, AC-3), 11 kW (at 400V, AC-1)

Maximum Operating Temperature 140 Degrees F

Maximum Voltage Rating 400V

Mechanical Operating Durability 30,000,000

Minimum Operating Temperature -13 Degrees F

Mounting Hole Diameter 0.2 in

Mounting Hole Distance - Height 1.97 in

Mounting Hole Distance - Width 1.38 in

Mounting Postion Vertical

Mounting Style DIN Rail, Surface

NEMA Enclosure Material Not Applicable

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Number of Auxillary Contacts 0

Number of Normally Closed Main Contacts 2

Number of Normally Open Main Contacts 2

Number of Poles 4

Overall Depth 3 in

Overall Height 1.95 in

Overall Width 3.5 in

Package Quantity 1

Phase 3

Reversing No

Reversing Capability Non-Reversing

Series SIRIUS 3RT25

Special Features Main Contact Configuration 2NC/2NO

Standards eClass Ver. 12 Class. 27-37-10-03, eClass Ver. 6 Class. 27-37-10-03, eClass Ver. 7.1 Class. 27-37-10-03, eClass Ver. 8 Class. 27-37-10-03, eClass Ver. 9 Class. 27-37-10-03, eClass Ver. 9.1 Class. 27-37-10-03, ETIM ver. 7 Class. EC000066, ETIM Ver. 8 Class. EC000066, IDEA Ver. 4 Class 4755, REACH Art 33, UNSPSC Ver. 15 Class. 39-12-15-29, WEEE (2012/19/EU)

Terminal Connection Type Screw Terminals

Width 1.77 in
