Home / IEC PowerContactor, Non-Reversing, 24VAC

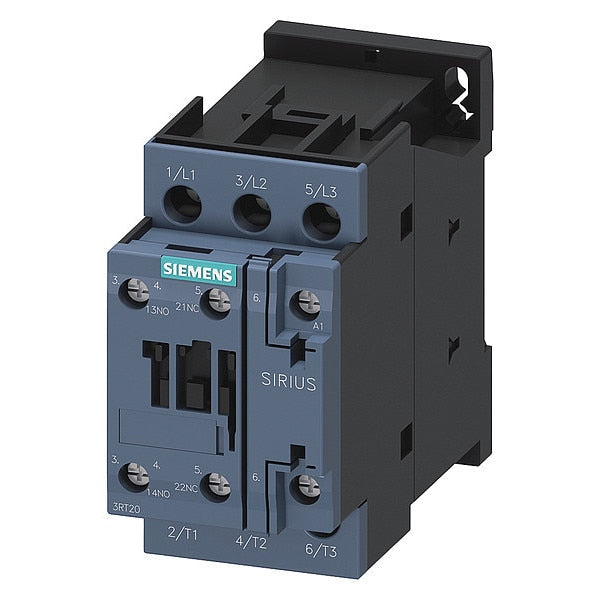

IEC PowerContactor, Non-Reversing, 24VAC

SKU
Brand Siemens
Categories
Description IEC Power Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V AC, Number of Poles 3, Full Load Current - Inductive 9 A, Full Load Current - Resistive 40 A, Reversing Capability Non-Reversing, Overall Height 2.15 in, Overall Width 4.85 in, Terminal Connection Type Screw Terminals, Frame Size S0, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT20, Number of Auxillary Contacts 2, Contactor Style IEC

Web Price

$119.74 / each

Qty

Product Details

Aux. Contact Configuration 1NO/1NC

Auxiliary Contact Form 1NO/1NC

Coil Voltage 24V AC

Coil Volts 24 V AC

Connection type Screw connection

Contactor Style IEC

Country of Origin (subject to change) Germany

Depth 97 mm

Embedded Surge Suppressor No

Frame / Series / Class / Code S0

Frame Size S0

Frequency 50/60 Hz

Full Load Amps-Inductive 9 A

Full Load Amps-Resistive 40 A

Full Load Current - Inductive 9 A

Full Load Current - Resistive 40 A

Height 85 mm

Horsepower @ Single Phase - 120V AC 1 hp

Horsepower @ Single Phase - 240V AC 1 hp

Horsepower @ Three Phase - 208V AC 2 hp

Horsepower @ Three Phase - 240V AC 3 hp

Horsepower @ Three Phase - 480V AC 5 hp

Horsepower @ Three Phase - 600V AC 7 1/2 hp

HP @ 1 Phase - 120V 1 hp

HP @ 1 Phase - 240V 1 hp

HP @ 3 Phase - 208V 2 hp

HP @ 3 Phase - 240V 3 hp

HP @ 3 Phase - 480V 5 hp

HP @ 3 Phase - 575V 7 1/2 hp

Hz_ 50/60

Includes Auxiliary Contacts Yes

IP Rating IP20

max. rated AC voltage for controls (60 Hz) 24 volt

Max. rated AC voltage for controls, 50 Hz 24 volt

Maximum Operating Temperature 140 Degrees F

Maximum Voltage Rating 690V AC

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -13 Degrees F

Mounting Hole Diameter 0.19 in

Mounting Hole Distance - Height 2.36 in

Mounting Hole Distance - Width 1.38 in

Mounting Postion Vertical

Mounting Style DIN Rail, Surface

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Number of Auxillary Contacts 2

Number of making contacts and main contacts 3

Number of Normally Open Main Contacts 3

Number of Poles 3

Overall Depth 4.8 in

Overall Height 2.15 in

Overall Width 4.85 in

Package Quantity 1

Phase Three

Power loss per pole, current-dependent [PlIp] 0.2 watt

Power loss, static, current-independent [Pls] 7.9 watt

Rated current [In] for the power loss specification 9 ampere

Rated operating current Ie with AC-3, 400 V 9 ampere

Rated operating power with AC-3, 400 V 4 kilowatt

rated operational power AC-1 at 400 V 23 kilowatt

Response Time 10 to 18 msec (AC Operation Closing Delay Operation Opening Delay Operating Times for 1.0 x Us1), 15 to 17.5 msec (DC Operation Opening Delay Operating Times For 0.8 ... 1.1 X Us1), 16 to 17 msec (DC Operation Opening Delay Operating Times for 1.0 x Us), 4 to 16 msec (AC Operation Opening Delay Operating Times for 0.8 ... 1.1 X Us1), 4 to 16 msec (AC Operation Opening Delay Operating Times for 1.0 x Us), 50 to 170 msec (DC Operation Closing Delay Operating Times for 0.8 ... 1.1 X Us1), 55 to 80 msec (DC Operation Closing Delay Operating Times for 1.0 x Us), 9 to 38 msec (AC Operation Closing Delay)

Reversing Capability Non-Reversing

Series SIRIUS 3RT20

Standards REACH Art 33, WEEE (2012/19/EU)

suitable for series installation Yes

Terminal Connection Type Screw Terminals

Width 45 mm
