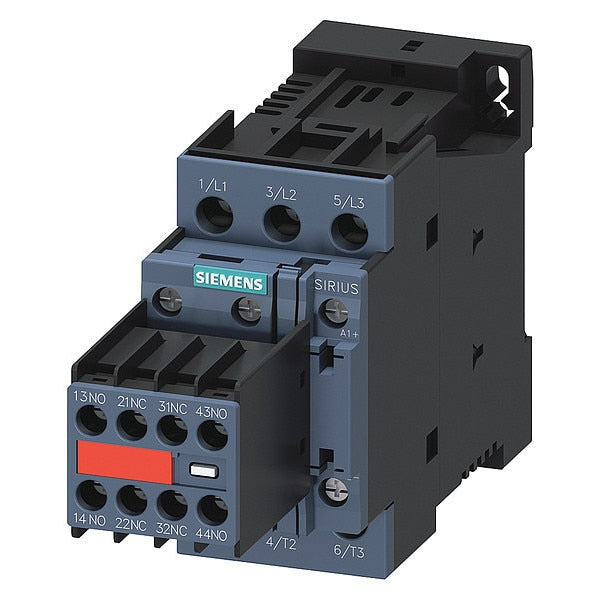

IEC PowerContactor, Non-Reversing, 24VDC

SKU
Brand Siemens
Categories
Description IEC Power Contactor, Auxiliary Contact Form 2NO/2NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V DC, Number of Poles 3, Full Load Current - Inductive 38 A, Full Load Current - Resistive 50 A, Reversing Capability Non-Reversing, Overall Height 6.26 in, Overall Width 2.13 in, Terminal Connection Type Screw Terminals, Frame Size S0, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT Safety Contactors, Number of Auxillary Contacts 4, Contactor Style IEC

Web Price

$671.24 / each

Qty

Product Details

Aux. Contact Configuration 2NO/2NC

Auxiliary Contact Form 2NO/2NC

Coil Voltage 24V DC

Coil Volts 24 V DC

Connection type Screw connection

Contactor Style IEC

Country of Origin (subject to change) Germany

Depth 151 mm

Embedded Surge Suppressor Yes

Frame / Series / Class / Code S0

Frame Size S0

Frequency 50/60 Hz

Full Load Amps-Inductive 38 A

Full Load Amps-Resistive 50 A

Full Load Current - Inductive 38 A

Full Load Current - Resistive 50 A

Height 85 mm

Horsepower @ Single Phase - 120V AC 3 hp

Horsepower @ Single Phase - 240V AC 5 hp

Horsepower @ Three Phase - 208V AC 10 hp

Horsepower @ Three Phase - 240V AC 10 hp

Horsepower @ Three Phase - 480V AC 25 hp

Horsepower @ Three Phase - 600V AC 25 hp

HP @ 1 Phase - 120V 3 hp

HP @ 1 Phase - 240V 5 hp

HP @ 3 Phase - 208V 10 hp

HP @ 3 Phase - 240V 10 hp

HP @ 3 Phase - 480V 25 hp

HP @ 3 Phase - 575V 25 hp

Hz_ 50/60

Includes Auxiliary Contacts Yes

IP Rating IP20

Maximum Operating Temperature 140 Degrees F

Maximum Voltage Rating 690V AC

Mechanical Operating Durability 10,000,000

min. rated control voltage Us with DC 24 volt

Minimum Operating Temperature -13 Degrees F

Mounting Hole Diameter 0.19 in

Mounting Hole Distance - Height 2.36 in

Mounting Hole Distance - Width 1.38 in

Mounting Postion Vertical

Mounting Style DIN Rail, Surface

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Number of Auxillary Contacts 4

Number of making contacts and main contacts 3

Number of Normally Open Main Contacts 3

Number of Poles 3

Overall Depth 3.63 in

Overall Height 6.26 in

Overall Width 2.13 in

Package Quantity 1

Phase Three

Power loss per pole, current-dependent [PlIp] 3.2 watt

Power loss, static, current-independent [Pls] 5.9 watt

Rated current [In] for the power loss specification 38 ampere

Rated operating current Ie with AC-3, 400 V 38 ampere

Rated operating power with AC-3, 400 V 19 kilowatt

rated operational power AC-1 at 400 V 28 kilowatt

Response Time 10 to 17 msec (AC Operation Closing Delay Operation Opening Delay Operating Times for 1.0 x Us1), 15 to 17.5 msec (DC Operation Opening Delay Operating Times For 0.8 ... 1.1 X Us1), 16 to 17 msec (DC Operation Opening Delay Operating Times for 1.0 x Us), 4 to 16 msec (AC Operation Opening Delay Operating Times for 0.8 ... 1.1 X Us1), 4 to 16 msec (AC Operation Opening Delay Operating Times for 1.0 x Us), 50 to 170 msec (DC Operation Closing Delay Operating Times for 0.8 ... 1.1 X Us1), 55 to 80 msec (DC Operation Closing Delay Operating Times for 1.0 x Us), 8 to 40 msec (AC Operation Closing Delay)

Reversing Capability Non-Reversing

Series SIRIUS 3RT Safety Contactors

Standards REACH Art 33, WEEE (2012/19/EU)

suitable for series installation Yes

Terminal Connection Type Screw Terminals

Width 45 mm
