Home / IECPowerContactor, Non-Reversing, 110VAC

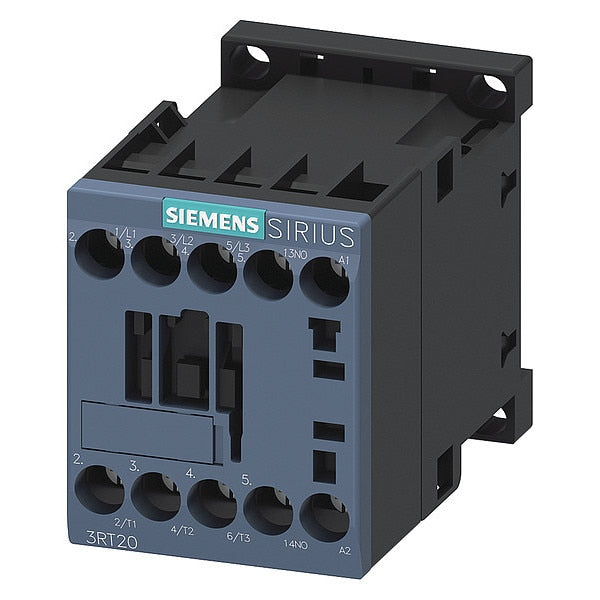

IECPowerContactor, Non-Reversing, 110VAC

SKU
Brand Siemens
Categories
Description IEC Power Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 110V AC, Number of Poles 3, Full Load Current - Inductive 12 A, Full Load Current - Resistive 22 A, Reversing Capability Non-Reversing, Overall Height 3.08 in, Overall Width 1.97 in, Terminal Connection Type Screw Terminals, Frame Size S00, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT20, Number of Auxillary Contacts 1, Contactor Style IEC

Web Price

$101.24 / each

Qty

Product Details

Aux. Contact Configuration 1NO

Auxiliary Contact Form 1NO

Coil Voltage 110V AC

Coil Volts 110 V AC

Connection type Screw connection

Contactor Style IEC

Country of Origin (subject to change) Germany

Depth 73 mm

Embedded Surge Suppressor No

Frame / Series / Class / Code S00

Frame Size S00

Frequency 50/60 Hz

Full Load Amps-Inductive 12 A

Full Load Amps-Resistive 22 A

Full Load Current - Inductive 12 A

Full Load Current - Resistive 22 A

Height 58 mm

Horsepower @ Single Phase - 120V AC 1/2 hp

Horsepower @ Single Phase - 240V AC 2 hp

Horsepower @ Three Phase - 208V AC 3 hp

Horsepower @ Three Phase - 240V AC 3 hp

Horsepower @ Three Phase - 480V AC 7 1/2 hp

Horsepower @ Three Phase - 600V AC 10 hp

HP @ 1 Phase - 120V 1/2 hp

HP @ 1 Phase - 240V 2 hp

HP @ 3 Phase - 208V 3 hp

HP @ 3 Phase - 240V 3 hp

HP @ 3 Phase - 480V 7 1/2 hp

HP @ 3 Phase - 575V 10 hp

Hz_ 50/60

Includes Auxiliary Contacts Yes

IP Rating IP20

max. rated AC voltage for controls (60 Hz) 110 volt

Max. rated AC voltage for controls, 50 Hz 110 volt

Maximum Operating Temperature 140 Degrees F

Maximum Voltage Rating 690V AC

Mechanical Operating Durability 30,000,000

Minimum Operating Temperature -13 Degrees F

Mounting Hole Diameter 0.2 in

Mounting Hole Distance - Height 1.97 in

Mounting Hole Distance - Width 1.38 in

Mounting Postion Vertical

Mounting Style DIN Rail, Surface

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Number of Auxillary Contacts 1

Number of making contacts and main contacts 3

Number of Normally Open Main Contacts 3

Number of Poles 3

Overall Depth 2.45 in

Overall Height 3.08 in

Overall Width 1.97 in

Package Quantity 1

Phase Three

Power loss per pole, current-dependent [PlIp] 0.5 watt

Power loss, static, current-independent [Pls] 5.7 watt

Rated current [In] for the power loss specification 12 ampere

Rated operating current Ie with AC-3, 400 V 12 ampere

Rated operating power with AC-3, 400 V 6 kilowatt

rated operational power AC-1 at 400 V 13 kilowatt

Response Time 10 to 17 msec (AC Operation Closing Delay Operation Opening Delay Operating Times for 1.0 x Us1), 15 to 17.5 msec (DC Operation Opening Delay Operating Times For 0.8 ... 1.1 X Us1), 16 to 17.5 msec (DC Operation Opening Delay Operating Times for 1.0 x Us), 4 to 16 msec (AC Operation Opening Delay Operating Times for 0.8 ... 1.1 X Us1), 4 to 16 msec (AC Operation Opening Delay Operating Times for 1.0 x Us), 50 to 170 msec (DC Operation Closing Delay Operating Times for 0.8 ... 1.1 X Us1), 55 to 80 msec (DC Operation Closing Delay Operating Times for 1.0 x Us), 8 to 40 msec (AC Operation Closing Delay)

Reversing Capability Non-Reversing

Series SIRIUS 3RT20

Standards REACH Art 33, WEEE (2012/19/EU)

suitable for series installation Yes

Terminal Connection Type Screw Terminals

Width 45 mm
