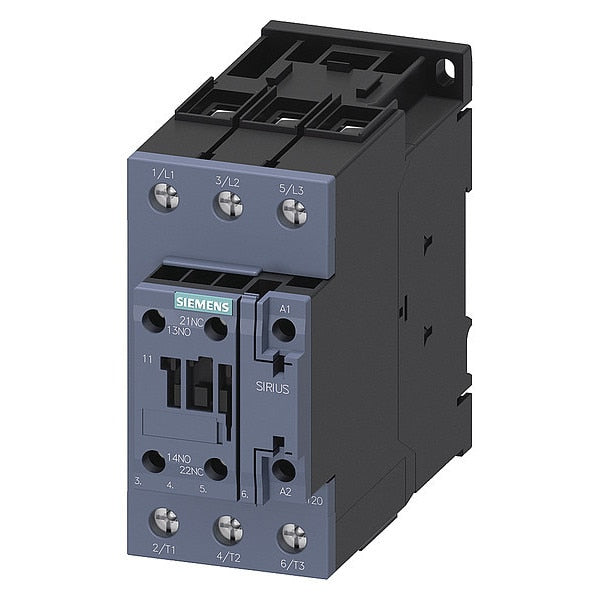

IECPowerContactor, Non-Reversing, 230VAC

SKU
Brand Siemens
Categories
Description IEC Power Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 230V AC, Number of Poles 3, Full Load Current - Inductive 41 A, Full Load Current - Resistive 60 A, Reversing Capability Non-Reversing, Overall Height 5.59 in, Overall Width 2.44 in, Terminal Connection Type Screw Terminals, Frame Size S2, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT20, Number of Auxillary Contacts 2, Contactor Style IEC

Web Price

$334.99 / each

Qty

Product Details

Aux. Contact Configuration 1NO/1NC

Auxiliary Contact Form 1NO/1NC

Coil Voltage 230V AC

Coil Volts 230 V AC

Connection type Screw connection

Contactor Style IEC

Country of Origin (subject to change) Germany

Depth 130 mm

Embedded Surge Suppressor No

Frame / Series / Class / Code S2

Frame Size S2

Frequency 50/60 Hz

Full Load Amps-Inductive 41 A

Full Load Amps-Resistive 60 A

Full Load Current - Inductive 41 A

Full Load Current - Resistive 60 A

Height 114 mm

Horsepower @ Single Phase - 120V AC 3 hp

Horsepower @ Single Phase - 240V AC 7 1/2 hp

Horsepower @ Three Phase - 208V AC 10 hp

Horsepower @ Three Phase - 240V AC 15 hp

Horsepower @ Three Phase - 480V AC 30 hp

Horsepower @ Three Phase - 600V AC 40 hp

HP @ 1 Phase - 120V 3 hp

HP @ 1 Phase - 240V 7 1/2 hp

HP @ 3 Phase - 208V 10 hp

HP @ 3 Phase - 240V 15 hp

HP @ 3 Phase - 480V 30 hp

HP @ 3 Phase - 575V 40 hp

Hz_ 50/60

Includes Auxiliary Contacts Yes

IP Rating IP20

max. rated AC voltage for controls (60 Hz) 230 volt

Max. rated AC voltage for controls, 50 Hz 230 volt

Maximum Operating Temperature 140 Degrees F

Maximum Voltage Rating 690V AC

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -13 Degrees F

Mounting Hole Diameter 0.2 in

Mounting Hole Distance - Height 3.84 in

Mounting Hole Distance - Width 1.77 in

Mounting Postion Vertical

Mounting Style DIN Rail, Surface

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Number of Auxillary Contacts 2

Number of making contacts and main contacts 3

Number of Normally Open Main Contacts 3

Number of Poles 3

Overall Depth 4.82 in

Overall Height 5.59 in

Overall Width 2.44 in

Package Quantity 1

Phase Three

Power loss per pole, current-dependent [PlIp] 2.2 watt

Power loss, static, current-independent [Pls] 17.2 watt

Rated current [In] for the power loss specification 41 ampere

Rated operating current Ie with AC-3, 400 V 41 ampere

Rated operating power with AC-3, 400 V 19 kilowatt

rated operational power AC-1 at 400 V 39 kilowatt

Response Time 10 to 18 msec (AC Operation Opening Delay Operating Times for 0.8 ... 1.1 x Us1), 10 to 18 msec (AC Operation Opening Delay Operating Times for 1.0 x Us1), 10 to 80 msec (AC Operation Closing Delay Operating Times for 0.8 ... 1.1 x Us1), 12 to 22 msec (AC Operation Closing Delay Operating Times for 1.0 x Us1)

Reversing Capability Non-Reversing

Series SIRIUS 3RT20

Standards REACH Art 33, WEEE (2012/19/EU)

suitable for series installation Yes

Terminal Connection Type Screw Terminals

Width 55 mm
