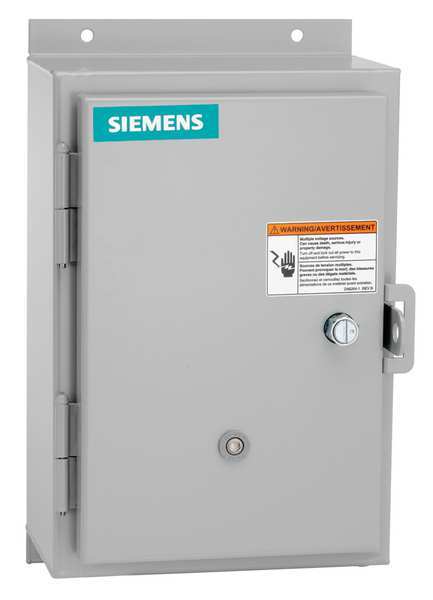

Nonreversing NEMA Magnetic Motor Starter, 12 NEMA Rating, 120 to 240V AC, 3 Poles, 1NO

SKU
Brand Siemens
Categories
Description NEMA Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 1 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 0.25 A, Trip Class 5/10/20/30, Series FVNR, Number of Poles 3, Number of Auxillary Contacts 1, Phase Three, Mounting Style Surface, Auxiliary Contact Form 1NO, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 600V AC, Coil Voltage 110-120/220-240V AC
graingerSKU: 44F542, mscSKU: , zoro_no: G6368144, mongo_id: 65bbee3c526e052139afbd2c

Web Price

$746.24 / each

Product Details

Action Nonreversing

Amps AC 18

Auxiliary Contact Form 1NO

Auxiliary Contact Module Capacity 8

Coil Voltage 110-120/220-240V AC

Coil Volts 120 to 240V AC

Country of Origin (subject to change) United States

Current AC 18 A

Depth 5 in

Enclosure NEMA Rating 12

Frequency 60 Hz

Height 13 in

Horsepower @ Three Phase - 208V AC 17/100 hp

Horsepower @ Three Phase - 240V AC 17/100 hp

Horsepower @ Three Phase - 480V AC 1/3 hp

Horsepower @ Three Phase - 600V AC 1/2 hp

HP @ 3 Phase - 208V 1/6 hp

HP @ 3 Phase - 240V 1/6 hp

HP @ 3 Phase - 480V 1/3 hp

HP @ 3 Phase - 575V 1/2 hp

Hz_ 50/60

Includes Auxiliary Contacts Yes

Maximum Operating Temperature 104 Degrees F

Maximum Overload Relay Current Setting 1 A

Maximum Voltage Rating 600V AC

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -4 Degrees F

Minimum Overload Relay Current Setting 0.25 A

Mounting Hole Diameter 0.28 in

Mounting Hole Distance - Height 12.25 in

Mounting Hole Distance - Width 5 in

Mounting Postion Vertical

Mounting Style Surface

NEMA Enclosure Rating 12

NEMA Size 0

Number of Auxillary Contacts 1

Number of Poles 3

Overall Depth 5 in

Overall Height 13 in

Overall Width 8 in

Overload Protection Type Electronic

Overload Relay Amp Setting 0.25 to 1A

Package Quantity 1

Phase Three

Response Time 10 to 24 msec (OFF-Delay Time), 19 to 29 msec (ON-Delay Time)

Reversing Capability Non-Reversing

Series FVNR

Standards eClass Ver. 12 Class 27-37-09-05, eClass Ver. 6 Class 27-37-09-05, eClass Ver. 7.1 Class 27-37-09-05, eClass Ver. 8 Class 27-37-09-05, eClass Ver. 9 Class 27-37-09-05, eClass Ver. 9.1 Class 27-37-09-05, ETIM Ver. 7 Class EC001037, ETIM Ver. 8 Class EC001037, IDEA Ver. 4 Class 4734, UNSPSC Ver. 15 Class 39-12-15-21

Starter Style NEMA

Starter Type NEMA Style

Terminal Connection Type Screw Terminals

Thermal Unit Code Not Applicable

Trip Class 5/10/20/30

Width 8 in
