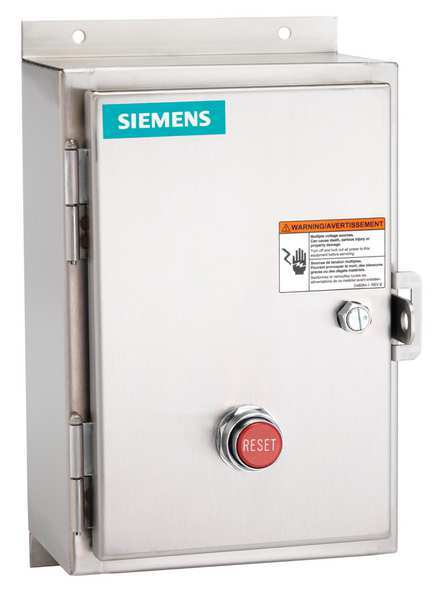

Nonreversing NEMA Magnetic Motor Starter, 4, 4X NEMA Rating, 240V AC, 3 Poles, 1NO

SKU
Brand Siemens
Categories
Description NEMA Magnetic Motor Starter, Includes Auxiliary Contacts Yes, Maximum Overload Relay Current Setting 40 A, Overload Protection Type Electronic, Minimum Overload Relay Current Setting 10 A, Trip Class 5/10/20/30, Series FVNR, Number of Poles 3, Number of Auxillary Contacts 1, Phase Three, Mounting Style Surface, Auxiliary Contact Form 1NO, Starter Style NEMA, Reversing Capability Non-Reversing, Maximum Voltage Rating 600V AC, Coil Voltage 190-220/220-240V AC
graingerSKU: null, mscSKU: null, zoro_no: G6377865, mongo_id: 65bbe6ce3aaddbd5a9054de4

Web Price

$1,201.24 / each

Product Details

Action Nonreversing

Amps AC 27

Auxiliary Contact Form 1NO

Auxiliary Contact Module Capacity 8

Coil Voltage 190-220/220-240V AC

Coil Volts 240V AC

Country of Origin (subject to change) United States

Current AC 27 A

Depth 5 in

Enclosure NEMA Rating 4, 4X

Frequency 50/60 Hz

Height 13 in

Horsepower @ Three Phase - 208V AC 7 1/2 hp

Horsepower @ Three Phase - 240V AC 7 1/2 hp

Horsepower @ Three Phase - 480V AC 0 hp

Horsepower @ Three Phase - 600V AC 0 hp

HP @ 3 Phase - 208V 7 1/2 hp

HP @ 3 Phase - 240V 7 1/2 hp

HP @ 3 Phase - 480V 10 hp

Hz_ 50/60

Includes Auxiliary Contacts Yes

Maximum Operating Temperature 104 Degrees F

Maximum Overload Relay Current Setting 40 A

Maximum Voltage Rating 600V AC

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -4 Degrees F

Minimum Overload Relay Current Setting 10 A

Mounting Hole Diameter 0.28 in

Mounting Hole Distance - Height 12.25 in

Mounting Hole Distance - Width 5 in

Mounting Postion Vertical

Mounting Style Surface

NEMA Enclosure Rating 4X

NEMA Size 1

Number of Auxillary Contacts 1

Number of Poles 3

Overall Depth 5 in

Overall Height 13 in

Overall Width 8 in

Overload Protection Type Electronic

Overload Relay Amp Setting 10 to 40A

Package Quantity 1

Phase Three

Resistance Properties Corrosion Resistant, Dust Resistant, Watertight

Response Time 10 to 24 msec (OFF-Delay Time), 19 to 29 msec (ON-Delay Time)

Reversing Capability Non-Reversing

Series FVNR

Standards eClass Ver. 12 Class 27-37-09-05, eClass Ver. 6 Class 27-37-09-05, eClass Ver. 7.1 Class 27-37-09-05, eClass Ver. 8 Class 27-37-09-05, eClass Ver. 9 Class 27-37-09-05, eClass Ver. 9.1 Class 27-37-09-05, ETIM Ver. 7 Class EC001037, ETIM Ver. 8 Class EC001037, IDEA Ver. 4 Class 4734, UNSPSC Ver. 15 Class 39-12-15-21

Starter Style NEMA

Starter Type NEMA Style

Terminal Connection Type Screw Terminals

Thermal Unit Code Not Applicable

Trip Class 5/10/20/30

Width 8 in
