Home / Overload Relay, 50 to 200A, 3P, NEMA S6

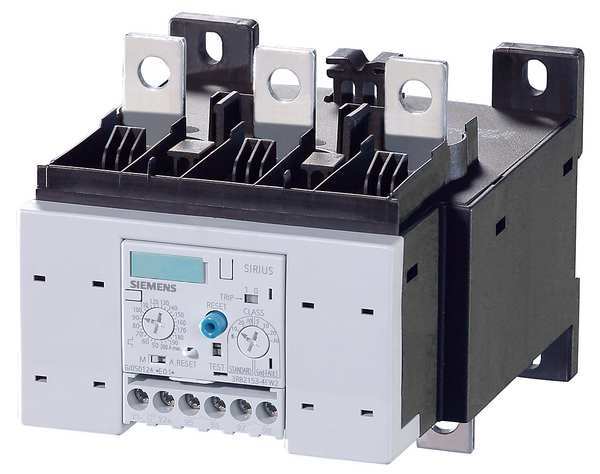

Overload Relay, 50 to 200A, 3P, NEMA S6

SKU
Brand Siemens
Categories
Description Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 200 A, Minimum Overload Relay Current Setting 50 A, Trip Class 5, Maximum Voltage Rating 1000V AC, NEMA Size Not Applicable, Number of Poles 3, Number of Required Thermals Not Applicable, Reset Type Auto, Manual, Includes Thermal Units Not Applicable, Mounting Style Direct To Contactor, Terminal Connection Type Screw Terminals, Compatible with Series SIRIUS, Frame Size S6, Relay Style IEC
graingerSKU: 13A252, mscSKU: , zoro_no: G4287062, mongo_id: 65bbe7769a749db82273cd0f

Web Price

$1,037.49 / each

Product Details

Auxiliary Contact Form 1NO/1NC

Body Depth 3.74 in

Body Depth - Relay 6.1 in

Body Height 5.89 in

Body Height - Relay 4.68 in

Body Width 4.72 in

Body Width - Relay 4.72 in

Compatible with Series SIRIUS

Connection type Bar-type current transformer

Country of Origin (subject to change) Germany

Current Range 50.0 to 200A

Depth 6.10

description of product type 3RB2

External reset possible Yes

Features Earth Fault Detection, Manual and Auto Reset

For Use With 3RT105 Contactors

Frame / Series / Class / Code S6

Frame Size S6

Greatest value adjustable current range 200 ampere

Height 4.68

Includes Mounting Hardware Not Applicable

Includes Thermal Units Not Applicable

IP Rating IP20

Item - Relay IEC Style Overload Relay

Lowest value adjustable current range 50 ampere

Maximum Operating Temperature 140 Degrees F

Maximum Overload Relay Current Setting 200 A

Maximum Voltage Rating 1000V AC

Minimum Operating Temperature -13 Degrees F

Minimum Overload Relay Current Setting 50 A

Mounting Style Direct To Contactor

NEMA Size Not Applicable

Number of auxiliary contacts as changer 0

Number of auxiliary contacts as opener 1

Number of auxiliary contacts as shutter 1

Number of Poles 3

Number of Required Thermals Not Applicable

Overall Height 6.09 in

Overall Height - Relay 4.68 in

Overload Protection Type Electronic

Overload Relay Current Range 50 to 200A

Package Quantity 1

Phase Three

Relay Style IEC

Release class adjustable

Reset Type Auto, Manual

Reset Type - Relay Auto, Manual

Sensing Method Electronic

Separate Mounting Yes, Additional Items Needed

Standards Lead CAS-No. 7439-92-1 Greater Than 0, 1 % (w/w), REACH Art 33 Duty to Inform According to the Current List of Candidates, RoHS 07/01/2006, WEEE (2012/19/EU) Take-Back Obligation

Starter Type IEC

Terminal Connection Type Screw Terminals

Trip Class 5

Trip Class - Overload 10, 20, 30, 5

Type of actuation AC

Use With - Contactors and Starters Mfr. Series 3RT105 Contactors

Width 4.72
