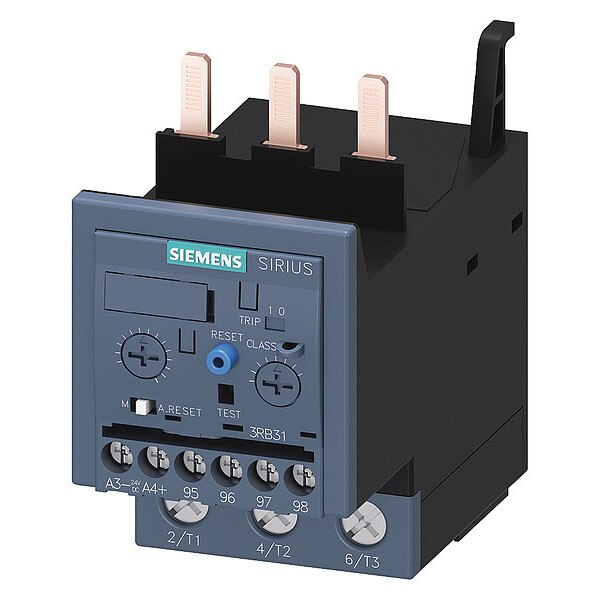

Overload Relay, Use w/ Mfr. Series 3RT203

SKU
Brand Siemens
Categories
Description Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 80 A, Minimum Overload Relay Current Setting 20 A, Trip Class 5E/10E/20E/30E, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Number of Required Thermals Not Applicable, Reset Type Auto, Manual, Includes Thermal Units Not Applicable, Mounting Style Direct To Contactor, Terminal Connection Type Screw Terminals, Compatible with Series SIRIUS, Frame Size S2, Relay Style IEC
graingerSKU: 499J71, mscSKU: , zoro_no: G2132744, mongo_id: 65bbe99f22d7a989a99699fe

Web Price

$676.24 / each

Qty

Product Details

Auxiliary Contact Form 1NO/1NC

Body Depth 3.28 in

Body Depth - Relay 4.09 in

Body Height 7.66 in

Body Height - Relay 3.3 in

Body Width 2.17 in

Body Width - Relay 2.17 in

Compatible with Series SIRIUS

Connection type Screw connection

Country of Origin (subject to change) Czechia

description of product type 3RB3

External reset possible Yes

Features Manual Reset

Frame / Series / Class / Code S2

Frame Size S2

Greatest value adjustable current range 80 ampere

Includes Mounting Hardware Not Applicable

Includes Thermal Units Not Applicable

IP Rating IP20

Item - Relay IEC Style Overload Relay

Lowest value adjustable current range 20 ampere

Maximum Operating Temperature 140 Degrees F

Maximum Overload Relay Current Setting 80 A

Maximum Voltage Rating 690V AC

Minimum Operating Temperature -13 Degrees F

Minimum Overload Relay Current Setting 20 A

Mounting Style Direct To Contactor

NEMA Size Not Applicable

Number of auxiliary contacts as changer 0

Number of auxiliary contacts as opener 1

Number of auxiliary contacts as shutter 1

Number of Poles 3

Number of Required Thermals Not Applicable

Overall Height 7.66 in

Overall Height - Relay 3.9 in

Overload Protection Type Electronic

Overload Relay Current Range 20 to 80A

Package Quantity 1

Phase Three

Power loss per pole, current-dependent [PlIp] 1.53 watt

Relay Style IEC

Release class adjustable

Reset Type Auto, Manual

Reset Type - Relay Auto, Manual

Sensing Method Electronic

Separate Mounting Yes, Additional Items Needed

Standards Lead CAS-No. 7439-92-1 Greater Than 0, 1 % (w/w), REACH Art 33 Duty to Inform According to the Current List of Candidates, RoHS 07/01/2006, WEEE (2012/19/EU) Take-Back Obligation

Terminal Connection Type Screw Terminals

Trip Class 5E/10E/20E/30E

Trip Class - Overload 10E, 20E, 30E, 5E

Type of actuation AC

Use With - Contactors and Starters Mfr. Series 3RT203 Contactors
