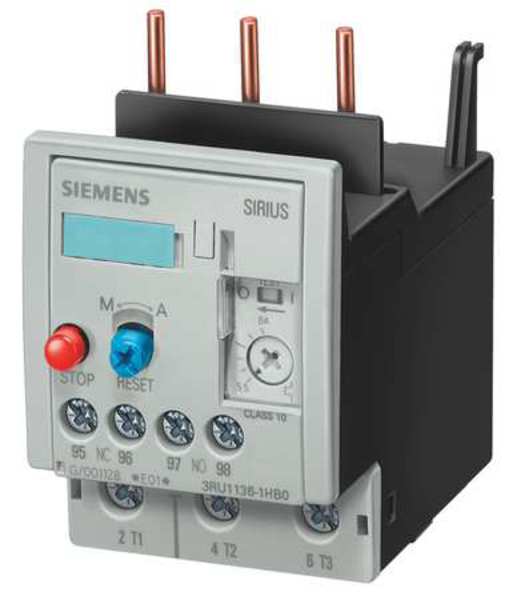

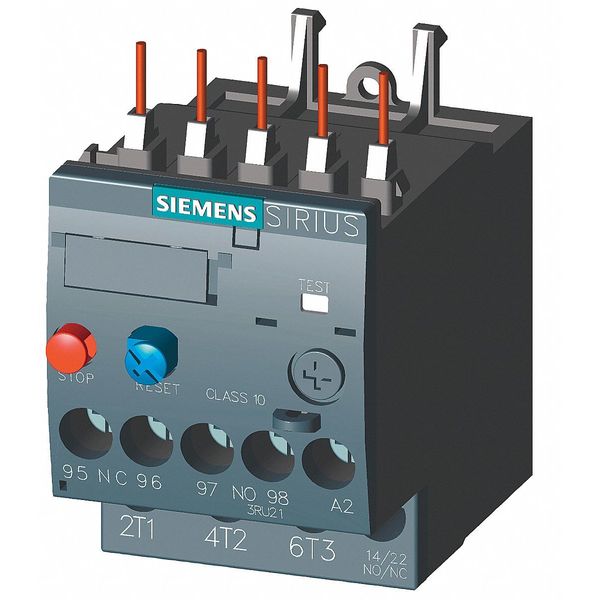

Ovrload Rely, 11 to 16A, Class 10, NEMA S00

SKU
Brand Siemens
Categories
Description Overload Relay, Auxiliary Contact Form 1NO/1NC, Maximum Overload Relay Current Setting 16 A, Minimum Overload Relay Current Setting 11 A, Trip Class 10, Maximum Voltage Rating 690V AC, NEMA Size Not Applicable, Number of Poles 3, Number of Required Thermals 3, Reset Type Auto, Manual, Includes Thermal Units Yes, Mounting Style Direct To Contactor, Terminal Connection Type Screw Terminals, Compatible with Series SIRIUS, Frame Size S00, Relay Style IEC, Overload Protection Type Thermal
graingerSKU: 13A205, mscSKU: , zoro_no: G4286642, mongo_id: 65bbe9c522d7a989a9977fc9

Web Price

$102.24 / each

Product Details

Auxiliary Contact Form 1NO/1NC

Body Depth 2.43 in

Body Depth - Relay 2.75 in

Body Height 4.64 in

Body Height - Relay 3 in

Body Width 1.77 in

Body Width - Relay 1.77 in

Compatible with Series SIRIUS

Contact configuration 1 / 0 / 1

Contact Rating B600 / R300

Country of Origin (subject to change) United States

Current Range 11.0 to 16.0A

Depth 2.75

Environmental Conditions -55

Features Manual and Auto Reset

For Use With 3RT201 Contactors

Frame / Series / Class / Code S00

Frame Size S00

Full Load Current Range 16 A / 16 A

Height 3.00

Includes Mounting Hardware Not Applicable

Includes Thermal Units Yes

Insulation IP20

IP Rating IP20

Item - Relay IEC Style Overload Relay

Maximum Operating Temperature 158 Degrees F

Maximum Overload Relay Current Setting 16 A

Maximum Voltage Rating 690V AC

Minimum Operating Temperature -40 Degrees F

Minimum Overload Relay Current Setting 11 A

Mounting Contactor mounting

Mounting Style Direct To Contactor

NEMA Size Not Applicable

Number of Poles 3

Number of Required Thermals 3

Operating Temperature -40ÃÂ°C to 70ÃÂ°C

Overall Height 4.64 in

Overall Height - Relay 3 in

Overload Protection Type Thermal

Overload Relay Current Range 11.0 to 16.0A

Package Quantity 1

Phase Three

Relay Style IEC

Reset Type Auto, Manual

Reset Type - Relay Auto, Manual

Sensing Method Thermal

Separate Mounting Yes, Additional Items Needed

Size 0.045 m / 0.076 m / 0.07 m

Standards REACH Art 33 Duty to Inform According to the Current List of Candidates Lead CAS-No. 7439-92-1 Greater Than 0, 1 % (w/w), RoHS 07/01/2006, WEEE (2012/19/EU) Take-Back Obligation

Starter Type IEC

Terminal Connection Type Screw Terminals

Trip Class 10

Trip Class - Overload 10

Trip type CLASS 10

Type thermal overload relay

Use With - Contactors and Starters Mfr. Series 3RT201 Contactors

Width 1.77
