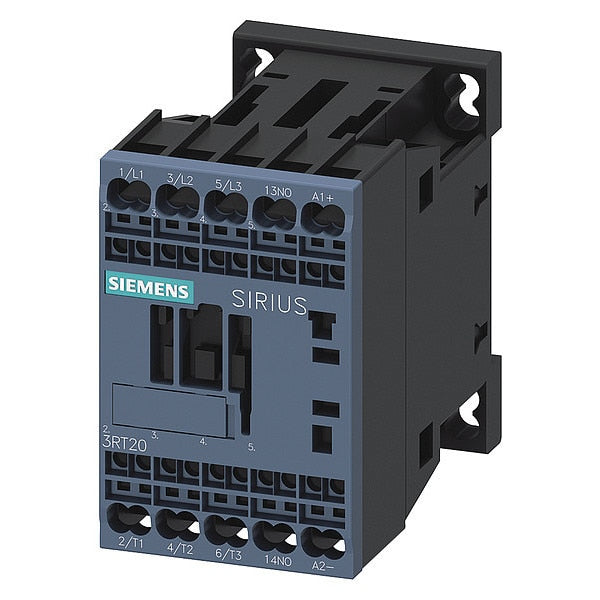

Power Contactor, 3 Poles, 24V DC, 12 A

SKU
Brand Siemens
Categories
Description IEC Power Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V DC, Number of Poles 3, Full Load Current - Inductive 12 A, Full Load Current - Resistive 22 A, Reversing Capability Non-Reversing, Overall Height 2.85 in, Overall Width 2 in, Terminal Connection Type Spring Loaded Terminals, Frame Size S00, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT20, Number of Auxillary Contacts 1, Contactor Style IEC

Web Price

$148.74 / each

Qty

Product Details

Aux. Contact Configuration 1NO

Auxiliary Contact Form 1NO

Coil Voltage 24V DC

Coil Volts 24 V DC

Contactor Style IEC

Country of Origin (subject to change) Germany

Depth 73 mm

Electrical Connection Spring Pulley

Embedded Surge Suppressor Yes

Frame / Series / Class / Code S00

Frame Size S00

Full Load Amps-Inductive 12 A

Full Load Amps-Resistive 22 A

Full Load Current - Inductive 12 A

Full Load Current - Resistive 22 A

Height 70 mm

Horsepower @ Single Phase - 120V AC 1/2 hp

Horsepower @ Single Phase - 240V AC 2 hp

Horsepower @ Three Phase - 208V AC 3 hp

Horsepower @ Three Phase - 240V AC 3 hp

Horsepower @ Three Phase - 480V AC 7 1/2 hp

Horsepower @ Three Phase - 600V AC 10 hp

HP @ 1 Phase - 120V 1/2 hp

HP @ 1 Phase - 240V 2 hp

HP @ 3 Phase - 208V 3 hp

HP @ 3 Phase - 240V 3 hp

HP @ 3 Phase - 480V 7 1/2 hp

HP @ 3 Phase - 575V 10 hp

Includes Auxiliary Contacts Yes

IP Rating IP20

Max. Operating Watts 6 kW (at 400V, AC-3), 13 kW (at 400V, AC-1)

Maximum Operating Temperature 140 Degrees F

Maximum Voltage Rating 690V AC

Mechanical Operating Durability 30,000,000

Minimum Operating Temperature -13 Degrees F

Mounting Hole Diameter 0.2 in

Mounting Hole Distance - Height 1.97 in

Mounting Hole Distance - Width 1.38 in

Mounting Postion Vertical

Mounting Style DIN Rail, Surface

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Number of Auxillary Contacts 1

Number of Normally Open Main Contacts 3

Number of Poles 3

Overall Depth 3.25 in

Overall Height 2.85 in

Overall Width 2 in

Package Quantity 1

Phase Three

Response Time 10 to 17 msec (AC Operation Closing Delay Operation Opening Delay Operating Times for 1.0 x Us1), 15 to 17.5 msec (DC Operation Opening Delay Operating Times For 0.8 ... 1.1 X Us1), 16 to 17.5 msec (DC Operation Opening Delay Operating Times for 1.0 x Us), 4 to 16 msec (AC Operation Opening Delay Operating Times for 0.8 ... 1.1 X Us1), 4 to 16 msec (AC Operation Opening Delay Operating Times for 1.0 x Us), 50 to 170 msec (DC Operation Closing Delay Operating Times for 0.8 ... 1.1 X Us1), 55 to 80 msec (DC Operation Closing Delay Operating Times for 1.0 x Us), 8 to 40 msec (AC Operation Closing Delay)

Reversing Capability Non-Reversing

Series SIRIUS 3RT20

Standards REACH Art 33, WEEE (2012/19/EU)

Terminal Connection Type Spring Loaded Terminals

Watts Loss 0.5W (Current Dependent); 2.8W (Current Independent)

Width 45 mm
