Home / SITOP PSU6200 12 V/2 A Stabilized power

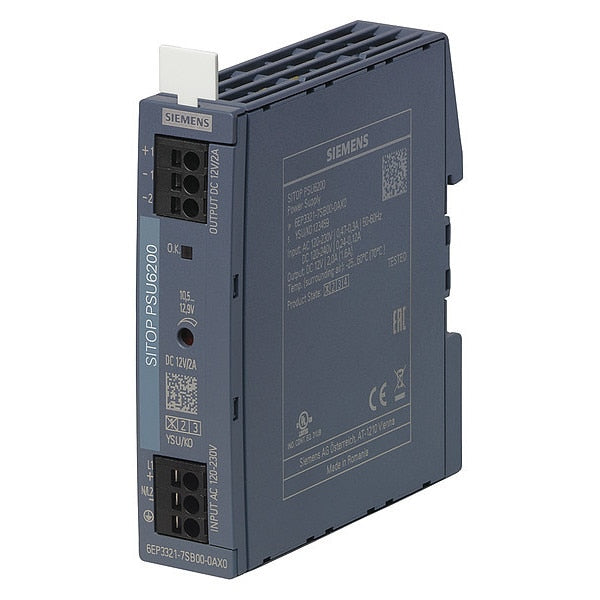

SITOP PSU6200 12 V/2 A Stabilized power

SKU
Brand Sitop
Categories
Description Stabilized Power Supply, Input Voltage 120 to 230 V AC, Output Voltage 12V DC, Power Rating 28.5W, Output Amps 2, Mounting DIN Rail, Height 90 mm, Width 36 mm, Depth 53 mm, Series SITOP PSU6200, Hz 47 to 63 Hz, Phase - Electrical Single, IP Rating 20, Status Indicator Green DC OK Signal

Web Price

$199.99 / each

Qty

Product Details

Country of Origin (subject to change) Romania

Depth 53 mm

Features Output Overvoltage Protection, Parallel Switching for Enhanced Performance, Primary/Secondary Isolation, Product Feature of the Enclosure Housing for Side-by-Side Mounting, Product Function Output Voltage Adjustable, Property of the Output Short-Circuit Proof, Screw-Type terminals, Wide-Range Input

Height 90 mm

Hz_ 47 to 63 Hz

Input Voltage 120 to 230 V AC

IP Rating 20

Mounting DIN Rail

Operating Temp. Range -25 Degrees C to 70 Degrees C

Output Amps 2

Output Voltage 12V DC

Package Quantity 1

Phase - Electrical Single

Power Rating 28.5W

Protection Short-Circuit Proof

Regulated / Unregulated Regulated

Series SITOP PSU6200

Standards CE, cULus, cURus, NEC class 2, ATEX, cULus Class I Div. 2 (Group ABCD, T4), FM approval Class I, Div. 2, (Group ABCD, T4), CB, ABS, BV, DNV GL, LRS

Status Indicator Green DC OK Signal

Width 36 mm
