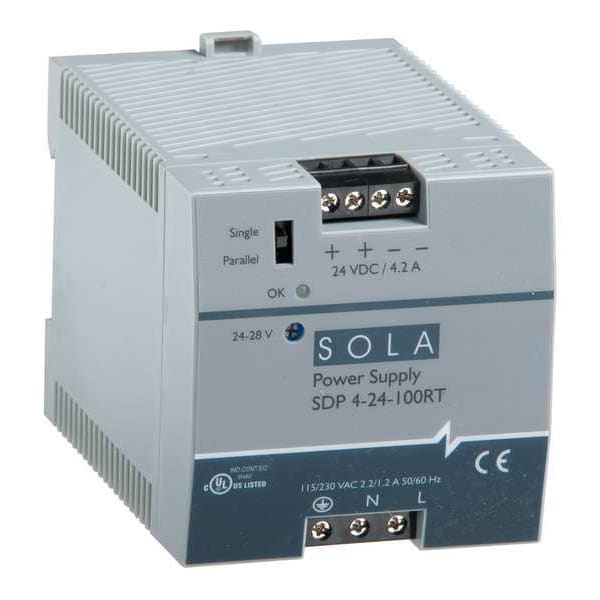

DC Power Supply, 24-28VDC, 4.2A, 47-63Hz

SKU
Brand Solahd
Categories
Description DC Power Supply, Input Voltage 176 to 264 V AC, 210 to 375 VDC, 85 to 132 V AC, Output Voltage 24 to 28V DC, Power Rating 100W, Output Amps 4.2, Mounting DIN Rail, Switching, Case Material Plastic Case, Height 2.95 in, Width 2.85 in, Depth 3.8 in, Series SDP, Hz 47 to 63 Hz, Phase - Electrical Single, Peak Amps 6.3, IP Rating 20, Output Noise Less Than 50mV, Hold Up Time Greater Than 50 msec, Status Indicator Green DC OK Signal, NEMA Rating 1
graingerSKU: 10G792, mscSKU: 79929949, zoro_no: G3907224, mongo_id: 65bbe86b9a749db82278fa5c

Web Price

$299.99 / each

Qty

Product Details

Case Material Plastic Case

Country of Origin (subject to change) Taiwan, Province of China

Depth 3.8 in

Features Adjustable Output, Low Output Noise, No Tools Required For Mounting, Overvoltagea And Short Circuit Protection, Powerboost(TM) Industrial Overload Design, Screw Terminal Connections, Ultra Slim 15W Footprint

Height 2.95 in

Hertz 47-63 Hz

Hold Up Time Greater Than 50 msec

Hz_ 47 to 63 Hz

Input Voltage 176 to 264 V AC, 210 to 375 VDC, 85 to 132 V AC

Input Voltage Range 85-264 Vac, 90-375 Vdc, SDP-T: 85-264 Vac, 90-375 Vdc. SDP-LT/SDP-RT: 85-132 / 176-264 Vac, 210-375 Vdc

IP Rating 20

Mounting Din Rail

NEMA Rating 1

Number of Phases Single

Operating Temp. Range -10 Degrees to 60 Degrees C

Operating Temperature -10ÃÂ°C to +70ÃÂ°C full power

Output Amps 4.2

Output Noise Less Than 50mV

Output Power 25-100 W

Output Voltage 24 to 28V DC

Output Voltage Range 5, 6, 10, 12, 15, 24, 28, 48, 56 Vdc

Overload Capacity SDP-T: > 30 Vdc, but < 33 Vdc, auto recovery. SDP-LT: > 26 Vdc, but < 27.2 Vdc, auto recovery. SDP-RT: > 30 Vdc, but < 33 Vdc, auto recovery

Package Quantity 1

Peak Amps 6.3

Phase - Electrical Single

Power Rating 100W

Series SDP

Standards CE, cUL us E61379, cURus E137632 E234790

Status Indicator Green DC OK Signal

Style Switching

Temp. Range -10 to 70ÃÂ°C

UL Recognized Component, Haz. Loc. Class I, Division 2, Groups A, B, C, D

Width 2.85 in
