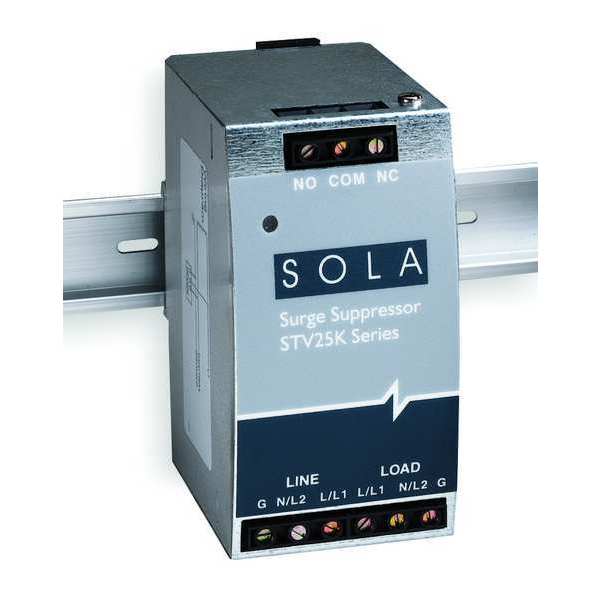

Surge Protection Device, 1 Phase, 120V

SKU
Brand Solahd
Categories
Description Surge Protection Device, Metallic, Amps 20 A, Depth 4.75 in, Enclosure Material Metal
graingerSKU: 6NN78, mscSKU: 64912066, zoro_no: G2331262, mongo_id: 65bbe7c49a749db8227582d6

Web Price

$443.74 / each

Qty

Product Details

Amperage 20 A

Amps 20 A

Basic Material Metallic

Country of Origin (subject to change) Mexico

Depth 4.75 in

Enclosure Material Metal

Filtering Yes

Filtering / Nonfiltering Filtering

Hertz 47-63 Hz

Includes LED Status Indicator

Includes Surge Counter No

Input Voltage Range 120, 240 Vac

IP Rating 20

Length 4.87 in

Length (Straight Wireway) 4.87 in

Max. Continuing Operating Voltage 150 V AC

Max. Operating Temp. 140 Degrees F

Max. Surge Current Per Mode 25kA

Max. Surge Current Per Phase 25 kA

Min. Operating Temp. -40 Degrees F

Modes of Protection L-G, L-N, N-G

Modular Yes

Modular / Nonmodular Modular

Mounting DIN Rail Mount (Chassis Mount Optional)

Mounting Style DIN-Rail

Noise Attenuation Common 40dB Minimum, Normal: 50dB Minimum

Noise Attenuation, Common Mode 40 dB Min

Noise Attenuation, Nominal Mode 50 dB Min

Nominal Discharge Current 3 kA

Number of Phases Single Phase

Number of Poles 1

Number of Wires 2 Wires + Ground

Operating Temperature -40ÃÂ°C to +60ÃÂ°C

Output Power 25-100 W

Output Voltage Range 5, 6, 10, 12, 15, 24, 28, 48, 56 Vdc

Overload Capacity SDP-T: > 30 Vdc, but < 33 Vdc, auto recovery. SDP-LT: > 26 Vdc, but < 27.2 Vdc, auto recovery. SDP-RT: > 30 Vdc, but < 33 Vdc, auto recovery

Package Quantity 1

Phase Single

Short Circuit Current Rating 5kA

Standards cULus Listed, RoHS, Type 4

Status Indicator LED Light

System Connection Series

UL Recognized Component, Haz. Loc. Class I, Division 2, Groups A, B, C, D

UL SPD Type Type 4

Voltage 120V AC

Voltage Protection Rating 500V (L-G, L-N, N-G)

Width 2.56 in

Wire Gauge 12 AWG
