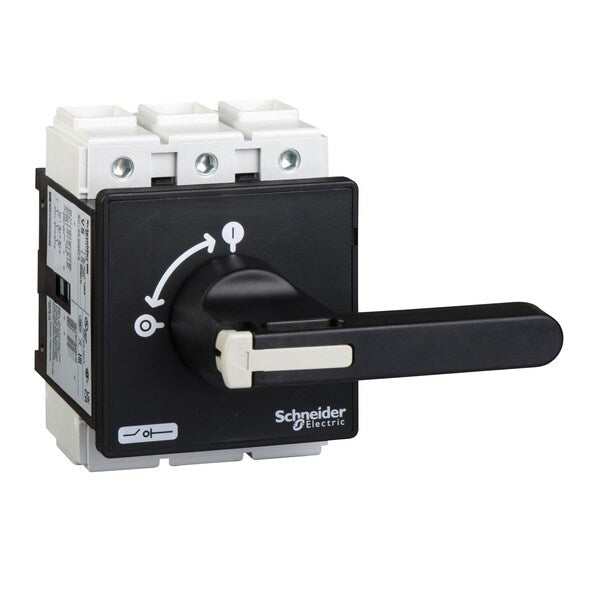

115A Sw Kit W/4 Hole Mtg Black/Gray Oper

SKU
Brand Square D
Categories
Description 115A Sw Kit W/4 Hole Mtg Black/Gray Oper
graingerSKU: , mscSKU: , zoro_no: G0862219, mongo_id: 65bbe87122d7a989a98f6d23

Web Price

$683.74 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-50ÃÂ°C

Base Dimension 90 x 90 mm

Breaking Capacity 1400 A 400 V AC-21A) || 1400 A 400 V AC-22A) || 1400 A 400 V AC-23A)

Compatibility Code main switch disconnector

Connections - Terminals power circuit screw clamp terminals 95-95 mmÃÂ² solid || power circuit screw clamp terminals 70-70 mmÃÂ² flexible - with cable end

Contacts Type And Composition 3 NO

Control Type rotary handle

Country of Origin (subject to change) Czechia

Device Application preventive maintenance

Device Composition handle || switch

Device Short Name VBF

Electrical Durability 30000 cycles AC-21 || 30000 cycles DC-1 to 5

Fire Resistance 960ÃÂ°C IEC 60695-2-1

Fixing Mode by 4 screws handle

Handle Colour black

Handle Front Plate Colour yellow

Height 125 mm

Intermittent Duty Class 30

Ip Degree Of Protection IP20 conforming to IEC 60529 || IP65

Making Capacity 1750 A 400 V AC-21A || 1750 A 400 V AC-22A || 1750 A 400 V AC-23A

Marking 0 - 1

Mechanical Durability 30000 cycles

Mechanical Robustness vibrations 10 to 150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27

Mounting Support handle door || switch door

Network Type AC || DC

Package Quantity 1

Performance Level high performance

Poles Description 3P

Product Certifications GL || CSA || CCC || UL || UKCA

Product Name TeSys VARIO

Product Or Component Type emergency stop switch disconnector

Protective Treatment TC

Range TeSys

Rated Conditional Short-Circuit Current 10 kA 400 V 200 A aM || 10 kA 400 V 200 A gG

Rated Operational Power In W 30 kW 230 to 240 V AC-3) || 37 kW 400 to 415 V AC-3) || 37 kW 690 V AC-3) || 45 kW 500 V AC-3) || 45 kW 690 V AC-23A) || 55 kW 500 V AC-23A) || 30 kW 230 to 240 V AC-23A) || 45 kW 400 to 415 V AC-23A)

Rotary Handle Mounting Style direct

Rotary Handle Padlocking 1 to 3 padlocks 4-8 mm

Standards IEC 60947-3

Suitability For Isolation yes

Tightening Torque power circuit 22.6-22.6 N.m screw clamp terminals

Width 90 mm

[Icm] Rated Short-Circuit Making Capacity 2.8 kA 400 V at Ipeak

[Icw] Rated Short-Time Withstand Current 2100 A 400 V 1 s

[Ie] Rated Operational Current 83 A AC-23 Ue: 400 V

[Ithe] Conventional Enclosed Thermal Current 140 A

[Ith] Conventional Free Air Thermal Current 175 A

[Ue] Rated Operational Voltage 690 V AC 50/60 Hz
