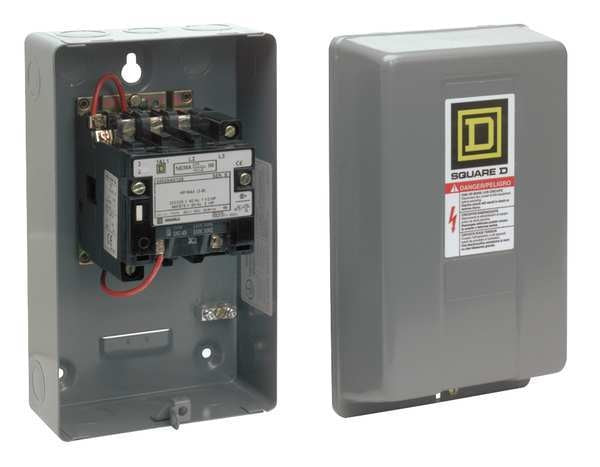

120VAC Non-Reversing Magnetic Contactor 3P 27A NEMA 1

SKU
Brand Square D
Categories
Description NEMA Magnetic Contactor, Auxiliary Contact Form Auxiliary Contacts Not Included, NEMA Enclosure Rating 1, NEMA Size 1, Coil Voltage 120V AC, Number of Poles 3, Full Load Current - Inductive 27 A, Reversing Capability Non-Reversing, Overall Height 10 in, Overall Width 5.98 in, Terminal Connection Type Screw Clamp Terminals, Series 8502, Number of Auxillary Contacts 0, Contactor Style NEMA, Horsepower @ Three Phase - 240V AC 7 1/2 hp, Horsepower @ Three Phase - 480V AC 10 hp, Phase Three
graingerSKU: null, mscSKU: null, zoro_no: G3081233, mongo_id: 65bbe5bb3aaddbd5a9fe1f74

Web Price

$614.99 / each

Qty

Product Details

Action Non-Reversing

Auxiliary Contact Composition without

Auxiliary Contact Form Auxiliary Contacts Not Included

Coil Voltage 120V AC

Coil Volts 120V AC

Contactor Application non-reversing

Contactor Style NEMA

Control Circuit separate control circuit

Control Type no control units

Country of Origin (subject to change) Mexico

Depth 6 in

Electrical Connection screw clamp terminals

Embedded Surge Suppressor No

Enclosure NEMA Rating 1

Frame / Series / Class / Code Class 8502

Frequency 50/60 Hz

Full Load Amps 27 A

Full Load Current - Inductive 27 A

Height 10 in

Horsepower @ Single Phase - 240V AC 7 1/2 hp

Horsepower @ Three Phase - 208V AC 7 1/2 hp

Horsepower @ Three Phase - 240V AC 7 1/2 hp

Horsepower @ Three Phase - 480V AC 10 hp

Horsepower @ Three Phase - 600V AC 10 hp

HP @ 3 Phase - 208V 7 1/2 hp

HP @ 3 Phase - 240V 7 1/2 hp

HP @ 3 Phase - 480V 10 hp

HP @ 3 Phase - 575V 10 hp

Hz_ 50/60

Includes Auxiliary Contacts No

Line Rated Current 27 A

Local Signalling no indicator

Maximum Voltage Rating 600V AC

NEMA Contactor Size 1

Nema Degree Of Protection NEMA 1 painted sheet steel

NEMA Enclosure Material Steel

NEMA Enclosure Rating 1

NEMA Size 1

Number of Auxillary Contacts 0

Number of Poles 3

Overall Depth 5.28 in

Overall Height 10 in

Overall Width 5.98 in

Package Quantity 1

Phase Three

Poles Description 3P

Product Certifications UL listed file E78351 CCN NLDX || CSA

Product Compatibility circuit-breaker 70 A maximum, SCCR: 100 kA at 480 V AC || fuse J 60 A maximum, SCCR: 100 kA at 600 V AC || fuse T 60 A maximum, SCCR: 100 kA at 600 V AC || fuse RK1 60 A maximum, SCCR: 100 kA at 600 V AC || fuse RK5 60 A maximum, SCCR: 100 kA at 600 V AC

Product Or Component Type contactor

Rated Power In Hp 7.5 HP 200 V AC || 7.5 HP 230 V AC || 10 HP 460 V AC || 10 HP 575 V AC

Reversing No

Reversing Capability Non-Reversing

Series 8502

Standards CSA, UL E78351 CCN NLDX

Terminal Connection Type Screw Clamp Terminals

Width 5.28 in

[Uc] Control Circuit Voltage 120 V AC 60 Hz || 110 V AC 50 Hz

[Ue] Rated Operational Voltage 600 V AC
