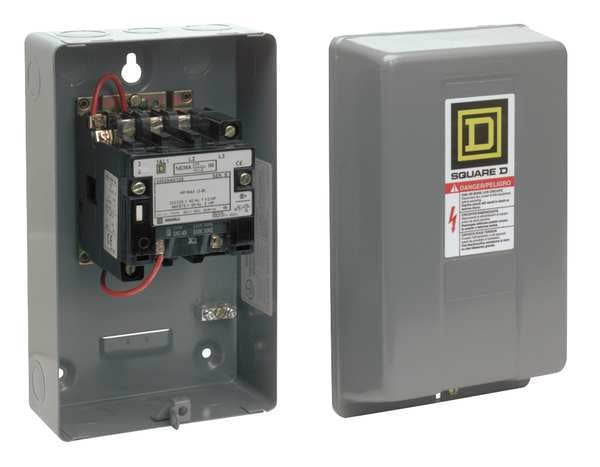

120VAC Non-Reversing Magnetic Contactor 3P 45A NEMA 2

SKU
Brand Square D
Categories
Description NEMA Magnetic Contactor, Auxiliary Contact Form Auxiliary Contacts Not Included, NEMA Enclosure Rating 1, NEMA Size 2, Coil Voltage 120V AC, Number of Poles 3, Full Load Current - Inductive 45 A, Reversing Capability Non-Reversing, Overall Height 12.68 in, Overall Width 7.8 in, Terminal Connection Type Screw Clamp Terminals, Series 8502, Number of Auxillary Contacts 0, Contactor Style NEMA, Horsepower @ Three Phase - 240V AC 15 hp, Horsepower @ Three Phase - 480V AC 25 hp, Phase Three
graingerSKU: 1H460, mscSKU: , zoro_no: G1269222, mongo_id: 65bbe7353aaddbd5a907fd2b

Web Price

$1,166.24 / each

Qty

Product Details

Action Non-Reversing

Auxiliary Contact Composition without

Auxiliary Contact Form Auxiliary Contacts Not Included

Certifications UL listed file E78351 CCN NLDX; CSA

Coil Voltage 120V AC

Coil Volts 120V AC

Contactor Application non-reversing

Contactor Style NEMA

Control Circuit separate control circuit

Control Type no control units

Country of Origin (subject to change) Mexico

Depth 7.81 in

Electrical Connection screw clamp terminals

Embedded Surge Suppressor No

Enclosure NEMA Rating 1

Frame / Series / Class / Code Class 8502

Frequency 50/60 Hz

Full Load Amps 45 A

Full Load Current - Inductive 45 A

Height 12.69 in

Horsepower @ Single Phase - 240V AC 15 hp

Horsepower @ Three Phase - 208V AC 10 hp

Horsepower @ Three Phase - 240V AC 15 hp

Horsepower @ Three Phase - 480V AC 25 hp

Horsepower @ Three Phase - 600V AC 25 hp

Horsepower Rating 10 HP 200 V AC; 15 HP 230 V AC; 25 HP 460 V AC; 25 HP 575 V AC

HP @ 3 Phase - 208V 10 hp

HP @ 3 Phase - 240V 15 hp

HP @ 3 Phase - 480V 25 hp

HP @ 3 Phase - 575V 25 hp

Hz_ 50/60

Includes Auxiliary Contacts No

Line Rated Current 45 A

Local Signalling no indicator

Maximum Voltage Rating 600V AC

NEMA Contactor Size 2

Nema Degree Of Protection NEMA 1 painted sheet steel

NEMA Enclosure Material Steel

NEMA Enclosure Rating 1

NEMA Size 2

Number of Auxillary Contacts 0

Number of Poles 3

Overall Depth 6.02 in

Overall Height 12.68 in

Overall Width 7.8 in

Package Quantity 1

Phase Three

Poles Description 3P

Product Certifications UL listed file E78351 CCN NLDX || CSA

Product Compatibility circuit-breaker 100 A maximum, SCCR: 100 kA at 480 V AC || fuse J 100 A maximum, SCCR: 100 kA at 600 V AC || fuse T 100 A maximum, SCCR: 100 kA at 600 V AC || fuse RK1 100 A maximum, SCCR: 100 kA at 600 V AC || fuse RK5 100 A maximum, SCCR: 100 kA at 600 V AC

Product Or Component Type contactor

Rated Power In Hp 10 HP 200 V AC || 15 HP 230 V AC || 25 HP 460 V AC || 25 HP 575 V AC

Reversing No

Reversing Capability Non-Reversing

Series 8502

Short Circuit Current Rating Circuit-breaker 100 A maximum, SCCR: 100 kA at 480 V AC; Fuse J 100 A maximum, SCCR: 100 kA at 600 V AC; Fuse T 100 A maximum, SCCR: 100 kA at 600 V AC; Fuse RK1 100 A maximum, SCCR: 100 kA at 600 V AC; Fuse RK5 100 A maximum, SCCR: 100 kA at 600 V AC

Standards CSA, UL E78351 CCN NLDX

Terminal Connection Type Screw Clamp Terminals

Width 6.03 in

[Uc] Control Circuit Voltage 120 V AC 60 Hz || 110 V AC 50 Hz

[Ue] Rated Operational Voltage 600 V AC
