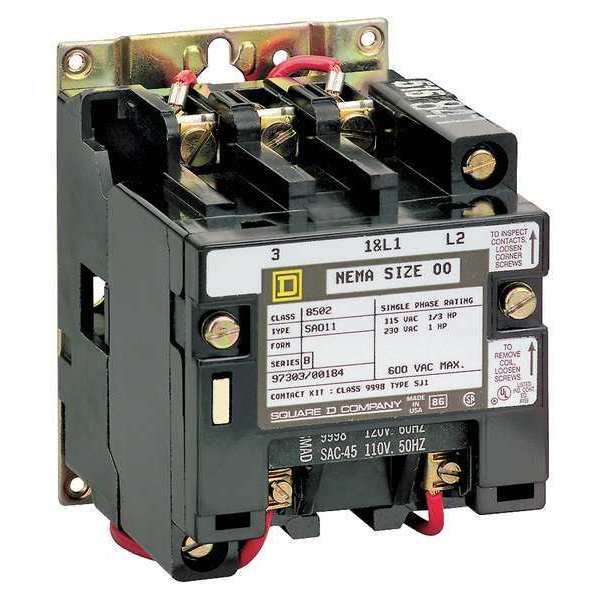

120VAC Non-Reversing Magnetic Contactor 3P 9A NEMA 00

SKU
Brand Square D
Categories
Description NEMA Magnetic Contactor, Auxiliary Contact Form Auxiliary Contacts Not Included, NEMA Enclosure Rating No Enclosure, NEMA Size 0, Coil Voltage 120V AC, Number of Poles 3, Full Load Current - Inductive 9 A, Reversing Capability Non-Reversing, Overall Height 4.34 in, Overall Width 3.22 in, Terminal Connection Type Screw Terminals, Series 8502, Number of Auxillary Contacts 0, Contactor Style NEMA, Horsepower @ Three Phase - 240V AC 1 1/2 hp, Horsepower @ Three Phase - 480V AC 2 hp, Phase Three
graingerSKU: 1H453, mscSKU: , zoro_no: G0356544, mongo_id: 65bbe75d3aaddbd5a908e116

Web Price

$401.24 / each

Qty

Product Details

Action Non-Reversing

Auxiliary Contact Composition without

Auxiliary Contact Form Auxiliary Contacts Not Included

Certifications UL listed file E78351 CCN NLDX; CSA

Coil Voltage 120V AC

Coil Volts 120V AC

Contactor Application non-reversing

Contactor Style NEMA

Control Circuit separate control circuit

Control Type no control units

Country of Origin (subject to change) Mexico

Depth 4.22 in

Electrical Connection screw clamp terminals

Embedded Surge Suppressor No

Enclosure NEMA Rating No Enclosure

Frame / Series / Class / Code Class 8502

Frequency 50/60 Hz

Full Load Amps 9 A

Full Load Current - Inductive 9 A

Height 4.34 in

Horsepower @ Single Phase - 240V AC 1 1/2 hp

Horsepower @ Three Phase - 208V AC 1 1/2 hp

Horsepower @ Three Phase - 240V AC 1 1/2 hp

Horsepower @ Three Phase - 480V AC 2 hp

Horsepower @ Three Phase - 600V AC 2 hp

Horsepower Rating 1.5 HP 200 V AC; 1.5 HP 230 V AC; 2 HP 460 V AC; 2 HP 575 V AC

HP @ 3 Phase - 208V 1 1/2 hp

HP @ 3 Phase - 240V 1 1/2 hp

HP @ 3 Phase - 480V 2 hp

HP @ 3 Phase - 575V 2 hp

Hz_ 50/60

Includes Auxiliary Contacts No

Line Rated Current 9A

Local Signalling no indicator

Maximum Voltage Rating 600V AC

NEMA Contactor Size 00

Nema Degree Of Protection not rated (open device)

NEMA Enclosure Material Not Applicable

NEMA Enclosure Rating No Enclosure

NEMA Size 0

Number of Auxillary Contacts 0

Number of Poles 3

Overall Depth 4.22 in

Overall Height 4.34 in

Overall Width 3.22 in

Package Quantity 1

Phase Three

Poles Description 3P

Product Certifications UL listed file E78351 CCN NLDX || CSA

Product Compatibility circuit-breaker 70 A maximum, SCCR: 100 kA at 480 V AC || fuse J 60 A maximum, SCCR: 100 kA at 600 V AC || fuse T 60 A maximum, SCCR: 100 kA at 600 V AC || fuse RK1 60 A maximum, SCCR: 100 kA at 600 V AC || fuse RK5 60 A maximum, SCCR: 100 kA at 600 V AC

Product Or Component Type contactor

Rated Current 9 A

Rated Power In Hp 1.5 HP 200 V AC || 1.5 HP 230 V AC || 2 HP 460 V AC || 2 HP 575 V AC

Reversing No

Reversing Capability Non-Reversing

Series 8502

Short Circuit Current Rating Circuit-breaker 70 A maximum, SCCR: 100 kA at 480 V AC; Fuse J 60 A maximum, SCCR: 100 kA at 600 V AC; Fuse T 60 A maximum, SCCR: 100 kA at 600 V AC; Fuse RK1 60 A maximum, SCCR: 100 kA at 600 V AC; Fuse RK5 60 A maximum, SCCR: 100 kA at 600 V AC

Standards CSA, UL E78351 CCN NLDX

Terminal Connection Type Screw Terminals

Width 3.22 in

[Uc] Control Circuit Voltage 120 V AC 60 Hz || 110 V AC 50 Hz

[Ue] Rated Operational Voltage 600 V AC
