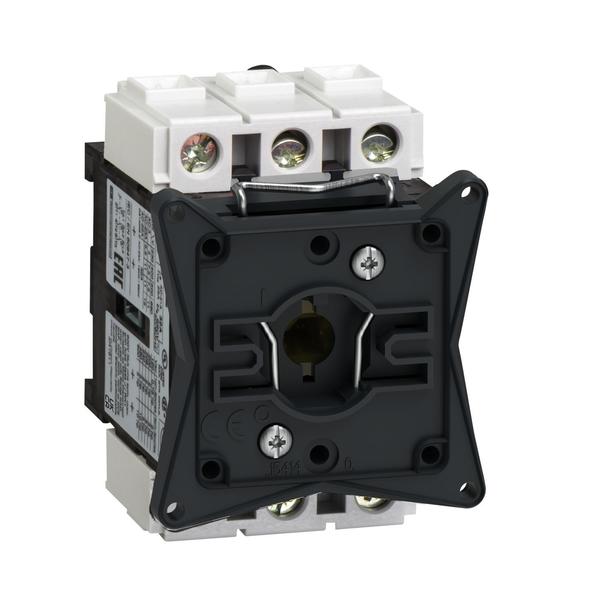

16 Amp Switch Body

SKU
Brand Square D
Categories
Description 16 Amp Switch Body
graingerSKU: , mscSKU: 69678225, zoro_no: G0852735, mongo_id: 65bbe94a22d7a989a9945f6b

Web Price

$95.56 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-50ÃÂ°C

Amps 16

Breaking Capacity 200 A 400 V AC-21A) || 200 A 400 V AC-22A) || 200 A 400 V AC-23A)

Connections - Terminals power circuit screw clamp terminals 10-10 mmÃÂ² solid || power circuit screw clamp terminals 6-6 mmÃÂ² flexible - with cable end

Contacts Type And Composition 3 NO

Country of Origin (subject to change) Czechia

Depth 60 mm

Device Short Name V

Electrical Durability 100000 cycles AC-21 || 30000 cycles DC-1 to 5

Fire Resistance 960ÃÂ°C IEC 60695-2-1

Height 74 mm

Iec Rated Operational Power in W 11 kW 690 V AC-23A); 3 kW 230 to 240 V AC-3); 4 kW 400 to 415 V AC-3); 5.5 kW 500 V AC-3); 7.5 kW 500 V AC-23A); 7.5 kW 690 V AC-3); 4 kW 230 to 240 V AC-23A); 5.5 kW 400 to 415 V AC-23A)

IEC Terminal Connection Power circuit screw clamp terminals 0.02 inÃÂ² (10 mmÃÂ²) solid; Power circuit screw clamp terminals 0.01 inÃÂ² (6 mmÃÂ²) flexible - with cable end

Intermittent Duty Class 30

Ip Degree Of Protection IP20 conforming to IEC 60529

Making Capacity 200 A 400 V AC-21A || 200 A 400 V AC-22A || 200 A 400 V AC-23A

Mechanical Durability 100000 cycles

Mechanical Robustness vibrations 10 to 150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27

Mounting Support symmetrical rail || plate

Network Frequency 50/60 Hz

Network Type AC || DC

Package Quantity 1

Performance Level high performance

Poles Description 3P

Product Certifications UL || CSA || GL || UKCA || CCC

Product Name TeSys VARIO

Product Or Component Type switch body

Protective Treatment TC

Range TeSys

Rated Conditional Short Circuit Current 10 kA 400 V 20 A aM; 10 kA 400 V 20 A gG

Rated Conditional Short-Circuit Current 10 kA 400 V 20 A aM || 10 kA 400 V 20 A gG

Rated Operational Power In W 11 kW 690 V AC-23A) || 3 kW 230 to 240 V AC-3) || 4 kW 400 to 415 V AC-3) || 5.5 kW 500 V AC-3) || 7.5 kW 500 V AC-23A) || 7.5 kW 690 V AC-3) || 4 kW 230 to 240 V AC-23A) || 5.5 kW 400 to 415 V AC-23A)

Standards IEC 60947-3

Suitability For Isolation yes

Tightening Torque power circuit 2.1-2.1 N.m screw clamp terminals

Width 55 mm

[Icm] Rated Short-Circuit Making Capacity 1 kA 400 V at Ipeak

[Icw] Rated Short-Time Withstand Current 300 A 400 V 1 s

[Ie] Rated Operational Current 11 A AC-23 Ue: 400 V

[Ithe] Conventional Enclosed Thermal Current 16 A

[Ith] Conventional Free Air Thermal Current 20 A

[Ue] Rated Operational Voltage 690 V AC 50/60 Hz

[Uimp] Rated Impulse Withstand Voltage 8 kV
