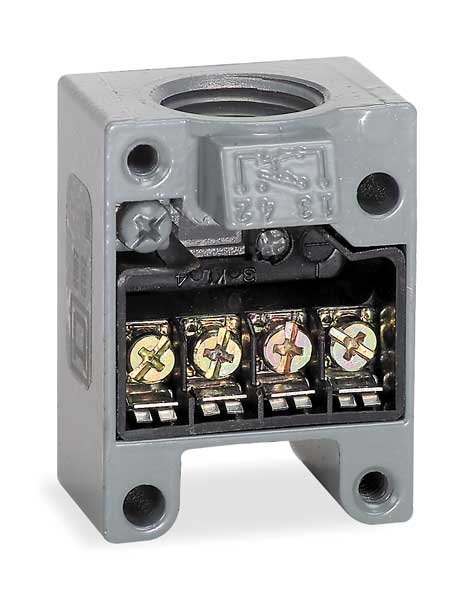

1NC/1NO Limit Switch Base

SKU
Brand Square D
Categories
Description Limit Switch Base, Contact Form 1NO/1NC, Material of Construction Zinc Die Cast, Conduit Size 1/2 In.-14 NPT, For Use With Mfr. No. SPDT Series
graingerSKU: 2EG21, mscSKU: , zoro_no: G3140085, mongo_id: 65bbe74d3aaddbd5a9087440

Web Price

$52.36 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-185ÃÂ°F standard environment

Ambient Air Temperature For Storage -20-185ÃÂ°F

Associated Connection Component 9007CO52

Associated Head 9007C

Body Material Zinc Die Cast

Body Type compact plug-in

Cable Entry 1 entry for 1/2 - 14 NPT ANSI B1.20.1

Conduit Size 1/2-14 NPT

Contact Form 1NC/1NO

Country of Origin (subject to change) Mexico

Depth 0.9 in

Device Short Name 9007C

Electrical Connection screw-clamp terminals AWG 22 to AWG 12), 1-2

Electrical Shock Protection Class class 0 IEC 61140

Environmental Characteristic standard environment

For Use With Mfr. No. SPDT Series

Height 2.26-2.26 in

Ip Degree Of Protection IP67 conforming to IEC 60529

Material of Construction Zinc Die Cast

Mechanical Durability 10000000 cycles

Nema Degree Of Protection NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250

Package Quantity 1

Product Compatibility 9007C

Product Or Component Type limit switch base

Protective Treatment epoxy powder coat

Series Name heavy duty

Shock Resistance 60 gn 9 ms IEC 60068-2-27

Vibration Resistance 25 gn 10-150 Hz)IEC 60068-2-6

Width 1.55 in
