Home / 20Amp Swkit W/Single Hole Mtgred/Yellow

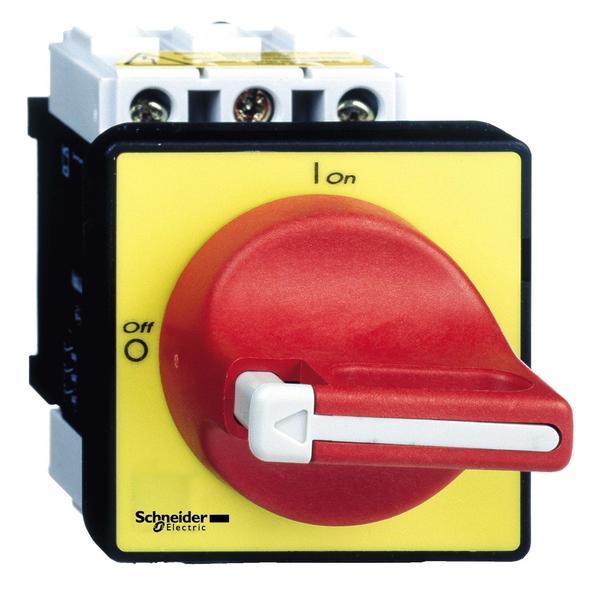

20Amp Swkit W/Single Hole Mtgred/Yellow

SKU
Brand Square D
Categories
Description 20Amp Swkit W/Single Hole Mtgred/Yellow, 60 mm, 2 Position, Maintained / Maintained Action, 3NO Contact Form, Type of Operator Knob, Color Red, No Key Key Removal, Operator Head Material Plastic, Basic Material Plastic, Bezel Material Plastic, Bezel Color Yellow, NEMA Rating 1, 12, IP Rating 65, Standards IEC 60947-3
graingerSKU: 48U409, mscSKU: , zoro_no: G0861765, mongo_id: 65bbe7733aaddbd5a90958c8

Web Price

$262.49 / each

Qty

Product Details

Action Maintained / Maintained

Ambient Air Temperature For Operation -20-50ÃÂ°C

Base Dimension 60 x 60 mm

Basic Material Plastic

Bezel Color Yellow

Bezel Material Plastic

Breaking Capacity 250 A 400 V AC-21A) || 250 A 400 V AC-22A) || 250 A 400 V AC-23A)

Color Red

Compatibility Code main switch disconnector

Connections - Terminals power circuit screw clamp terminals 10-10 mmÃÂ² solid || power circuit screw clamp terminals 6-6 mmÃÂ² flexible - with cable end

Contact Form 3NO

Contacts Type And Composition 3 NO

Control Type rotary handle

Country of Origin (subject to change) Czechia

Device Composition switch || handle

Device Short Name VCD

Electrical Durability 100000 cycles AC-21 || 30000 cycles DC-1 to 5

Fire Resistance 960ÃÂ°C IEC 60695-2-1

Fixing Mode hole 22.5 mm handle

Handle Colour red

Handle Front Plate Colour yellow

Height 74 mm

Intermittent Duty Class 30

Ip Degree Of Protection IP20 conforming to IEC 60529 || IP65

IP Rating 65

Key Removal No Key

Making Capacity 320 A 400 V AC-21A || 320 A 400 V AC-22A || 320 A 400 V AC-23A

Marking 0 - 1

Mechanical Durability 100000 cycles

Mechanical Robustness vibrations 10 to 150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27

Mounting Support handle door || switch door

NEMA Rating 1, 12

Network Type DC || AC

Operator Head Material Plastic

Package Quantity 1

Performance Level high performance

Poles Description 3P

Position 2

Product Certifications GL || CCC || CSA || UL || UKCA

Product Name TeSys VARIO

Product Or Component Type emergency stop switch disconnector

Protective Treatment TC

Range TeSys

Rated Conditional Short-Circuit Current 10 kA 400 V 35 A aM || 10 kA 400 V 35 A gG

Rated Operational Power In W 11 kW 500 V AC-23A) || 15 kW 690 V AC-23A) || 7.5 kW 500 V AC-3) || 7.5 kW 690 V AC-3) || 1.5 kW 230 to 240 V AC-3) || 5.5 kW 230 to 240 V AC-23A) || 11 kW 400 to 415 V AC-23A) || 7.5 kW 400 to 415 V AC-3)

Rotary Handle Mounting Style direct

Rotary Handle Padlocking 1 to 3 padlocks 4-8 mm

Size 60 mm

Standards IEC 60947-3

Suitability For Isolation yes

Tightening Torque power circuit 2.1-2.1 N.m screw clamp terminals

Type of Operator Knob

Width 60 mm

[Icm] Rated Short-Circuit Making Capacity 1 kA 400 V at Ipeak

[Icw] Rated Short-Time Withstand Current 384 A 400 V 1 s

[Ie] Rated Operational Current 21.8 A AC-23 Ue: 400 V

[Ithe] Conventional Enclosed Thermal Current 25 A
