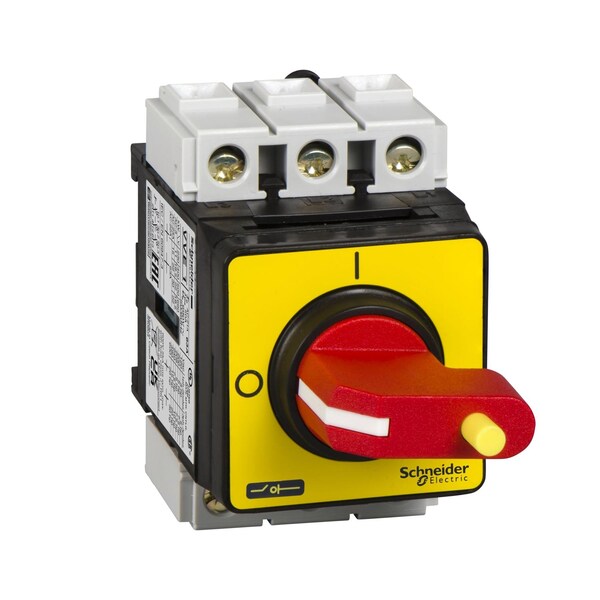

25Amp Sw Kit W/Red/Yellow Operattached

SKU
Brand Square D
Categories
Description 25Amp Sw Kit W/Red/Yellow Operattached
graingerSKU: , mscSKU: , zoro_no: G0861835, mongo_id: 65bbe89c22d7a989a9905222

Web Price

$217.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-50ÃÂ°C

Base Dimension 45 x 45 mm

Breaking Capacity 320 A 400 V AC-21A) || 320 A 400 V AC-22A) || 320 A 400 V AC-23A)

Compatibility Code main switch disconnector

Connections - Terminals power circuit screw clamp terminals 10-10 mmÃÂ² solid || power circuit screw clamp terminals 6-6 mmÃÂ² flexible - with cable end

Contacts Type And Composition 3 NO

Control Type rotary handle

Country of Origin (subject to change) Czechia

Degree Of Protection IP65; IP65 conforming to IEC 60529

Depth 106 mm

Device Composition switch || handle

Device Short Name VVE

Electrical Durability 100000 cycles AC-21 || 30000 cycles DC-1 to 5

Fire Resistance 960ÃÂ°C IEC 60695-2-1

Fixing Mode by clips switch || by screws switch

Handle Colour red

Handle Front Plate Colour yellow

Height 74 mm

Iec Rated Operational Power in W 11 kW 690 V AC-3); 15 kW 690 V AC-23A); 11 kW 400 to 415 V AC-3); 15 kW 500 V AC-3); 18.5 kW 500 V AC-23A); 5.5 kW 230 to 240 V AC-3); 7.5 kW 230 to 240 V AC-23A); 15 kW 400 to 415 V AC-23A)

IEC Terminal Connection Power circuit screw clamp terminals 0.02 inÃÂ² (10 mmÃÂ²) solid; Power circuit screw clamp terminals 0.01 inÃÂ² (6 mmÃÂ²) flexible - with cable end

Intermittent Duty Class 30

Ip Degree Of Protection IP65 || IP65 conforming to IEC 60529

Making Capacity 400 A 400 V AC-21A || 400 A 400 V AC-22A || 400 A 400 V AC-23A

Marking 0 - 1

Mechanical Durability 100000 cycles

Mechanical Robustness vibrations 10 to 150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27

Mounting Method By clips switch; By screws switch

Mounting Support switch symmetrical rail || switch plate

Network Type AC || DC

Package Quantity 1

Performance Level high performance

Poles Description 3P

Product Certifications UL || GL || CSA || UKCA

Product Name TeSys VARIO

Product Or Component Type emergency stop switch disconnector

Protective Treatment TC

Range TeSys

Rated Conditional Short Circuit Current 10 kA 400 V 50 A aM; 10 kA 400 V 50 A gG

Rated Conditional Short-Circuit Current 10 kA 400 V 50 A aM || 10 kA 400 V 50 A gG

Rated Operational Power In W 11 kW 690 V AC-3) || 15 kW 690 V AC-23A) || 11 kW 400 to 415 V AC-3) || 15 kW 500 V AC-3) || 18.5 kW 500 V AC-23A) || 5.5 kW 230 to 240 V AC-3) || 7.5 kW 230 to 240 V AC-23A) || 15 kW 400 to 415 V AC-23A)

Rotary Handle Mounting Style direct

Rotary Handle Padlocking 1 padlock 4-6 mm

Standards IEC 60947-3

Suitability For Isolation yes

Tightening Torque power circuit 2.1-2.1 N.m screw clamp terminals

Width 55 mm

[Icm] Rated Short-Circuit Making Capacity 1 kA 400 V at Ipeak

[Icw] Rated Short-Time Withstand Current 480 A 400 V 1 s

[Ie] Rated Operational Current 29 A AC-23 Ue: 400 V

[Ithe] Conventional Enclosed Thermal Current 32 A

[Ith] Conventional Free Air Thermal Current 40 A

[Ue] Rated Operational Voltage 690 V AC 50/60 Hz
