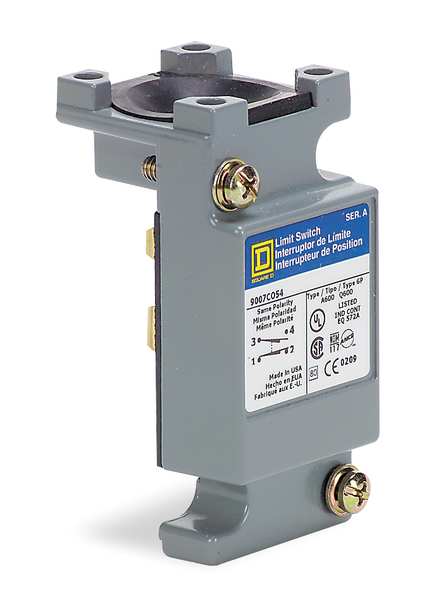

2NC/2NO Limit Switch Body Nema 1, 2, 4, 6, 6P, 12, 13

SKU
Brand Square D
Categories
Description Limit Switch Body, Contact Form 2NO/2NC, For Use With Type 9007 C Standard Limit Switches, AC Contact Rating 10A @ 600V AC, NEMA Rating 1, 12, 13, 2, 4, 6, 6P, Electrical Connection Plug In, IP Rating 65, 66, 67, Operating Temp. -20 Degrees to 185 Degrees F, Standards CE, CSA, UL
graingerSKU: 2EG13, mscSKU: , zoro_no: G1119763, mongo_id: 65bbe80f9a749db82276f480

Web Price

$178.74 / each

Qty

Product Details

AC Contact Rating 10A @ 600V AC

Ambient Air Temperature For Operation -20-185ÃÂ°F standard environment

Ambient Air Temperature For Storage -20-185ÃÂ°F

Associated Connection Component 9007CT62

Associated Head 9007C

Body Material zinc

Body Type standard plug-in

Contact Form 2NC/2NO

Contact Operation snap action

Contacts Material silver contacts

Contacts Type And Composition 2(NC-NO)

Country of Origin (subject to change) Multiple

Depth 1.79 in

Device Short Name 9007C

Electrical Connection Plug In

Electrical Durability 1000000 cycles

Electrical Shock Protection Class class 0 IEC 61140

Environmental Characteristic standard environment

For Use With Type 9007 C Standard Limit Switches

Height 3.14-3.14 in

Ip Degree Of Protection IP67 conforming to IEC 60529

IP Rating 65, 66, 67

Mechanical Durability 10000000 cycles

Nema Degree Of Protection NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250

NEMA Rating 1, 12, 13, 2, 4, 6, 6P

Number Of Poles 2

Number Of Steps 1

Operating Temp. -20 Degrees to 185 Degrees F

Package Quantity 1

Positive Opening without

Product Compatibility 9007C

Product Or Component Type limit switch plug-in unit

Protective Treatment epoxy powder coat

Series Name heavy duty

Shock Resistance 60 gn 9 ms IEC 60068-2-27

Short-Circuit Protection 10 A CC non-time delay

Standards CE, CSA, UL

Switch Function DPDT-DB

Terminals Description Iso NÃÂ°1 (5-6)NC || (7-8)NO || (3-4)NO || (1-2)NC

Vibration Resistance 25 gn 10-150 Hz)IEC 60068-2-6

Width 1.55 in

[Ie] Rated Operational Current 1.2 A 600 V AC, A600 NEMA rating designation || 1.5 A 480 V AC, A600 NEMA rating designation || 3 A 240 V AC, A600 NEMA rating designation || 6 A 120 V AC, A600 NEMA rating designation || 0.11 A 250 V DC, R300 NEMA rating designation || 0.55 A 125 V DC, R300 NEMA rating designation

[Ithe] Conventional Enclosed Thermal Current 10 A

[Uimp] Rated Impulse Withstand Voltage 2.5 kV AC 1 min CE || 2.2 kV AC 1 min UL || 2.64 kV AC 1 s CSA

[Ui] Rated Insulation Voltage 600 V 3)UL 508 contact block || 600 VCSA C22.2 No 14
