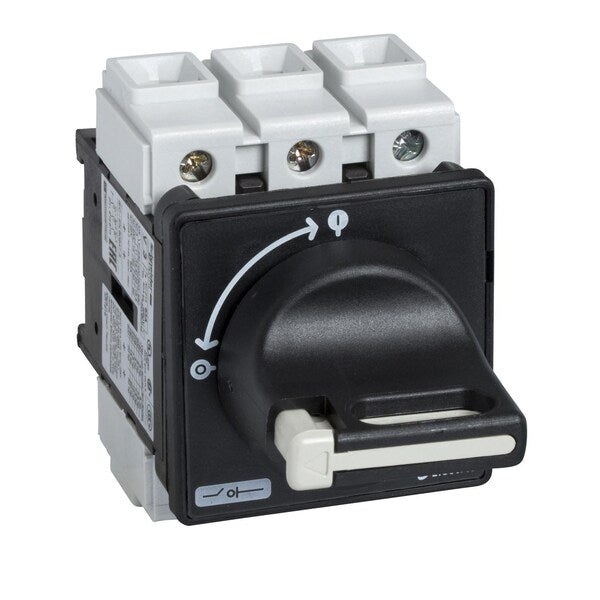

45A Sw Kit W/4 Hole Mtgblack/Gray Oper

SKU
Brand Square D
Categories
Description 45A Sw Kit W/4 Hole Mtgblack/Gray Oper
graingerSKU: 48U414, mscSKU: , zoro_no: G0861817, mongo_id: 65bbe6673aaddbd5a9029d88

Web Price

$336.24 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-50ÃÂ°C

Base Dimension 60 x 60 mm

Breaking Capacity 500 A 400 V AC-21A) || 500 A 400 V AC-22A) || 500 A 400 V AC-23A)

Compatibility Code main switch disconnector

Connections - Terminals power circuit screw clamp terminals 25-25 mmÃÂ² solid || power circuit screw clamp terminals 16-16 mmÃÂ² flexible - with cable end

Contacts Type And Composition 3 NO

Control Type rotary handle

Country of Origin (subject to change) Czechia

Device Application preventive maintenance

Device Composition switch || handle

Device Short Name VBF

Electrical Durability 30000 cycles AC-21 || 30000 cycles DC-1 to 5

Fire Resistance 960ÃÂ°C IEC 60695-2-1

Fixing Mode by 4 screws handle

Handle Colour black

Handle Front Plate Colour black

Height 83 mm

Intermittent Duty Class 30

Ip Degree Of Protection IP20 conforming to IEC 60529 || IP65

Making Capacity 630 A 400 V AC-21A || 630 A 400 V AC-22A || 630 A 400 V AC-23A

Marking 0 - 1

Mechanical Durability 30000 cycles

Mechanical Robustness vibrations 10 to 150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27

Mounting Support handle door || switch door

Network Type DC || AC

Package Quantity 1

Performance Level high performance

Poles Description 3P

Product Certifications CSA || UL || CCC || GL || UKCA

Product Name TeSys VARIO

Product Or Component Type switch disconnector

Protective Treatment TC

Range TeSys

Rated Conditional Short-Circuit Current 10 kA 400 V 63 A aM || 10 kA 400 V 63 A gG

Rated Operational Power In W 11 kW 230 to 240 V AC-3) || 22 kW 500 V AC-3) || 22 kW 690 V AC-23A) || 30 kW 500 V AC-23A) || 18.5 kW 400 to 415 V AC-3) || 18.5 kW 690 V AC-3) || 15 kW 230 to 240 V AC-23A) || 22 kW 400 to 415 V AC-23A)

Rotary Handle Mounting Style direct

Rotary Handle Padlocking 1 to 3 padlocks 4-8 mm

Standards IEC 60947-3

Suitability For Isolation yes

Tightening Torque power circuit 4-4 N.m screw clamp terminals

Width 60 mm

[Icm] Rated Short-Circuit Making Capacity 2.1 kA 400 V at Ipeak

[Icw] Rated Short-Time Withstand Current 756 A 400 V 1 s

[Ie] Rated Operational Current 41.5 A AC-23 Ue: 400 V

[Ithe] Conventional Enclosed Thermal Current 50 A

[Ith] Conventional Free Air Thermal Current 63 A

[Ue] Rated Operational Voltage 690 V AC 50/60 Hz
