Home / 600VAC Non-Reversing Contactor 2P 135A NEMA 4

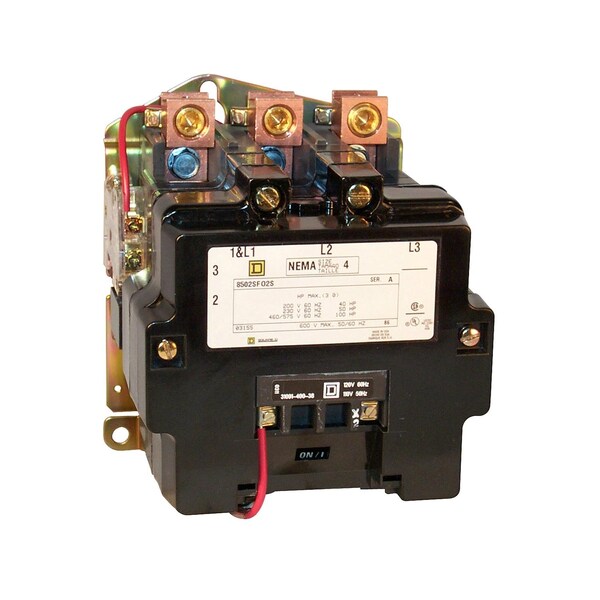

600VAC Non-Reversing Contactor 2P 135A NEMA 4

SKU
Brand Square D
Categories
Description Contactor 600Vac 135Amp Nema +Options
graingerSKU: , mscSKU: , zoro_no: G0848027, mongo_id: 65bbe6893aaddbd5a9038278

Web Price

$3,354.99 / each

Qty

Product Details

Action Non-Reversing

Auxiliary Contact Composition without

Certifications UL listed file E78351 CCN NLDX; CSA

Coil Voltage 480 V AC 60 Hz; 440 V AC 50 Hz

Coil Volts 600VAC

Contactor Application non-reversing

Control Circuit common control circuit

Control Type no control units

Country of Origin (subject to change) Mexico

Depth 165.10 mm

Electrical Connection screw clamp terminals

Full Load Amps 135

Height 208.03 mm

Line Rated Current 135 A

Local Signalling no indicator

Nema Degree Of Protection not rated (open device)

NEMA Size 4

Number of Poles 2

Package Quantity 1

Phase 1 phase

Poles Description 2P

Product Certifications UL listed file E78351 CCN NLDX || CSA

Product Compatibility circuit-breaker 225 A maximum, SCCR: 100 kA at 480 V AC || fuse J 200 A maximum, SCCR: 100 kA at 600 V AC || fuse T 200 A maximum, SCCR: 100 kA at 600 V AC || fuse RK1 200 A maximum, SCCR: 100 kA at 600 V AC || fuse RK5 200 A maximum, SCCR: 100 kA at 600 V AC

Product Or Component Type contactor

Rated Power In Hp not rated

Short Circuit Current Rating Circuit-breaker 225 A maximum, SCCR: 100 kA at 480 V AC; Fuse J 200 A maximum, SCCR: 100 kA at 600 V AC; Fuse T 200 A maximum, SCCR: 100 kA at 600 V AC; Fuse RK1 200 A maximum, SCCR: 100 kA at 600 V AC; Fuse RK5 200 A maximum, SCCR: 100 kA at 600 V AC

Width 152.40 mm

[Uc] Control Circuit Voltage 480 V AC 60 Hz || 440 V AC 50 Hz

[Ue] Rated Operational Voltage 600 V AC
