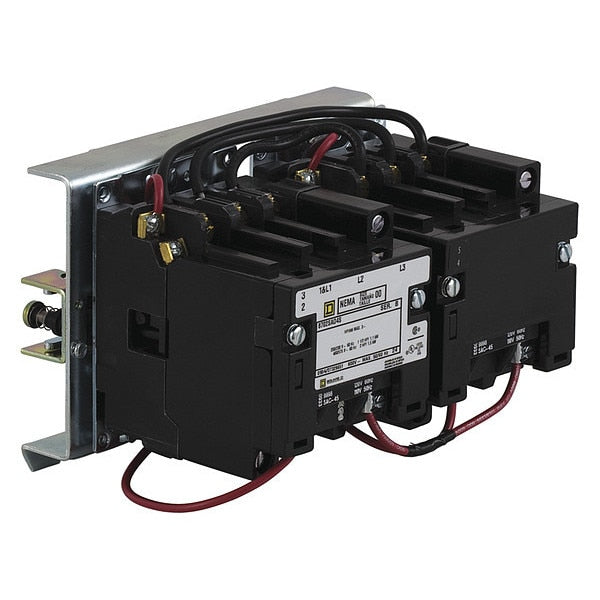

600VAC Reversing Contactor 3P 27A NEMA 1

SKU
Brand Square D
Categories
Description Reversing Contactor 600Vac 27A Nema
graingerSKU: , mscSKU: , zoro_no: G0568176, mongo_id: 65bbe6233aaddbd5a900d3b9

Web Price

$1,319.99 / each

Qty

Product Details

Action Reversing

Certifications UL Listed; CSA

Coil Voltage 110 V AC 50 Hz; 120 V AC 60 Hz

Coil Volts 600VAC

Condition Of Use horizontal

Contactor Application reversing

Control Circuit separate control circuit

Control Type no control units

Country of Origin (subject to change) Mexico

Depth 134.87 mm

Electrical Connection screw clamp terminals

Full Load Amps 27

Height 127.00 mm

Horsepower Rating 7.5 HP 200 V AC; 7.5 HP 230 V AC; 10 HP 460 V AC; 10 HP 575 V AC

Line Rated Current 27 A

Local Signalling no indicator

Nema Degree Of Protection not rated (open device)

NEMA Size 1

Number of Poles 3

Package Quantity 1

Phase 3 phase

Poles Description 3P

Product Certifications UL Listed || CSA

Product Or Component Type contactor

Rated Power In Hp 7.5 HP 200 V AC || 7.5 HP 230 V AC || 10 HP 460 V AC || 10 HP 575 V AC

Short Circuit Current Rating Circuit-breaker 70 A maximum, SCCR: 100 kA at 480 V AC; Fuse J 60 A maximum, SCCR: 100 kA at 600 V AC; Fuse T 60 A maximum, SCCR: 100 kA at 600 V AC; Fuse RK1 60 A maximum, SCCR: 100 kA at 600 V AC; Fuse RK5 60 A maximum, SCCR: 100 kA at 600 V AC

Width 181.10 mm

Wiring Mode 3 wires

[Uc] Control Circuit Voltage 110 V AC 50 Hz || 120 V AC 60 Hz

[Ue] Rated Operational Voltage 600 V AC
