Home / 600VAC Reversing Contactor 3P 45A NEMA 2

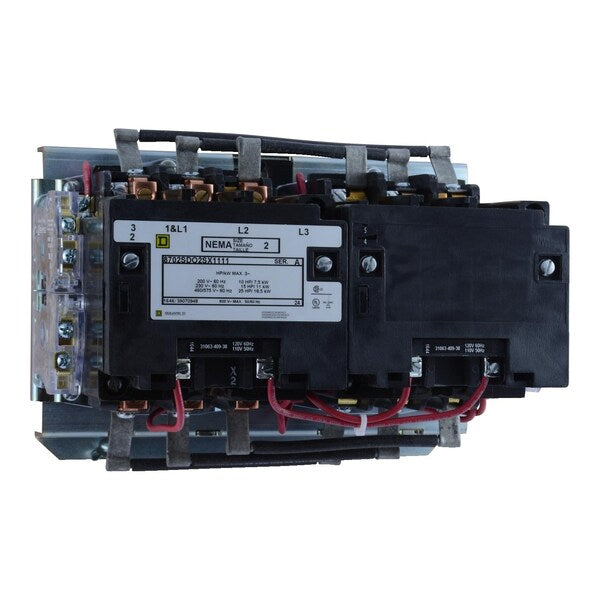

600VAC Reversing Contactor 3P 45A NEMA 2

SKU
Brand Square D
Categories
Description Reversing Contactor 600Vac 45Amp Nema
graingerSKU: , mscSKU: , zoro_no: G0848036, mongo_id: 65bbe89c22d7a989a9905221

Web Price

$2,409.99 / each

Qty

Product Details

Action Reversing

Certifications UL Listed; CSA

Coil Voltage 110 V AC 50 Hz; 120 V AC 60 Hz

Coil Volts 600VAC

Condition Of Use horizontal

Contactor Application reversing

Control Circuit separate control circuit

Control Type no control units

Country of Origin (subject to change) Mexico

Depth 153.16 mm

Electrical Connection screw clamp terminals

Full Load Amps 45

Height 174.75 mm

Horsepower Rating 10 HP 200 V AC; 15 HP 230 V AC; 25 HP 460 V AC; 25 HP 575 V AC

Line Rated Current 45 A

Local Signalling no indicator

Nema Degree Of Protection not rated (open device)

NEMA Size 2

Number of Poles 3

Package Quantity 1

Phase 3 phase

Poles Description 3P

Product Certifications UL Listed || CSA

Product Or Component Type contactor

Rated Power In Hp 10 HP 200 V AC || 15 HP 230 V AC || 25 HP 460 V AC || 25 HP 575 V AC

Short Circuit Current Rating Circuit-breaker 100 A maximum, SCCR: 100 kA at 480 V AC; Fuse J 100 A maximum, SCCR: 100 kA at 600 V AC; Fuse T 100 A maximum, SCCR: 100 kA at 600 V AC; Fuse RK1 100 A maximum, SCCR: 100 kA at 600 V AC; Fuse RK5 100 A maximum, SCCR: 100 kA at 600 V AC

Width 228.60 mm

Wiring Mode 3 wires

[Uc] Control Circuit Voltage 110 V AC 50 Hz || 120 V AC 60 Hz

[Ue] Rated Operational Voltage 600 V AC
