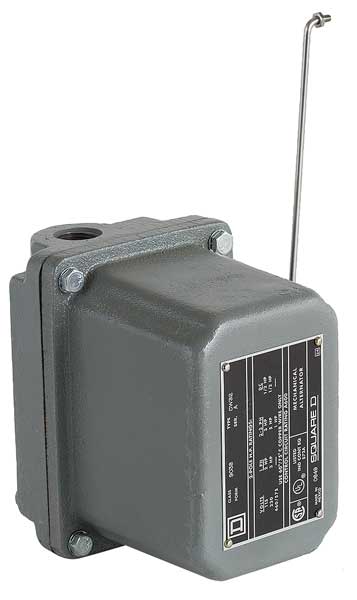

Home / Alternator Lqd Lvl Swch, 2-1/2" MNPT
Alternator Lqd Lvl Swch, 2-1/2

Alternator Lqd Lvl Swch, 2-1/2" MNPT

  • Square D
  • Alternator Tank Liquid Level Switch, Switch Function Close On Rise, Side Mounting, Float Position Left, Float Rod Angle 90 Degrees , Float Travel 6 1/2 in, Tank Connection Size 2-1/2 in MNPT, NEMA Rating 4, Contact Form DPST, Operating Temp. Range -22 Degrees to 200 Degrees F, Max. Pressure 50 psi, Overall Length 17.81 in, Float Material Stainless Steel, Float Length 7.0 in, Float Dia. 2.5 in, Stem Material Stainless Steel, Stem Length 4.0 in, Height 5.94 in, Width 6.84 in, Max. Voltage 475 V

    graingerSKU: 2FJ14, mscSKU: , zoro_no: G6446045, mongo_id: 65bbe94a22d7a989a9945f64

Web Price
$1,384.99 / each
Qty

Product Details

-22-220°F
-22-220°F
Steel
2 conduit entries for 3/4-14 NPT UL 508
2 3/4 in
DPST
contacts close on liquid rise
4 NC, snap action, DPST-DB, Form YY
fresh water specific gravity of 0.85 in or higher 0-220°F || sea water specific gravity of 0.85 in or higher 0-220°F || hydraulic oil specific gravity of 0.85 in or higher 0-220°F || corrosive fluid specific gravity of 0.85 in or higher 0-220°F
Mexico
closed tank with bushing
screw-in bushing
9038C
power circuit
screw-clamp terminals 10 AWG
Screw Clamp
100 cycles 60 cyc/mn
Cast Aluminium
without
2.5 in
7.0 in
Stainless Steel
6.5...13 in adjustable
Left
90 Degrees
6 1/2 in
5.94 in
2 hp
3 hp
5 hp
Rod and Float
float switch || float || rod
with external pointer
nitrile (Buna-N) or equivalent rubber || cast iron || stainlesss steel 304 || yellow brass || stainless steel 316
600 A
50 PSI
475 V
60 cyc/mn
300 cycles
1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.7 kW 5 hp)230 V AC, 3 phase || 0.75 kW 1 hp)460 V AC, 3 phase || 0.75 kW 1 hp)475 V AC, 3 phase || 0.18 kW 0.25 hp)32 V DC || 0.37 kW 0.5 hp)115 V DC || 0.37 kW 0.5 hp)230 V DC
Side
NEMA 4 UL 50
4
vertical position only
-22 Degrees to 200 Degrees F
17.81 in
1
CSA file LR25490 || UL listed file E12158
for closed tank
mechanical alternator
mechanically alternating the operation of two pumps or motors
Not eligible for promotion
20 A cartridge fuse gG
CSA, UL
4.0 in
Stainless Steel
Close on Rise
2-1/2 in MNPT
8 terminals
line-load-load-line
6.84 in
575 V UL 508
