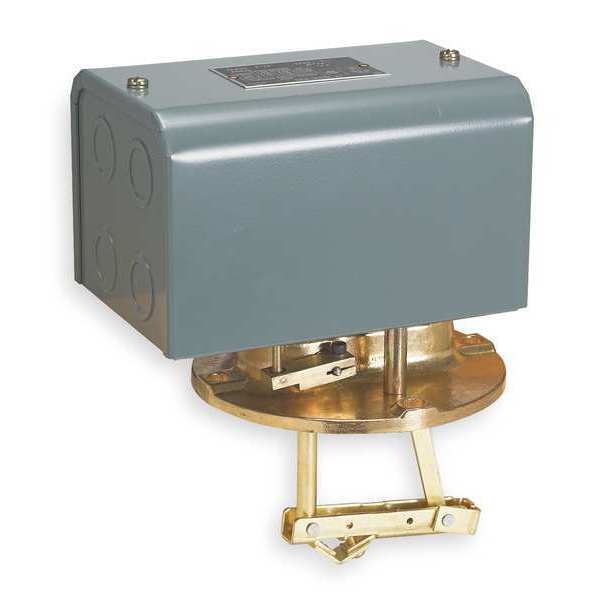

Alternator Lqd Lvl Swch, 5-1/8", ClsOnRise

SKU
Brand Square D
Categories
Description Alternator Liquid Level Switch, Switch Function Close On Rise, Vertical Open Tank Mounting, Float Travel 8 3/4 in, NEMA Rating 1, Tank Connection Size 5-1/8 in, Max. Pressure 50 psi, Operating Temp. Range -22 Degrees to 200 Degrees F, Overall Length 3.86 in, Height 4.87 in, Width 6.84 in, Contact Form DPST, Max. Current 600 A, Max. Voltage 575 V, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp, HP @ 3 Phase - 240V 5 hp, Body Material Steel, Float Position Below, Float Rod Angle 45 Degrees
graingerSKU: 2FJ17, mscSKU: , zoro_no: G6920907, mongo_id: 65bbe8fd22d7a989a9929517

Web Price

$756.24 / each

Qty

Product Details

Ambient Air Temperature For Operation -22-220ÃÂ°F

Ambient Air Temperature For Storage -22-220ÃÂ°F

Body Material Steel

Cable Entry Number 8 knock-outs for 1/2 or 3/4conduit UL 508

Conduit Size 1/2 in to 3/4 in

Contact Form DPST

Contact Operation contacts close on liquid rise

Contacts Type And Composition 4 NC, snap action, DPST-DB, Form YY

Controlled Fluid fresh water specific gravity of 0.85 in or higher 0-220ÃÂ°F || sea water specific gravity of 0.85 in or higher 0-220ÃÂ°F || hydraulic oil specific gravity of 0.85 in or higher 0-220ÃÂ°F || corrosive fluid specific gravity of 0.85 in or higher 0-220ÃÂ°F

Country of Origin (subject to change) Mexico

Depth 4.47 in

Device Application top mounted closed tank

Device Mounting flange

Device Short Name 9038D

Electrical Circuit Type power circuit

Electrical Connection screw-clamp terminals 10 AWG

Electrical Connections Screw Clamp

Electrical Durability 100 cycles 60 cyc/mn

Enclosure Material painted cold-rolled steel

Factory Modification without

Float Movement variable fixed

Float Position Below

Float Rod Angle 45 Degrees

Float Travel 8 3/4 in

Height 4.87 in

HP @ 1 Phase - 120V 2 hp

HP @ 1 Phase - 240V 3 hp

HP @ 3 Phase - 240V 5 hp

Kit Composition float switch || rod and float are to be choosen in accessories

Length 4.69 in

Local Signalling without

Materials In Contact With Fluid stainlesss steel 304 || nitrile (Buna-N) or equivalent rubber || yellow brass || stainless steel 316

Max. Current 600 A

Max. Pressure 50 PSI

Max. Voltage 575 V

Maximum Operating Rate 60 cyc/mn

Mechanical Durability 300 cycles

Motor Power Kw 1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.7 kW 5 hp)230 V AC, 3 phase || 0.75 kW 1 hp)460 V AC, 3 phase || 0.75 kW 1 hp)475 V AC, 3 phase || 0.18 kW 0.25 hp)32 V DC || 0.37 kW 0.5 hp)115 V DC || 0.37 kW 0.5 hp)230 V DC

Mounting Vertical Open Tank

Nema Degree Of Protection NEMA 1 UL 50

NEMA Rating 1

Operating Position vertical position only

Operating Temp. Range -22 Degrees to 200 Degrees F

Overall Length 3.86 in

Package Quantity 1

Product Certifications UL listed file E12158 || CSA file LR25490

Product Destination for open tank or sump

Product Or Component Type mechanical alternator

Product Specific Application liquid level control

Promotion Restriction Not eligible for promotion
