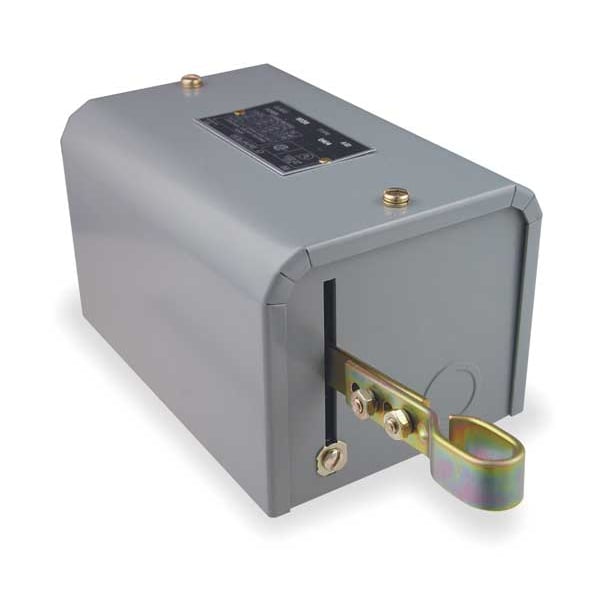

Alternator Lqd Lvl Swch, Vrtcl Open Tank

SKU
Brand Square D
Categories
Description Alternator Open Liquid Level Switch, 10 A Amps, Contact Form DPST, VA Rating 460V AC, Float Travel 1 1/4 in, NEMA Rating 1, Operating Temp. Range -22 Degrees to 220 Degrees F, Switch Function Close On Rise, Overall Length 10.32 in, Float Material Stainless Steel, Float Length 7 in, Float Dia. 7 in, Height 4.5 in, Width 4.69 in, Max. Current 600 A, Max. Voltage 600, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp, HP @ 3 Phase - 240V 5 hp, Open Tank Mounting, Body Material Steel
graingerSKU: 3DZX9, mscSKU: , zoro_no: G0317231, mongo_id: 65bbe6bf3aaddbd5a904df38

Web Price

$329.99 / each

Qty

Product Details

Amps 10 A

Body Material Steel

Conduit Size 4 1/2 in, 4 3/4 in

Contact Form DPST

Country of Origin (subject to change) Mexico

Device Short Name A

Electrical Connection screw clamp terminal

Electrical Connections Screw Clamp

Enclosure Type standard environment enclosure indoor

Features Requires Special Operating Force, 9 Oz. Must Operate One Unit and Additional 6 Oz Must Operate Second Unit

Float Dia. 7 in

Float Length 7 in

Float Material Stainless Steel

Float Position Below

Float Travel 1 1/4 in

Height 4.5 in

HP @ 1 Phase - 120V 2 hp

HP @ 1 Phase - 240V 3 hp

HP @ 3 Phase - 240V 5 hp

Includes Mechanical Alternator

Material stainless steel float/rod || nitrile (Buna-N) seal ring

Max. Current 600 A

Max. Voltage 600

Maximum Horse Power Rating 3-3 hp 230 V AC, 1 phase || 5-5 hp 230 V AC, 3 phase || 1-1 hp 460/575 V AC, 3 phase || 3-3 hp 115 V AC, 1 phase || 2-2 hp 115 V AC, 3 phase

Mounting Open Tank

Mounting Support flange

Nema Degree Of Protection NEMA 1

NEMA Rating 1

Number Of Poles 2

Operating Temp. Range -22 Degrees to 220 Degrees F

Overall Length 10.32 in

Package Quantity 1

Permissible Voltage 575 V AC

Product Specific Application mechanically alternating the operation of two pumps or motors

Standards CSA, UL

Switch Application standard
