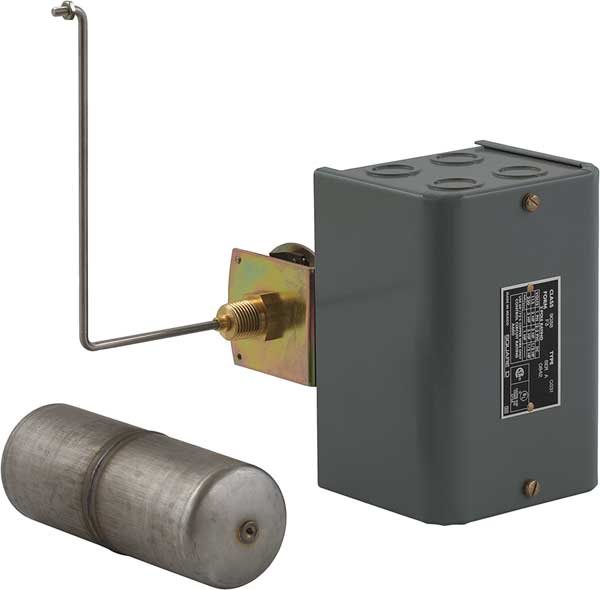

Altrntr Lqd Lvl Swch, Hrzntl, -22to 220F

SKU
Brand Square D
Categories
Description Alternator Tank Liquid Level Switch, Switch Function Close On Rise, Side Mounting, Float Position Right, Float Rod Angle 90 Degrees , Float Travel 6 1/2 in, Tank Connection Size 2-1/2 in MNPT, NEMA Rating 1, Contact Form DPST, Operating Temp. Range -22 Degrees to 220 Degrees F, Max. Pressure 50 psi, Overall Length 17.81 in, Float Material Stainless Steel, Float Length 7.0 in, Float Dia. 2.5 in, Stem Material Stainless Steel, Stem Length 4.0 in, Height 5.94 in, Width 6.84 in, Max. Voltage 475 V
graingerSKU: 3DZY6, mscSKU: , zoro_no: G1145724, mongo_id: 65bbee0c526e052139ae6a85

Web Price

$566.24 / each

Qty

Product Details

Ambient Air Temperature For Operation -22-220ÃÂ°F

Ambient Air Temperature For Storage -22-220ÃÂ°F

Body Material Steel

Cable Entry Number 8 knock-outs for 1/2 or 3/4conduit UL 508

Conduit Size 8 1/2 in, 8 3/4 in

Contact Form DPST

Contact Operation contacts close on liquid rise

Contacts Type And Composition 4 NC, snap action, DPST-DB, Form YY

Controlled Fluid fresh water specific gravity of 0.85 in or higher 0-220ÃÂ°F || sea water specific gravity of 0.85 in or higher 0-220ÃÂ°F || hydraulic oil specific gravity of 0.85 in or higher 0-220ÃÂ°F || corrosive fluid specific gravity of 0.85 in or higher 0-220ÃÂ°F

Country of Origin (subject to change) Mexico

Device Application closed tank with bushing

Device Mounting screw-in bushing

Device Short Name 9038C

Electrical Circuit Type power circuit

Electrical Connection screw-clamp terminals 10 AWG

Electrical Connections Screw Clamp

Electrical Durability 100 cycles 60 cyc/mn

Enclosure Material painted cold-rolled steel

Factory Modification omit 2.5 inch bushing

Float Dia. 2.5 in

Float Length 7.0 in

Float Material Stainless Steel

Float Movement 4...7.75 in adjustable

Float Position Right

Float Rod Angle 90 Degrees

Float Travel 6 1/2 in

Height 5.94 in

HP @ 1 Phase - 120V 2 hp

HP @ 1 Phase - 240V 3 hp

HP @ 3 Phase - 240V 5 hp

Includes Rod and Float - Omit Bushing

Kit Composition rod || float || float switch

Local Signalling with external pointer

Materials In Contact With Fluid cast iron || nitrile (Buna-N) or equivalent rubber || stainlesss steel 304 || stainless steel 316 || yellow brass

Max. Current 600 A

Max. Pressure 50 PSI

Max. Voltage 475 V

Maximum Operating Rate 60 cyc/mn

Mechanical Durability 300 cycles

Motor Power Kw 1.5 kW 2 hp)115 V AC, 1 phase || 2.2 kW 3 hp)115 V AC, 3 phase || 2.2 kW 3 hp)230 V AC, 1 phase || 3.7 kW 5 hp)230 V AC, 3 phase || 0.75 kW 1 hp)460 V AC, 3 phase || 0.75 kW 1 hp)475 V AC, 3 phase || 0.18 kW 0.25 hp)32 V DC || 0.37 kW 0.5 hp)115 V DC || 0.37 kW 0.5 hp)230 V DC

Mounting Side

Nema Degree Of Protection NEMA 1 UL 50

NEMA Rating 1

Operating Position vertical position only

Operating Temp. Range -22 Degrees to 220 Degrees F

Overall Length 17.81 in

Package Quantity 1

Product Certifications CSA file LR25490 || UL listed file E12158

Product Destination for closed tank

Product Or Component Type mechanical alternator

Product Specific Application mechanically alternating the operation of two pumps or motors
