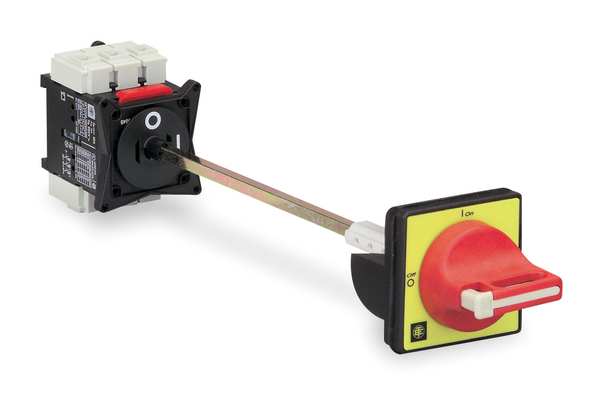

Door Mount Loadbreak Switch, 3 Pole, 25A

SKU
Brand Square D
Categories
Description Load Break Switch, Contact Form 3PST-NO, Current Rating 25 A, Features 4 Screw Fixing Handle, For Fuse Class Not Applicable, Handle Color Red, Height 3 in, Horsepower @ 240V AC 5 hp, Horsepower @ 480V AC 10 hp, Horsepower @ 600V AC 15 hp, Includes 320mm Extension Shaft, Door Interlock Plate, Handle, Line Terminal Shroud, Mounting Handle Operator, IP Rating IP20; IP65, Mounting Style Rear Panel, Number of Poles 3, Phase Three, Protection Method Non-Fusible, Resistance Properties Fire-Resistant
graingerSKU: , mscSKU: , zoro_no: G2522563, mongo_id: 65bbe61c3aaddbd5a900a6be

Web Price

$293.74 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-50ÃÂ°C

Amps AC 25 A

Application For Use Where Motor Branch Circuit Protection is Provided Upstream of the Switch

Base Dimension 60 x 60 mm

Breaking Capacity 320 A 400 V AC-21A) || 320 A 400 V AC-22A) || 320 A 400 V AC-23A)

Compatibility Code main switch disconnector

Connections - Terminals power circuit screw clamp terminals 10-10 mmÃÂ² solid || power circuit screw clamp terminals 6-6 mmÃÂ² flexible - with cable end

Contact Form 3PST-NO

Contacts Type And Composition 3 NO

Control Type rotary handle

Country of Origin (subject to change) Czechia

Current Rating 25 A

Device Composition handle || shaft extension || switch

Device Short Name VCCF

Door Handle Color Red

Electrical Durability 100000 cycles AC-21 || 30000 cycles DC-1 to 5

Features 4 Screw Fixing Handle

Fire Resistance 960ÃÂ°C IEC 60695-2-1

Fixing Mode by 4 screws handle || by clips switch || by screws switch

For Fuse Class Not Applicable

Fusible / Nonfusible Nonfusible

Handle Color Red

Handle Colour red

Handle Front Plate Colour yellow

Height 3 in

Horsepower @ 240V AC 5 hp

Horsepower @ 480V AC 10 hp

Horsepower @ 600V AC 15 hp

HP @ 240V 5 hp

HP @ 480V 10 hp

HP @ 600V 15 hp

Includes 320mm Extension Shaft, Door Interlock Plate, Handle, Line Terminal Shroud, Mounting Handle Operator

Intermittent Duty Class 30

Ip Degree Of Protection IP20 conforming to IEC 60529 || IP65

IP Rating IP20; IP65

Making Capacity 400 A 400 V AC-21A || 400 A 400 V AC-22A || 400 A 400 V AC-23A

Marking 0 - 1

Mechanical Durability 100000 cycles

Mechanical Robustness vibrations 10 to 150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27

Mounting Style Rear Panel

Mounting Support handle door || switch symmetrical rail || switch plate

Network Type AC || DC

Number of Poles 3

Package Quantity 1

Performance Level high performance

Phase Three

Poles Description 3P

Product Certifications UL || CSA || CCC || GL || UKCA

Product Name TeSys VARIO

Product Or Component Type emergency stop switch disconnector

Protection Method Non-Fusible

Protective Treatment TC

Range TeSys

Rated Conditional Short-Circuit Current 10 kA 400 V 50 A aM || 10 kA 400 V 50 A gG

Rated Operational Power In W 11 kW 690 V AC-3) || 15 kW 690 V AC-23A) || 11 kW 400 to 415 V AC-3) || 15 kW 500 V AC-3) || 18.5 kW 500 V AC-23A) || 5.5 kW 230 to 240 V AC-3) || 7.5 kW 230 to 240 V AC-23A) || 15 kW 400 to 415 V AC-23A)

Resistance Properties Fire-Resistant

Rotary Handle Mounting Style extended

Rotary Handle Padlocking 1 to 3 padlocks 4-8 mm

Shaft Length 13 in

Standards CCC, CSA Certified, GL, IEC 60947-3, UKCA, UL Listed

Suitability For Isolation yes

Tightening Torque power circuit 2.1-2.1 N.m screw clamp terminals

Voltage 690V AC

Voltage Rating 690V AC

Width 2 1/4 in

[Icm] Rated Short-Circuit Making Capacity 1 kA 400 V at Ipeak

[Icw] Rated Short-Time Withstand Current 480 A 400 V 1 s
