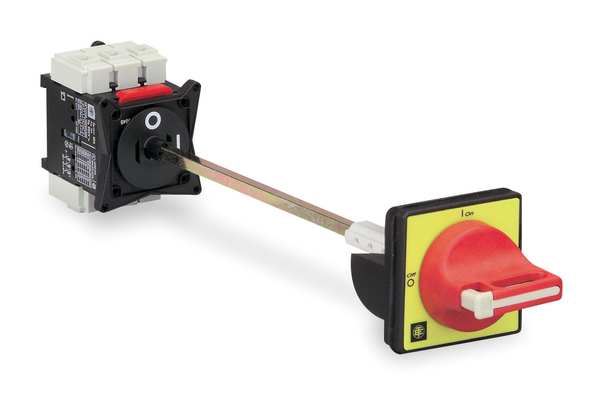

Door Mount Loadbreak Switch, 3 Pole, 45A

SKU
Brand Square D
Categories
Description Load Break Switch, Contact Form 3PST-NO, Current Rating 45 A, Features 4 Screw Fixing Handle, For Fuse Class Not Applicable, Handle Color Red, Height 3 1/4 in, Horsepower @ 240V AC 15 1/2 hp, Horsepower @ 480V AC 30 hp, Horsepower @ 600V AC 40 hp, Includes 320mm Extension Shaft, Door Interlock Plate, Handle, Line Terminal Shroud, Mounting Handle Operator, IP Rating IP20; IP65, Mounting Style Rear Panel, Number of Poles 3, Phase Three, Protection Method Non-Fusible
graingerSKU: 4B994, mscSKU: 69678050, zoro_no: G0642564, mongo_id: 65bbe7a23aaddbd5a90a813b

Web Price

$372.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-50ÃÂ°C

Amps AC 45 A

Application For Use Where Motor Branch Circuit Protection is Provided Upstream of the Switch

Base Dimension 60 x 60 mm

Breaking Capacity 500 A 400 V AC-21A) || 500 A 400 V AC-22A) || 500 A 400 V AC-23A)

Compatibility Code main switch disconnector

Connections - Terminals power circuit screw clamp terminals 25-25 mmÃÂ² solid || power circuit screw clamp terminals 16-16 mmÃÂ² flexible - with cable end

Contact Form 3PST-NO

Contacts Type And Composition 3 NO

Control Type rotary handle

Country of Origin (subject to change) Czechia

Current Rating 45 A

Degree Of Protection IP20 conforming to IEC 60529; IP65

Device Composition switch || handle || shaft extension

Device Short Name VCCF

Door Handle Color Red

Electrical Durability 30000 cycles AC-21 || 30000 cycles DC-1 to 5

Features 4 Screw Fixing Handle

Fire Resistance 960ÃÂ°C IEC 60695-2-1

Fixing Mode by 4 screws handle || by clips switch || by screws switch

For Fuse Class Not Applicable

Fusible / Nonfusible Nonfusible

Handle Color Red

Handle Colour red

Handle Front Plate Colour yellow

Height 3 1/4 in

Horsepower @ 240V AC 15 1/2 hp

Horsepower @ 480V AC 30 hp

Horsepower @ 600V AC 40 hp

HP @ 240V 15 1/2 hp

HP @ 480V 30 hp

HP @ 600V 40 hp

Iec Rated Operational Power in W 11 kW 230 to 240 V AC-3); 22 kW 500 V AC-3); 22 kW 690 V AC-23A); 30 kW 500 V AC-23A); 18.5 kW 400 to 415 V AC-3); 18.5 kW 690 V AC-3); 15 kW 230 to 240 V AC-23A); 22 kW 400 to 415 V AC-23A)

IEC Terminal Connection Power circuit screw clamp terminals 0.04 inÃÂ² (25 mmÃÂ²) solid; Power circuit screw clamp terminals 0.02 inÃÂ² (16 mmÃÂ²) flexible - with cable end

Includes 320mm Extension Shaft, Door Interlock Plate, Handle, Line Terminal Shroud, Mounting Handle Operator

Intermittent Duty Class 30

Ip Degree Of Protection IP20 conforming to IEC 60529 || IP65

IP Rating IP20; IP65

Making Capacity 630 A 400 V AC-21A || 630 A 400 V AC-22A || 630 A 400 V AC-23A

Marking 0 - 1

Mechanical Durability 30000 cycles

Mechanical Robustness vibrations 10 to 150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27

Mounting Method By 4 screws handle; By clips switch; By screws switch

Mounting Style Rear Panel

Mounting Support handle door || switch symmetrical rail || switch plate

Network Type DC || AC

Number of Poles 3

Package Quantity 1

Performance Level high performance

Phase Three

Poles Description 3P

Product Certifications UL || CCC || GL || CSA || UKCA

Product Name TeSys VARIO

Product Or Component Type emergency stop switch disconnector

Protection Method Non-Fusible

Protective Treatment TC

Range TeSys

Rated Conditional Short Circuit Current 10 kA 400 V 63 A aM; 10 kA 400 V 63 A gG

Rated Conditional Short-Circuit Current 10 kA 400 V 63 A aM || 10 kA 400 V 63 A gG

Rated Operational Power In W 11 kW 230 to 240 V AC-3) || 22 kW 500 V AC-3) || 22 kW 690 V AC-23A) || 30 kW 500 V AC-23A) || 18.5 kW 400 to 415 V AC-3) || 18.5 kW 690 V AC-3) || 15 kW 230 to 240 V AC-23A) || 22 kW 400 to 415 V AC-23A)

Resistance Properties Fire-Resistant

Rotary Handle Mounting Style extended

Rotary Handle Padlocking 1 to 3 padlocks 4-8 mm

Shaft Length 13 in

Standards CCC, CSA Certified, GL, IEC 60947-3, UKCA, UL Listed

Suitability For Isolation yes

Tightening Torque power circuit 4-4 N.m screw clamp terminals

Voltage 690V AC

Voltage Rating 690V AC

Width 2 1/4 in

[Icm] Rated Short-Circuit Making Capacity 2.1 kA 400 V at Ipeak

[Icw] Rated Short-Time Withstand Current 756 A 400 V 1 s
