Home / Enclosed Disconnect Switch, 20 A, 690V AC, 3 pole

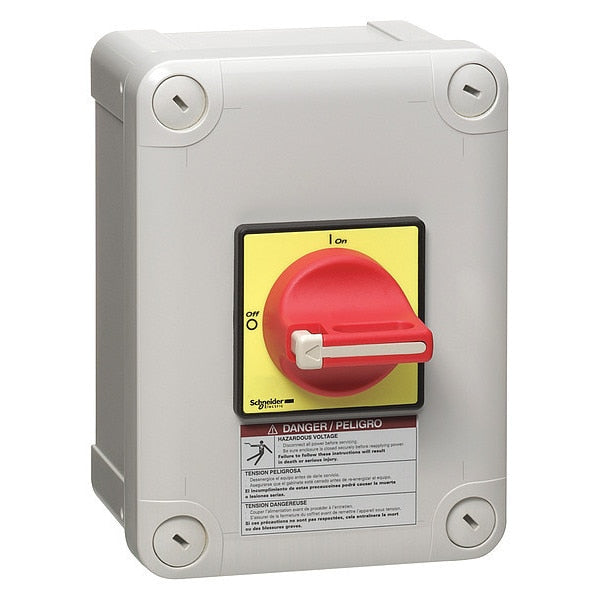

Enclosed Disconnect Switch, 20 A, 690V AC, 3 pole

Enclosed Disconnect Switch, 20 A, 690V AC, 3 pole

  • Square D
  • Enclosed Switch/20 Ampere, Actuator Style - Limit Switch Rotary, Body Height - Limit Switch 6.46 in, Body Width - Limit Switch 4.76 in, Body Depth - Limit Switch 5.2 in, NEMA Rating 12, Electrical Connection Screw Clamp Terminals, IP Rating 65, Special Features 3-Pole, Red Handle, Padlockable

    graingerSKU: 48P673, mscSKU: 69678167, zoro_no: G0561316, mongo_id: 65bbe6593aaddbd5a9023075

Web Price
$284.99 / each
Qty

Product Details

Rotary
-20-50°C
20 A
60 x 60 mm
Rotary
5.2 in
6.46 in
4.76 in
250 A 400 V AC-21A) || 250 A 400 V AC-22A) || 250 A 400 V AC-23A)
Class-1 RK1 (CSA HRC1-R) Time Delay Fuse, Class-II J (CSA HRC1-J) or Class T (CSA HRC1-T) Fuse
screw clamp terminals 10-10 mm² solid - with cable end || screw clamp terminals 6-6 mm² flexible
rotary handle
25 A
25.0 A IEC 690 V; 20 A UL 600 V
Czechia
132 mm
VC-GUN
Screw Clamp Terminals
100000 cycles AC-21 || 30000 cycles DC-1...5
standard environment
960°C IEC 60595-2-1
red
yellow
164 mm
30
IP65 conforming to IEC 60529
65
General Purpose Limit Switch
320 A 400 V AC-21A || 320 A 400 V AC-22A || 320 A 400 V AC-23A
0 - 1
100000 cycles
vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
(4) 0.17 in Dia
NEMA 12
12
3
-4 Degrees to 122 Degrees F
1
high performance
3P
TeSys VARIO
enclosed emergency stop switch disconnector
TC
TeSys
10 kA 400 V 35 A aM; 10 kA 400 V 35 A gG
10 kA 400 V 35 A aM || 10 kA 400 V 35 A gG
11 kW 400 V AC-23) || 7.5 kW 400 V AC-3)
5 hp 240 V, UL || 10 hp 480 V, UL || 10 hp 600 V, UL
1 to 3 padlocks 4-8 mm
3-Pole, Red Handle, Padlockable
CSA Certified C22.2 No 14, IEC 60204, IEC 60947-4-1, RoHS Compliant, UL 508
yes
2.1-2.1 N.m screw clamp terminals
690V AC
121 mm
1 kA 400 V at Ipeak
384 A 400 V 1 s
21.8 A AC-23A)400 V
25 A, 25.0 A IEC 690 V || 20 A UL 600 V
690 V AC 50/60 Hz
8 kV
