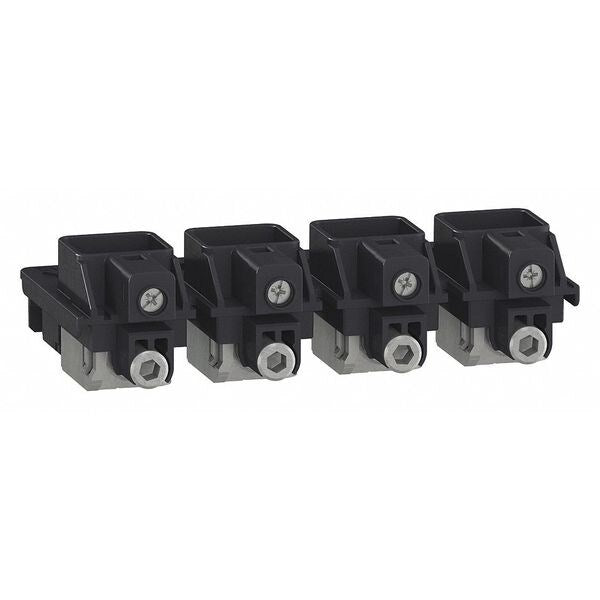

Everlink Lug with Control Wire Tap Kit

SKU
Brand Square D
Categories
Description EverLink Lug Kit, Amps 100(Al)/125(Cu), Mounting Location Breaker, Number of Lugs Included 1, Number of Poles 4, Max. Wire Size 2/0 AWG (fine stranded), 3/0 AWG (stranded), Min. Wire Size 14 AWG, 6 AWG, Includes (1) Control Wire Tap Kit, (1) EverLink Lug Connector Kit, For Use With Powerpact(R) B Circuit Breakers
graingerSKU: 482J07, mscSKU: , zoro_no: G6525388, mongo_id: 65bbe6a03aaddbd5a90407e9

Web Price

$154.99 / each

Qty

Product Details

Accessory / Separate Part Type connection accessories

Accessory Type EverLink Lug Kit

Amps 100(Al)/125(Cu)

Conductor Material steel

Connections - Terminals screw terminal - 1 2.5-95 mm2ÃÂ² AWG 14...AWG 3/0) - solid || screw terminal 2.5-95 mm2ÃÂ² AWG 14...AWG 3/0) - stranded || screw terminal 2.5-70 mm2ÃÂ² AWG 6...AWG 2/0) - fine stranded

Country of Origin (subject to change) Mexico

Current Of Common 10 A 0.5-6 mm2ÃÂ² AWG 20...AWG 10), stranded or fine stranded || 10 A 1.5-6 mm2ÃÂ² AWG 20...AWG 10), rigid

Device Short Name connectors

For Use With Powerpact(R) B Circuit Breakers

Includes (1) Control Wire Tap Kit, (1) EverLink Lug Connector Kit

Line Rated Current 15-125 A copper || 15-100 A aluminium

Location Of Connection downstream || upstream

Max. Wire Size 2/0 AWG (fine stranded), 3/0 AWG (stranded)

Min. Wire Size 14 AWG, 6 AWG

Number of Lugs Included 1

Number of Poles 4

Package Quantity 1
