Home / Foundry Duty Limit Switch, No Lever, Rotary, SPDT, 20A @ 600V AC

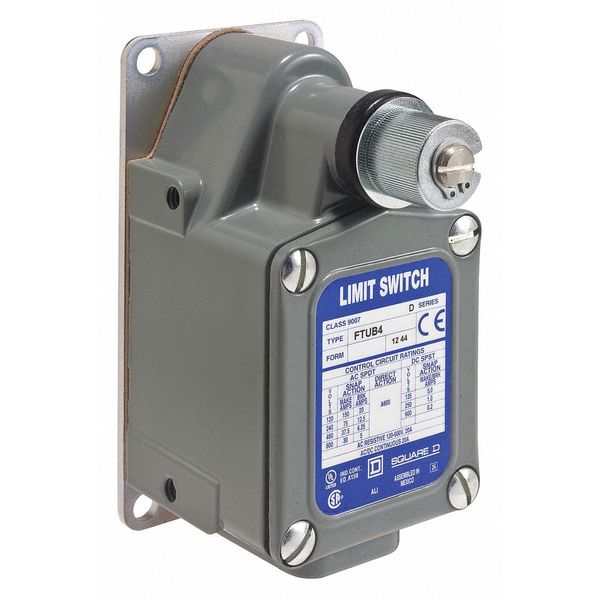

Foundry Duty Limit Switch, No Lever, Rotary, SPDT, 20A @ 600V AC

Foundry Duty Limit Switch, No Lever, Rotary, SPDT, 20A @ 600V AC

  • Square D
  • Foundry Duty Limit Switch, Actuator Style - Limit Switch No Lever, Rotary, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 20A @ 600V, DC Contact Rating - Limit Switch Not Rated, Contact Form- Switches SPDT, Body Height - Limit Switch 4.66 in, Body Width - Limit Switch 2.25 in, Body Depth - Limit Switch 2.44 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 1, 12, 13, 2, 4, Mounting - Limit Switch Surface

    graingerSKU: 34UJ54, mscSKU: 69658573, zoro_no: G9109965, mongo_id: 65bbe7253aaddbd5a9078f18

Web Price
$697.49 / each
Qty

Product Details

20A @ 600V
20A @ 600V
CW || from left
Top
Top
Top
Rotary Head
Rotary, No Lever
No Lever, Rotary
20
Rotary
Rotary
2.44 in
4.66 in
Cast Zinc
Standard
Standard
2.25 in
No
No
UL Listed, CSA Certified, CE Marked
snap action
SPDT
SPDT
SPDT
silver flashed copper
Multiple
Not Rated
Not Rated
3.41
Screw Terminals, 22 AWG
rotary head
4.66
67
Foundry Duty Limit Switch
130 ft/min with 30° cam angle, levers only || 90 ft/min with 45° cam angle, levers only
Surface
(4) 0.26 in dia
4 Hole Rectangular
4.22 in x 1.81 in
CW
1, 12, 13, 2, 4
1
12.0 in-lb
-10 Degrees to 185 Degrees F
1
Not eligible for promotion
5SY4
30 gn 9 ms IEC 60068-2-27
20 A Bussmann class CC KTK-R-21 fuse non-time delay
Withstands 300 Degrees Falling Sand
CCN, CSA Certified, File E42259, NKCR, UL Listed
No Stem
Total Travel 88 Degrees
spring return without operating lever
10 gn 10-55 Hz)IEC 60068-2-6
600VAC
2.5 lb(US)
2.25
1/2 in NPT
