Home / Fuse Block, Midget and CC Class, 30A, 3 Pol

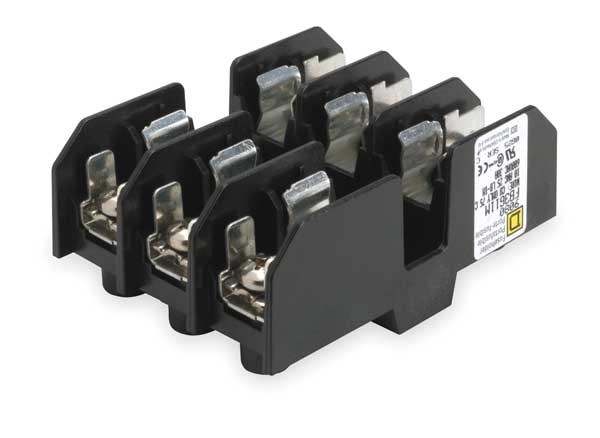

Fuse Block, Midget and CC Class, 30A, 3 Pol

Fuse Block, Midget and CC Class, 30A, 3 Pol

  • Square D
  • Fuse Block, Connection Type Pressure Plate, For Fuse Length 1.5 in, For Fuse Type Class M, For Maximum Wire/Cable Size 10 AWG, For Minimum Wire/Cable Size 14 AWG, Fuse Block Design Open, Housing Material Thermoplastic, Maximum Current 30 A, Maximum Operating Temperature 257 Degrees F, Maximum Voltage 600 V, Minimum Operating Temperature -40 Degrees F, Mounting Style Bolt Down, Number of Poles 3, Overall Depth 1.29 in, Overall Length 1.3 in, Overall Width 2.35 in, RoHS Compliant Yes

    graingerSKU: , mscSKU: , zoro_no: G1508324, mongo_id: 65bbe5fa3aaddbd5a9ffc2bc

Web Price
$25.44 / each
Qty

Product Details

0 to 30A
Thermoplastic: block
Thermoplastic
Pressure Plate
United States
1.29 in (32.77 mm)
Pressure wire clamp
Mercury Free; screw terminals 25 lbf.in AWG 14...AWG 10 copper
1.5 in
M
1-1/2 L x 13/32 dia.
Class M
10 AWG
14 AWG
Open
Fuse Block
600VAC
Not Rated
0.4063 x 1.5 in
Midget
Midget
3.12
Thermoplastic
1.3 in
1.3 in
30 A
257 Degrees F
600 V
-40 Degrees F
Bolt Down
Surface mount
3
-40 to 257°F (-40 to 125°C)
1.29 in
1.3 in
2.35 in
1
UL recognized E40747 CCN IZLT2; CSA file 70360 class 6225 01; CE
Less than or Equal to 600 V AC/DC
Yes
9080
100 kA UL 512
Mercury Free, Toxic Heavy Metal Free, Warranty 18 Months
CE Certified, CSA 70360, UL E40747
screw terminals 25 lbf.in (2.82 N.m) AWG 14 to AWG 10 copper
600 V AC/DC
2.72
AWG 14 to AWG 10 copper or aluminium
4 AWG to 500 MCM
0.4375 in (11.11 mm)
