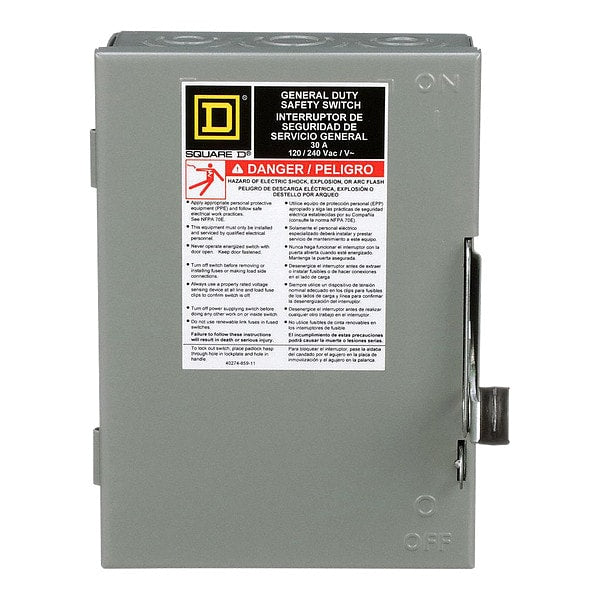

Fusible Safety Switch, General Duty, 240V AC, 2PST, 30 A, NEMA 1

SKU
Brand Square D
Categories
Description Safety Switch, Contact Form DPST, Current Rating 30 A, Depth 3 3/4 in, Duty Standard, Enclosure Type Enclosed, Environment Indoor, For Fuse Class Class H, Height 9 1/4 in, Horsepower @ 240V AC 7 1/2 hp, Housing Material Steel, IP Rating IP20, Mounting Style Surface Mount, NEMA Enclosure Rating 1, Neutral Assembly Included Yes
graingerSKU: 1H246, mscSKU: 69668754, zoro_no: G1454537, mongo_id: 65bbe6c73aaddbd5a905208a

Web Price

$90.96 / each

Qty

Product Details

Amps AC 30 A

Certifications UL listed file E2875

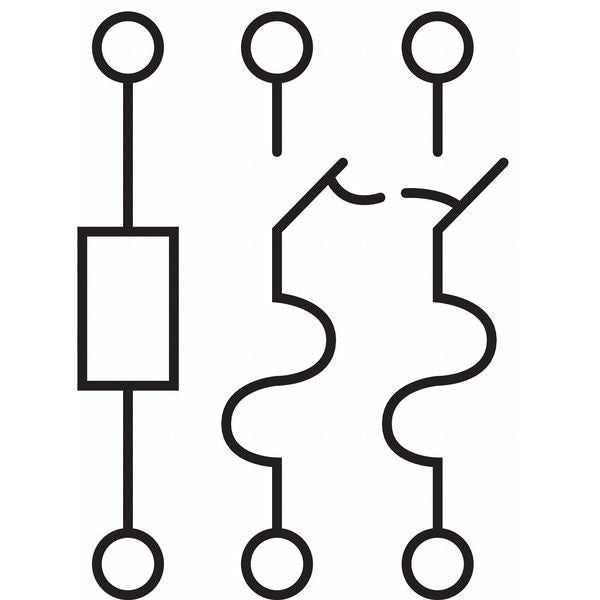

Contact Form 2PST

Country of Origin (subject to change) Mexico

Current Rating 30 A

Current Type AC

Depth 3.6 in

Device Application Residential

Disconnect Type Fusible disconnect switch

Duty General

Duty Rating General duty

Electrical Connection Lugs

Enclosure Depth Less than 6 inches

Enclosure Height 0 to 9 3/4 inches

Enclosure Material Galvanized Steel

Enclosure Rating NEMA NEMA 1

Enclosure Type Enclosed

Enclosure Width 0 to 9 3/4 inches

Environment Indoor

Extra Features Neutral Assembly

Factory Installed Neutral Neutral/earth strip 2 x 16 mmÃÂ² 5 x 6 mmÃÂ²

Features Mercury Free, PVC Free

For Fuse Class Class H

For Use With Plug Style Fuse

Fuse Type Plug

Fusible / Nonfusible Fusible

Gauge/Conductor 12 to 6 AWG (Aluminum), 14 to 6 AWG (Copper)

Height 9.2 in

Horsepower @ 240V AC 7 1/2 hp

Housing Material Steel

HP_ 3 hp @ 240V AC

Includes Neutral Assembly Yes

IP Rating 20

Material of Construction Steel

Metallic / Non-Metallic Metallic

Motor Power HP 0.5 hp at 120 V AC 60 Hz for 1 phase motors; 2 hp at 120 V AC 60 Hz for 1 phase motors; 1.5 hp at 240 V AC 60 Hz for 1 phase motors; 3 hp at 240 V AC 60 Hz for 1 phase motors

Mounting Surface

Mounting Style Surface Mount

NEMA Enclosure Rating 1

NEMA Enclosure Type 1

Neutral Assembly Included Yes

Number of Poles 2

Number of Wires 3

Package Quantity 1

Phase 1

Protection Method Fusible

Short Circuit Current Rating 10 kA plug

Standards UL listed
