Home / Fusible Safety Switch, Heavy Duty, 600V AC, 3PST, 400 A, NEMA 12, 3, 3R, 4, 4X

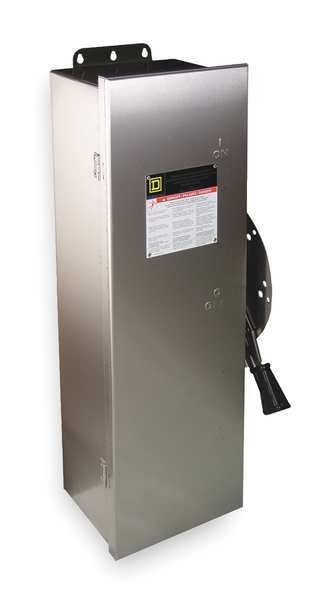

Fusible Safety Switch, Heavy Duty, 600V AC, 3PST, 400 A, NEMA 12, 3, 3R, 4, 4X

SKU
Brand Square D
Categories
Description Safety Switch, Compatible with Manufacturer Model Number HRK4060, Contact Form 3PST, Current Rating 400 A, Depth 10 1/4 in, Duty Heavy Duty, Environment Indoor/Outdoor, For Fuse Class Class H, Class J, Class K, Class R, Fuse Kit (Class R) Mfr. No. HRK4060, Height 46 1/4 in, Horsepower @ 480V AC 100 hp, Horsepower @ 600V AC 350 hp, Housing Material 304 Stainless Steel, IP Rating Not Rated, Mounting Style Surface Mount, NEMA Enclosure Rating 4, 4X, 5, Neutral Assembly Included Yes
graingerSKU: 2JYH1, mscSKU: , zoro_no: G0471073, mongo_id: 65bbea5e22d7a989a99ae85d

Web Price

$16,358.74 / each

Qty

Product Details

Amps AC 400 A

Certifications UL listed file E2875

Compatible Manufacturer Part Number HRK4060

Compatible with Manufacturer Model Number HRK4060

Compatible with Manufacturer Model Number [NEW] HRK4060

Compatible with Manufacturer Part Number HRK4060

Contact Form 3PST

Country of Origin (subject to change) Mexico

Current Rating 400 A

Current Type AC

Depth 11 in

Device Application Heavy application

Disconnect Type Fusible disconnect

Duty Heavy

Duty Rating Heavy duty

Electrical Connection Lugs

Enclosure Depth 6 - 12 inches

Enclosure Height 30 inches and larger

Enclosure Material 304 Stainless Steel

Enclosure Rating NEMA 4/4X/5 stainless steel 304

Enclosure Width 20 to 29 3/4 inches

Environment Indoor/Outdoor

Extra Features Neutral Assembly

Factory Installed Neutral Neutral (factory installed)

Features Mercury Free, PVC Free

For Fuse Class Class H, Class J, Class K, Class R

For Use With Class R Fuse

Fuse Kit (Class R) Mfr. No. HRK4060

Fuse Type Class H, K, R or J

Fusible / Nonfusible Fusible

Gauge/Conductor 1/0 AWG to 750 kcmil

Height 32 in

Horsepower @ 480V AC 100 hp

Horsepower @ 600V AC 350 hp

Housing Material 304 Stainless Steel

HP_ 250 hp @ 600V AC

Includes Neutral Assembly Yes

IP Rating Not Rated

Material of Construction 304 Stainless Steel

Metallic / Non-Metallic Metallic

Motor Power HP 100 hp at 480 V AC 50-60 Hz for 3 phase motors; 250 hp at 480 V AC 50-60 Hz for 3 phase motors; 125 hp at 600 V AC 50-60 Hz for 3 phase motors; 350 hp at 600 V AC 50-60 Hz for 3 phase motors; 50 hp at 250 V DC; 50 hp at 600 V DC

Mounting Surface

Mounting Style Surface Mount

NEMA Enclosure Rating 4, 4X, 5

NEMA Enclosure Type 12, 3, 3R, 4, 4X

Neutral Assembly Included Yes

Number of Poles 3

Number of Wires 4

Package Quantity 1

Phase 3

Protection Method Fusible

Short-Circuit Current 10 kA for H or K; 200 kA for R or J

Standards UL listed
