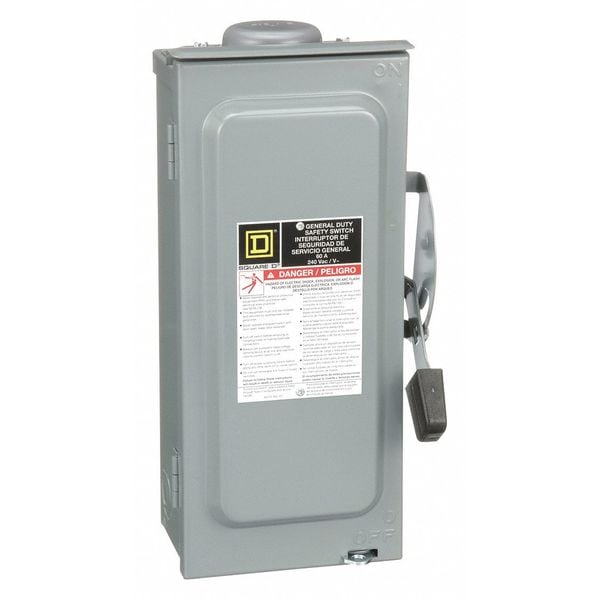

Fusible Single Throw Safety Switch, General Duty, 240V AC, 2PST, 60 A, NEMA 3R

SKU
Brand Square D
Categories
Description Safety Switch, Compatible with Manufacturer Model Number RFK03L, Contact Form DPST, Current Rating 60 A, Depth 4 3/4 in, Duty Standard, Enclosure Type Enclosed, Environment Indoor/Outdoor, For Fuse Class Class H, Class K, Class R, Fuse Kit (Class R) Mfr. No. RFK03H, Height 15 in, Horsepower @ 240V AC 15 hp, Housing Material Steel, IP Rating IP14, Mounting Style Surface Mount, NEMA Enclosure Rating 3R, Neutral Assembly Included Yes
graingerSKU: 1H250, mscSKU: 69525046, zoro_no: G0662986, mongo_id: 65bbe86b22d7a989a98f4095

Web Price

$329.46 / each

Qty

Product Details

Amps AC 60 A

Certifications UL listed file E2875

Compatible Manufacturer Part Number RFK03L

Compatible with Manufacturer Model Number RFK03L

Compatible with Manufacturer Model Number [NEW] RFK03L

Compatible with Manufacturer Part Number RFK03L

Contact Form 2PST

Country of Origin (subject to change) United States

Current Rating 60 A

Current Type AC

Depth 4.9 in

Device Application Residential

Disconnect Type Fusible disconnect switch

Duty General

Duty Rating General duty

Electrical Connection Lugs

Enclosure Depth Less than 6 inches

Enclosure Height 10 to 19 3/4 inches

Enclosure Material Galvanized Steel

Enclosure Rating NEMA NEMA 3R

Enclosure Type Enclosed

Enclosure Width 0 to 9 3/4 inches

Environment Indoor/Outdoor

Extra Features Neutral Assembly

Factory Installed Neutral Neutral (factory installed)

Features Mercury Free, PVC Free

For Fuse Class Class H, Class K, Class R

For Use With Class H, K, R, T Fuse

Fuse Kit (Class R) Mfr. No. RFK03L

Fuse Type Class H, K, or R

Fusible / Nonfusible Fusible

Gauge/Conductor 12 to 3 AWG (Aluminum), 14 to 3 AWG (Copper)

Height 14.9 in

Horsepower @ 240V AC 15 hp

Housing Material Steel

HP_ 10 hp @ 240V AC

Includes Neutral Assembly Yes

IP Rating 14

Material of Construction Galvannealed Steel

Metallic / Non-Metallic Metallic

Motor Power HP 1.5 hp at 120 V AC 60 Hz for 1 phase motors; 3 hp at 120 V AC 60 Hz for 3 phase motors; 3 hp at 240 V AC 60 Hz for 1 phase motors; 7.5 hp at 240 V AC 60 Hz for 3 phase motors; 10 hp at 240 V AC 60 Hz for 1 phase motors; 15 hp at 240 V AC 60 Hz for 3 phase motors

Mounting Surface

Mounting Style Surface Mount

NEMA Enclosure Rating 3R

NEMA Enclosure Type 3R

Neutral Assembly Included Yes

Number of Poles 2

Number of Wires 3

Package Quantity 1

Phase 1

Protection Method Fusible

Short Circuit Current Rating 100 kA maximum depending on fuse H, K or R

Standards UL listed

Tightening Torque 35 lbf.in (3.95 N.m) 0.00 to 0.01 inÃÂ² (2.08 to 5.26 mmÃÂ²) (AWG 14 to AWG 10); 35 lbf.in (3.95 N.m) (AWG 14 to AWG 10); 45 lbf.in (5.08 N.m) 0.01 inÃÂ² (8.37 mmÃÂ²) (AWG 8); 45 lbf.in (5.08 N.m) 0.02 to 0.03 inÃÂ² (12.3 to 21.12 mmÃÂ²) (AWG 6 to AWG 4); 50 lbf.in (5.65 N.m) 0.04 inÃÂ² (26.67 mmÃÂ²) (AWG 3)

UL 98 Certification Yes

UL Fuse Class H, K, R

Voltage 240V AC

Voltage Rating 240 V AC

Weight 4 kg

Width 7.5 in

Wire Size AWG 12 to AWG 3 aluminium; AWG 14 to AWG 3 copper

Wiring Configuration 3-wire
