Home / Hazardous Location Limit Switch, No Lever, Rotary, 2NC/2NO

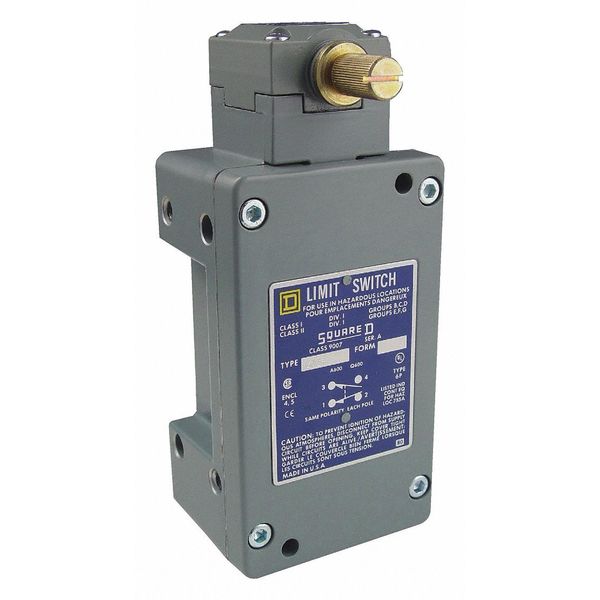

Hazardous Location Limit Switch, No Lever, Rotary, 2NC/2NO

SKU
Brand Square D
Categories
Description Limit Switch 600V 10Amp C +Options
graingerSKU: 48L282, mscSKU: , zoro_no: G0560835, mongo_id: 65bbe79a3aaddbd5a90a3f96

Web Price

$544.99 / each

Qty

Product Details

AC Contact Rating - Limit Switch 10A @ 600V

Actuation Type from left and right || CW and CCW

Actuator Location - Limit Switch Top

Actuator Style - Limit Switch No Lever, Rotary

Amps 10

Basic Actuator Style - Limit Switch Rotary

Body Depth - Limit Switch 2.79 in

Body Height - Limit Switch 6.1in

Body Material aluminium, metal

Body Style (Limit Switch) fixed

Contact Action snap action

Contact Form Form Z

Contact Form- Switches 2NC/2NO

Contact Material silver contacts

Country of Origin (subject to change) Mexico

Electrical Connection screw-clamp terminals AWG 22...AWG 12), 1-2

Electrical Durability 1000000 cycles

Head Material zinc

Head Type rotary head

IP Rating IP67 conforming to IEC 60529

Mechanical Durability 10000000 cycles

Min. Actuation Velocity Horizontal 90 ft/min with 45ÃÂ° cam angle, levers only || 130 ft/min with 30ÃÂ° cam angle, levers only

Movement rotary

NEMA Rating NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250

Number Of Poles 2

Operating Temp. Range -20-185 ÃÂ°F hazardous location

Package Quantity 1

Promotion Restriction Not eligible for promotion

Series 9007CR

Shock Resistance 60 gn 9 ms IEC 60068-2-27

Short Circuit Protection 10 A CC non-time delay

Special Features lateral approach, 2 directions

Standards 2.5 kV AC 1 min CE || 2.2 kV AC 1 min UL || 2.64 kV AC 1 s CSA

Type Of Operator zinc spring return without operating lever 9007C lever

Vibration Resistance 25 gn 10-150 Hz)IEC 60068-2-6

Weight 2.5 lb(US)
