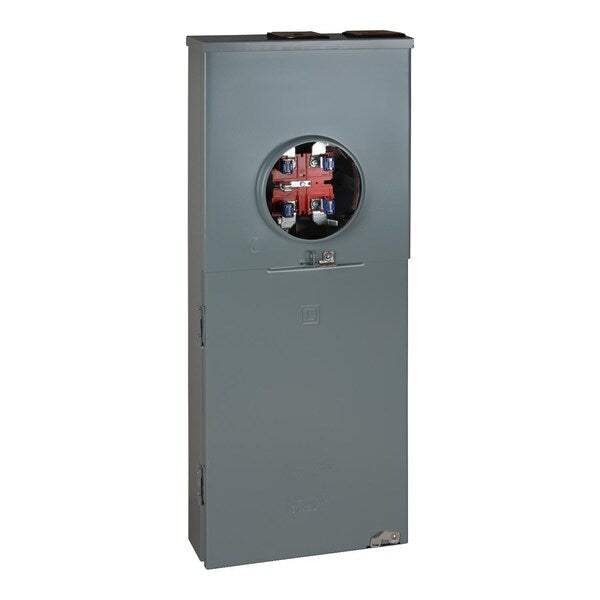

Homeline All In One, combination service, 100 A; 100 A Amps, Homeline Circuit Breaker Type

SKU
Brand Square D
Categories
Description Homeline All In One,combination service
graingerSKU: , mscSKU: , zoro_no: G3298982, mongo_id: 65bbe8979a749db82279d0ff

Web Price

$1,528.74 / each

Qty

Product Details

Amps 100 A; 100 A

Bypass Type horn bypass

Circuit Breaker Type Homeline

Country of Origin (subject to change) Mexico

Depth 4.67 in

Electrical Connection lugs line side || feed-thru lugs service ground

Ground Bar Kit service disconnect (factory installed)

Height 35.13 in

Hub type A

Max. No. of Tandem Breakers 8

Meter Socket Type ringless

Mounting Style surface

Number Of Circuits 16

Number Of Spaces 8

Package Quantity 1

Phase 1

Service Disconnect Rated Current 100 A

Short Circuit Current Rating 22 kA

Standards UL E-6294

Tightening Torque main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper || service ground 50 lb.in, AWG 14...AWG 2/0, copper || service ground 50 lb.in, AWG 12...AWG 2/0, aluminium || branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper || branch lugs 25 lb.in, AWG 8, aluminium/copper || branch lugs 20 lb.in, AWG 14...AWG 10, copper || branch lugs 20 lb.in, AWG 12...AWG 10, aluminium || Cover 10 lb.in

Width 14.37 in

Wire Size AWG 6...350 kcmil aluminium/copper)line side || AWG 12...AWG 2/0 aluminium/copper)service ground
