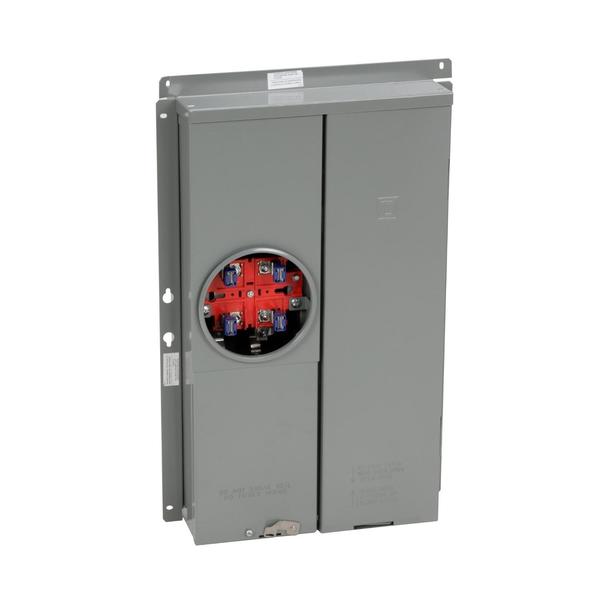

Homeline All In One combination service, 100 A; 100 A Amps, Homeline Circuit Breaker Type

SKU
Brand Square D
Categories
Description Homeline All In One combination service

Web Price

$969.99 / each

Qty

Product Details

Amps 100 A; 100 A

Bypass Type no bypass

Circuit Breaker Type Homeline

Country of Origin (subject to change) Mexico

Depth 3.39 in

Electrical Connection lugs line side || lugs service ground

Ground Bar Kit service disconnect (factory installed)

Height 25.12 in

Hub type B300 || A

Max. No. of Tandem Breakers 8

Meter Socket Type ringed

Mounting Style semi flush

Number Of Circuits 24

Number Of Spaces 16

Package Quantity 1

Service Disconnect Rated Current 100 A

Short Circuit Current Rating 10 kA

Tightening Torque main lugs 50 lb.in, AWG 6...AWG 2/0, aluminium/copper || service ground 50 lb.in, AWG 6...AWG 2/0, aluminium/copper || branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper || branch lugs 25 lb.in, AWG 8, aluminium/copper || branch lugs 20 lb.in, AWG 14...AWG 10, aluminium/copper || branch lugs 20 lb.in, AWG 12...AWG 10, aluminium/copper || Cover 10 lb.in

Width 14.50 in

Wire Size AWG 6...AWG 2/0 aluminium)line side || AWG 6...AWG 2/0 copper)line side || AWG 6...AWG 2/0 aluminium)service ground || AWG 6...AWG 2/0 copper)service ground
