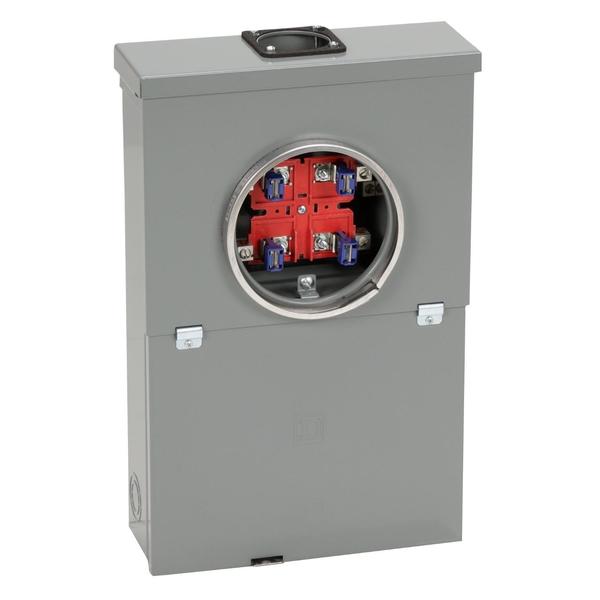

Homeline All In One combination service, 100 A; 80 A Amps, Homeline Circuit Breaker Type

SKU
Brand Square D
Categories
Description Homeline All In One combination service
graingerSKU: , mscSKU: , zoro_no: G3301152, mongo_id: 65bbe65d3aaddbd5a90259e6

Web Price

$581.24 / each

Qty

Product Details

Amps 100 A; 80 A

Bypass Type no bypass

Circuit Breaker Type Homeline

Country of Origin (subject to change) Mexico

Depth 4.56 in

Electrical Connection lugs line side || lugs service ground

Enclosure NEMA Rating NEMA 3R

Ground Bar Kit service disconnect (factory installed)

Height 20.79 in

Hub type A

Max. No. of Tandem Breakers 10

Meter Socket Type ringed

Mounting Style surface

Number Of Circuits 20

Number Of Spaces 10

Package Quantity 1

Service Disconnect Rated Current 100 A

Short Circuit Current Rating 10 kA

Standards UL Listed

Tightening Torque main lugs 50 lb.in, AWG 6...AWG 1, aluminium/copper || branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper || branch lugs 25 lb.in, AWG 8, aluminium/copper || branch lugs 20 lb.in, AWG 14...AWG 10, aluminium/copper || branch lugs 20 lb.in, AWG 12...AWG 10, aluminium/copper || Cover 10 lb.in

Width 13.46 in

Wire Size AWG 6...AWG 1 aluminium/copper)line side || AWG 8...AWG 4 aluminium/copper)service ground
