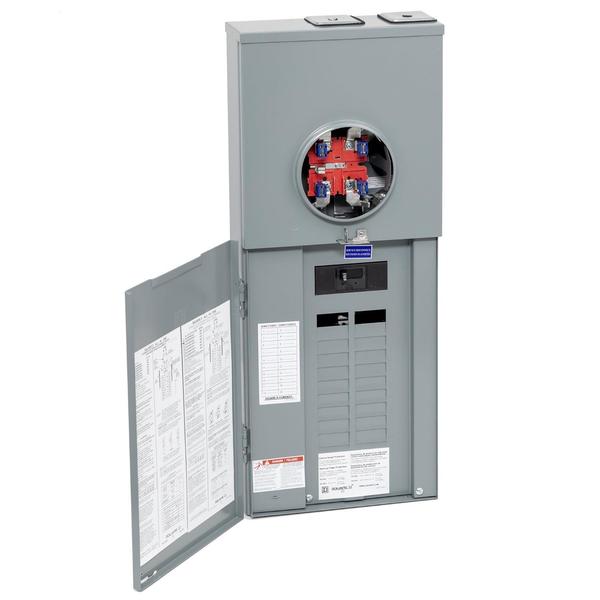

Homeline All In One, combination service, 200 A; 200 A Amps, Homeline Circuit Breaker Type

SKU
Brand Square D
Categories
Description Homeline All In One,combination service

Web Price

$2,069.99 / each

Qty

Product Details

Amps 200 A; 200 A

Bypass Type horn bypass

Circuit Breaker Type Homeline

Country of Origin (subject to change) Mexico

Depth 4.67 in

Electrical Connection lugs line side || lugs service ground

Ground Bar Kit service disconnect (factory installed)

Height 35.13 in

Hub type A

Max. No. of Tandem Breakers 20

Meter Socket Type ringless

Mounting Style surface

Number Of Circuits 40

Number Of Spaces 20

Package Quantity 1

Service Disconnect Rated Current 200 A

Short Circuit Current Rating 22 kA

Tightening Torque main lugs 250 lb.in, AWG 6...350 kcmil, aluminium/copper || service ground 50 lb.in, AWG 14...AWG 2/0, copper || service ground 50 lb.in, AWG 12...AWG 2/0, aluminium || branch lugs 50 lb.in, AWG 14...AWG 1/0, copper || branch lugs 50 lb.in, AWG 12...AWG 1/0, aluminium || branch lugs 35 lb.in, AWG 6...AWG 4, aluminium/copper || branch lugs 25 lb.in, AWG 8, aluminium/copper || branch lugs 20 lb.in, AWG 14...AWG 10, aluminium/copper || branch lugs 20 lb.in, AWG 12...AWG 10, aluminium/copper || Cover 10 lb.in

Width 14.37 in

Wire Size AWG 6...350 kcmil aluminium)line side || AWG 6...350 kcmil copper)line side || AWG 12...AWG 2/0 aluminium)service ground || AWG 12...AWG 2/0 copper)service ground
