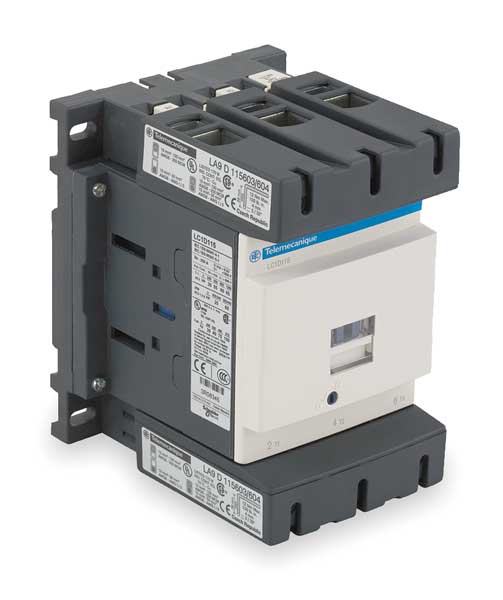

IEC Magnetic Contactor, 3 Poles, 24 V DC, 115 A, Reversing: No

SKU
Brand Square D
Categories
Description IEC Magnetic Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V DC, Number of Poles 3, Full Load Current - Inductive 115 A, Full Load Current - Resistive 200 A, Reversing Capability Non-Reversing, Overall Height 6.22 in, Overall Width 0.47 in, Terminal Connection Type Screw Clamp Terminals, Mounting Style DIN Rail, Plate, Series TeSys Deca, Number of Auxillary Contacts 2, Contactor Style IEC

Web Price

$771.24 / each

Qty

Product Details

Action Non-Reversing

Application Motor Control, Resistive Load

Aux. Contact Configuration 1NO/1NC

Auxiliary Contact Form 1NO/1NC

Coil Voltage 24V DC

Coil Volts 24 V DC

Contactor Style IEC

Control Circuit Voltage Limits Operational DC: 0.75 to 1.2 Uc (at -40 to 55ÃÂ°C), 1 to 1.2 Uc (at 55 to 70ÃÂ°C); Drop-Out DC: 0.15 to 0.4 Uc (at -40 to 70ÃÂ°C)

Country of Origin (subject to change) Czechia

Depth 5.12 in

Electrical Connection Screw Clamp Terminals

Electrical Durability 0.8 Mcycles (200 A, AC-1, Less than 440 V); 0.95 Mcycles (115 A, AC-3, Less than 440 V); 0.95 Mcycles (115 A, AC-3e, Less than 440 V)

Electrical Operating Durability 800,000, 950,000

Embedded Surge Suppressor Yes

Enclosure NEMA Rating No Enclosure

Environmental Attributes Mercury Free, PVC Free, Pollution Degree 3

Features With Integral Suppression Device

Fire Rating UL 94 V1

Frame / Series / Class / Code TeSys

Frequency 50/60 Hz

Full Load Amps-Inductive 115 A

Full Load Amps-Resistive 200 A

Full Load Current - Inductive 115 A

Full Load Current - Resistive 200 A

Fuse Amps 250 A (Type 1 Power Circuit), 200 A (Type 2 Power Circuit), 10 A (Signalling Circuit)

Height 4.33 in

Horsepower @ Single Phase - 240V AC 1 hp

Horsepower @ Three Phase - 208V AC 30 hp

Horsepower @ Three Phase - 240V AC 40 hp

Horsepower @ Three Phase - 480V AC 75 hp

Horsepower @ Three Phase - 600V AC 100 hp

HP @ 3 Phase - 208V 30 hp

HP @ 3 Phase - 240V 40 hp

HP @ 3 Phase - 480V 75 hp

HP @ 3 Phase - 575V 100 hp

Hz_ 50/60

Impedance 0.6 mOhm

Impulse Withstand Voltage 8 kV

Includes Auxiliary Contacts Yes

Includes Protective Cover Yes

Insulation Resistance Range Greater Than 10 MOhms (Signalling Circuit)

IP Rating IP20

Max. Operating Watts 30 kW (at 220 to 230V AC 50/60 Hz AC-3), 55 kW (at 380 to 400V AC 50/60 Hz AC-3), 59 kW 415 to (at 440V AC 50/60 Hz AC-3), 75 kW (at 500V AC 50/60 Hz AC-3), 80 kW (at 660 to 690V AC 50/60 Hz AC-3), 65 kW (at 1000V AC 50/60 Hz AC-3), 18.5 kW (at 400V AC 50/60 Hz AC-4), 30 kW (at 220 to 230V AC 50/60 Hz AC-3e), 55 kW (at 380 to 400V AC 50/60 Hz AC-3e), 59 kW 415 to (at 440V AC 50/60 Hz AC-3e), 75 kW (at 500V AC 50/60 Hz AC-3e), 80 kW (at 660 to 690V AC 50/60 Hz AC-3e), 65 kW (at 1000V AC 50/60 Hz AC-3e)

Max. Temperature 850ÃÂ°C

Maximum Operating Temperature 140 Degrees F

Maximum Voltage Rating 1000V AC

Mechanical Durability 8 Mcycles

Mechanical Operating Durability 8,000,000

Minimum Operating Temperature -40 Degrees F

Mounting Style DIN Rail, Plate

Mounts On Plate, Rail

NEMA Enclosure Material Not Applicable

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Net Weight 2.5 kg

Non-Overlap Time 1.5 ms

Number of Auxillary Contacts 2

Number of Normally Open Main Contacts 3

Number of Poles 3

Operating Speed 1200 cycles per hr

Operating Time 20 to 35 ms (Closing), 40 to 75 ms (Opening)

Overall Depth 5.35 in

Overall Height 6.22 in

Overall Width 0.47 in

Overvoltage Category CAT III

Package Quantity 1

Phase Three

Rated Breaking Capacity 1100 A @ 440V

Rated Insulation Volts 600/1000V (Power Circuit), 600/690V (Signalling Circuit)

Rated Making Capacity 1260 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)

Rated Short-Time Withstand Current 250 A (at 40ÃÂ°C for 10 min Power Circuit), 550 A (at 40ÃÂ°C for 1 min Power Circuit), 950 A (at 40ÃÂ°C for 10 s Power Circuit), 1100 A (at 40ÃÂ°C for 1 s Power Circuit), 100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit)

Rated Voltage 1000V AC, 300V DC

Resistance Properties Fire Resistant, Insulation Resistant

Reversing No

Reversing Capability Non-Reversing

Series TeSys Deca

Shock Resistance 15 G for 11 ms (Contactor Closed), 6 G for 11 ms (Contactor Open)

Signalling Circuit Frequency 25 to 400 Hz

Standards BV, CCC, CSA, CSA C22.2 No 14, DNV, EN 60947-4-1, EN 60947-5-1, GL, GOST, IEC 60947-4-1, IEC 60947-5-1, LROS, RINA, UKCA, UL 508, UL Listed

Switching Current 5 mA (Signalling Circuit)

Switching Voltage 17 V (Signalling Circuit)

Terminal Connection Type Screw Clamp Terminals

Thermal Amperage 200 A (at 60ÃÂ°C Power Circuit)
